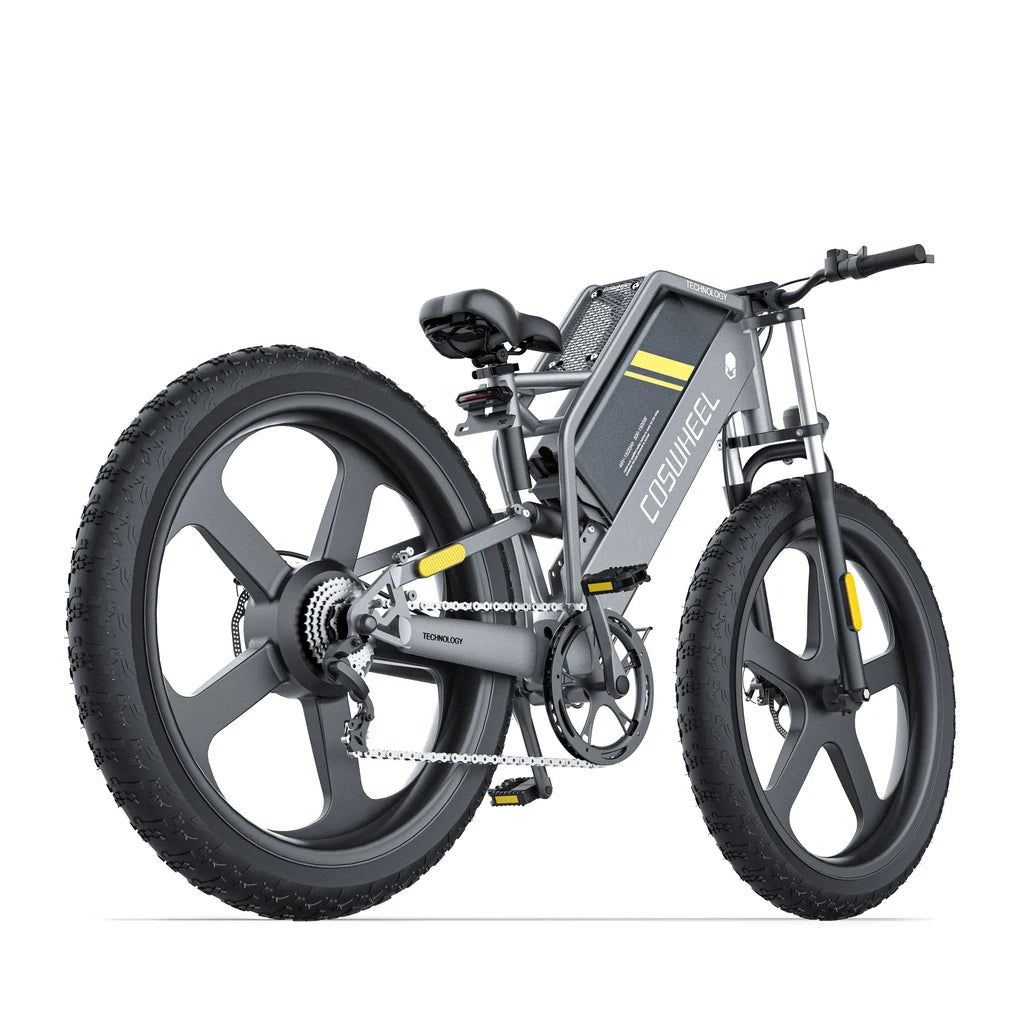

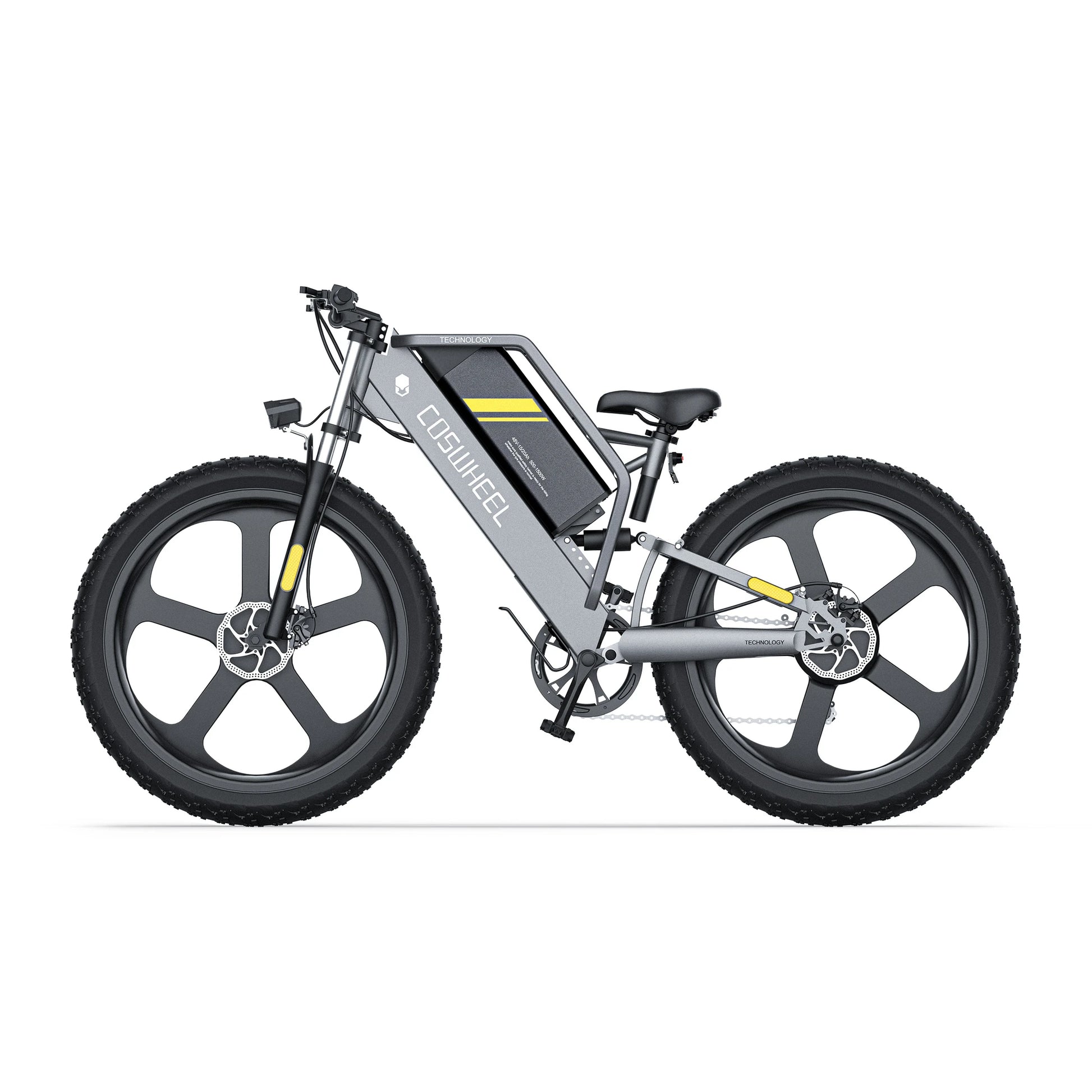

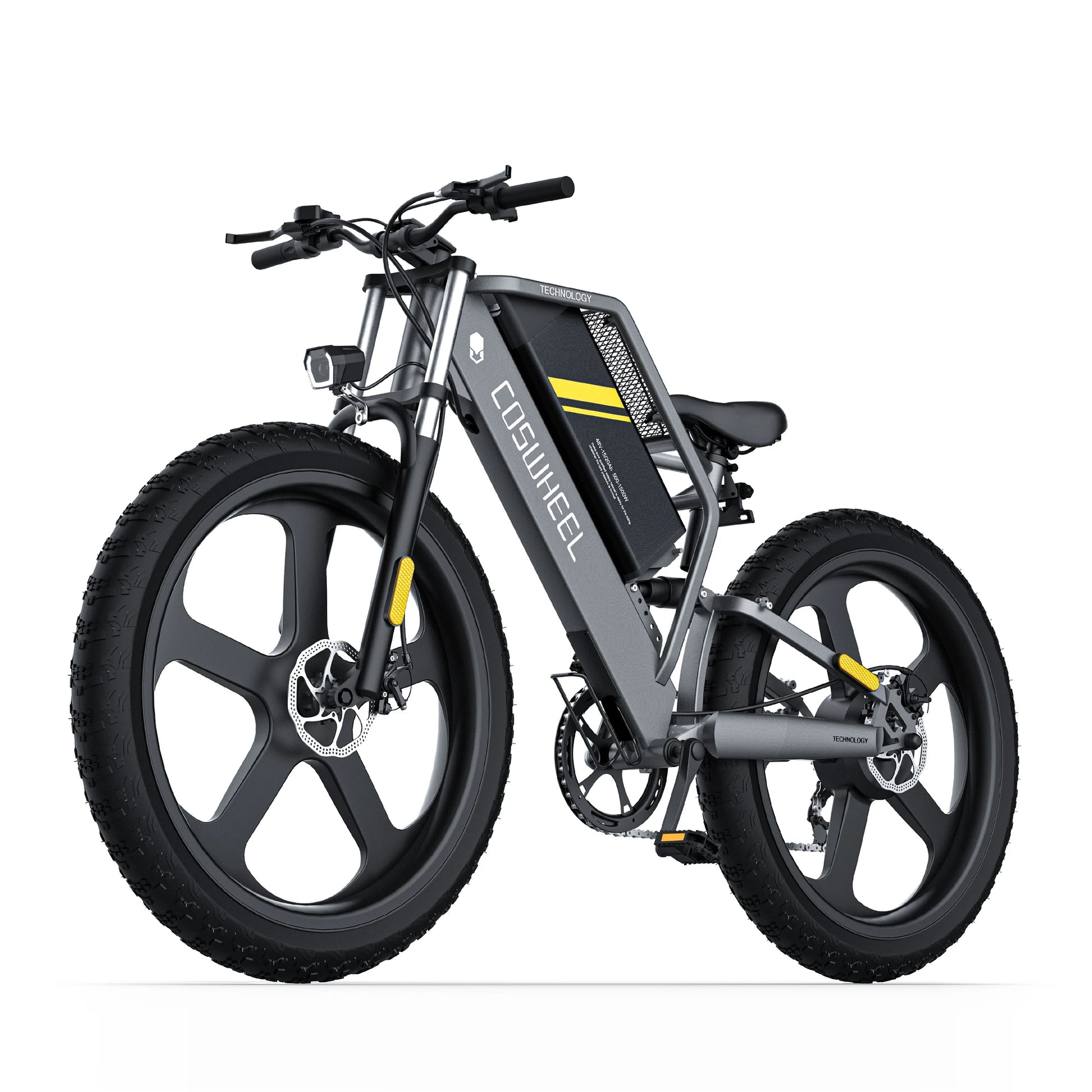

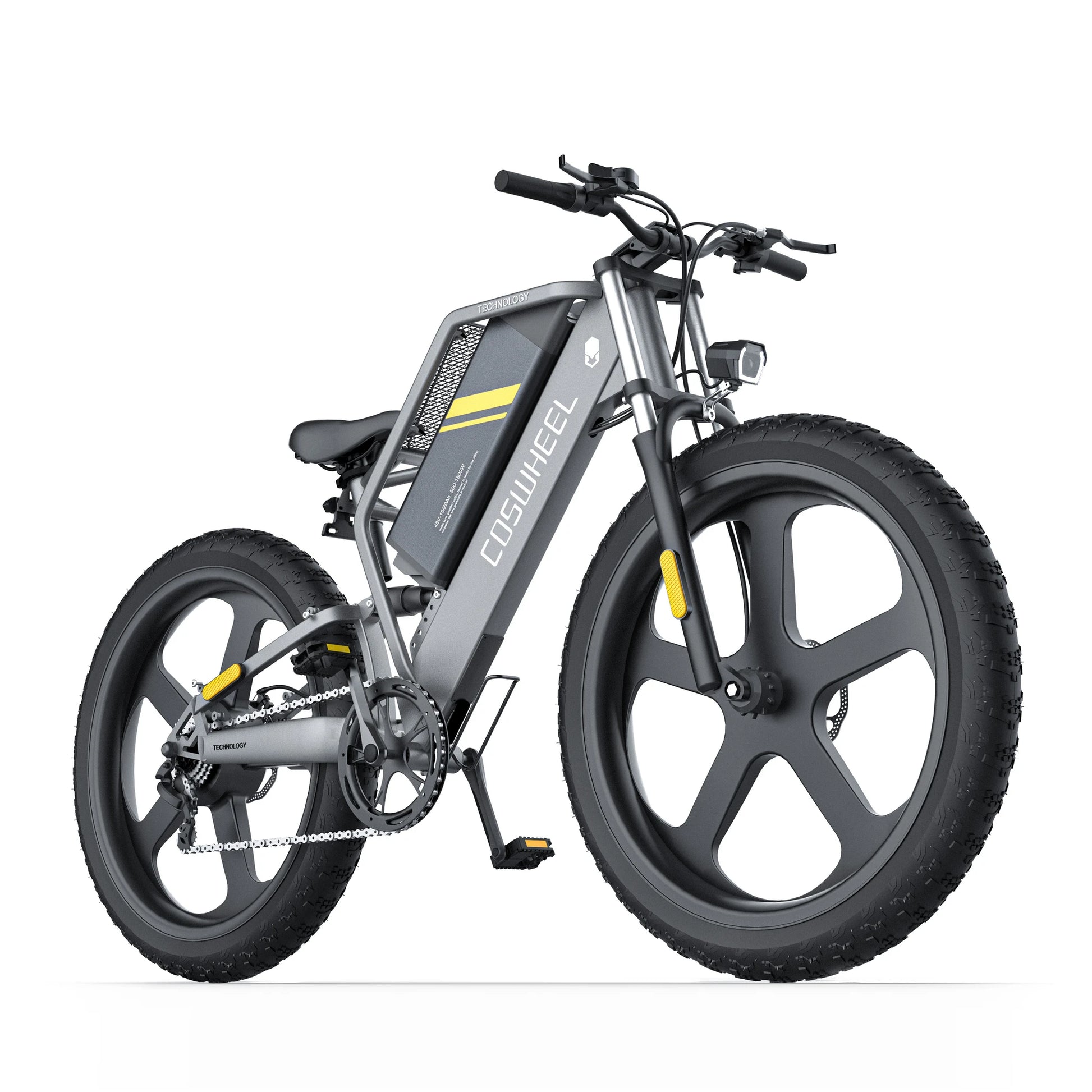

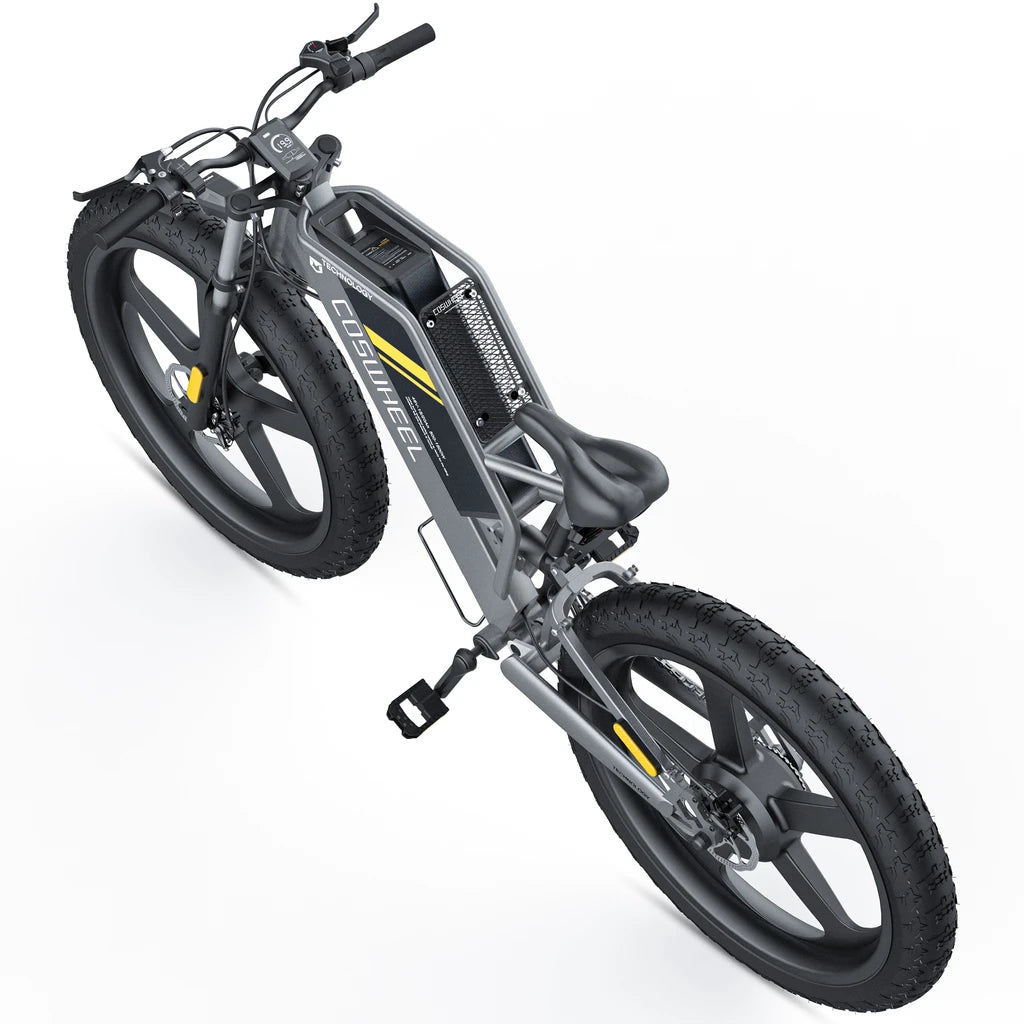

COSWHEEL T26 Mounain Ebike

48V 25Ah

Free Shipping. Delivery To European Union countries 3-7 business days. Tracking information will be provided.



PERFORMANCE

Top Speed: Class 2/3, 28 Mph (45Km/h);

Range: 30-50+miles (48-80km) in Class-2 throttle-only mode (pure electricity); 70-87+miles (113-140km) in Class-1 PAS (pedal assist)

Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m

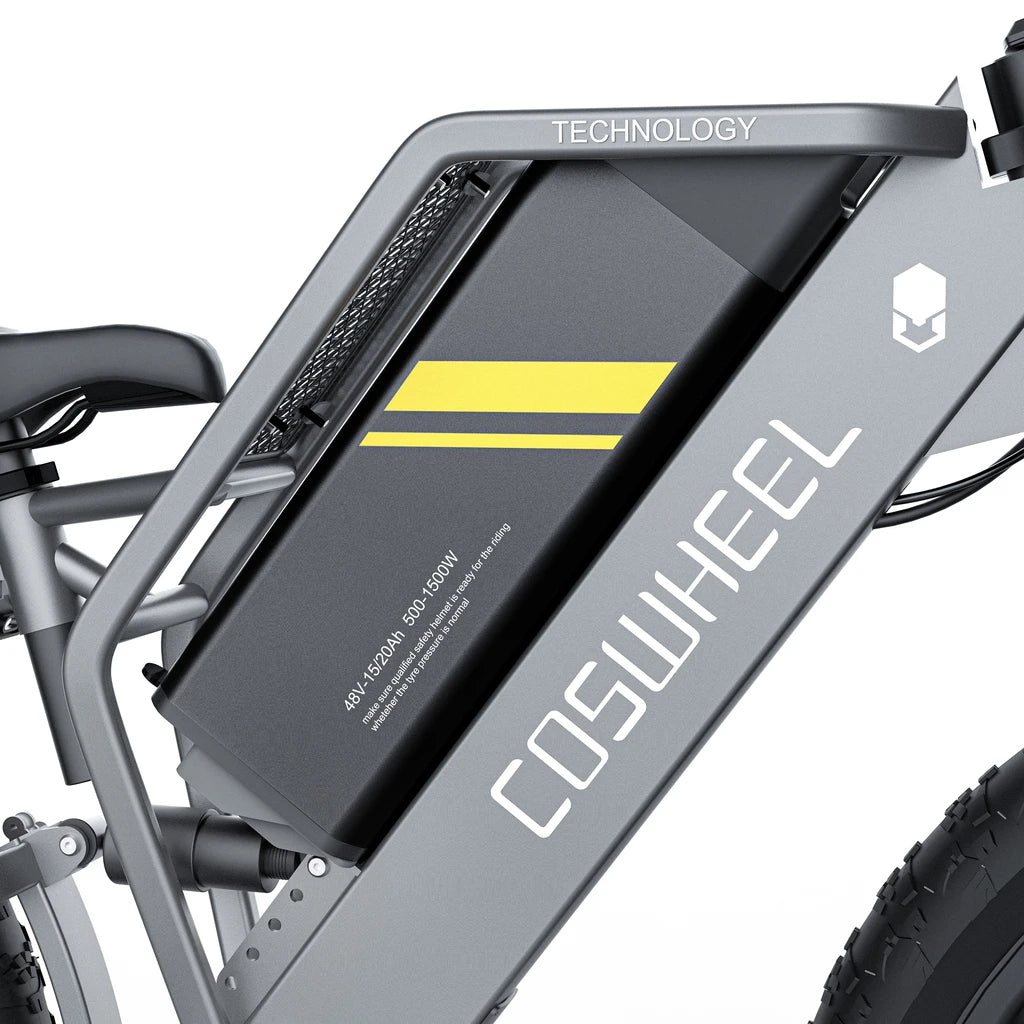

Battery: 48V 20/25Ah Battery (Lithium 18650 Cells)

Energy: 960/1200Wh



Front Suspension: 26" Full Aluminum Double Shoulder Snow Suspension, 80mm Travel

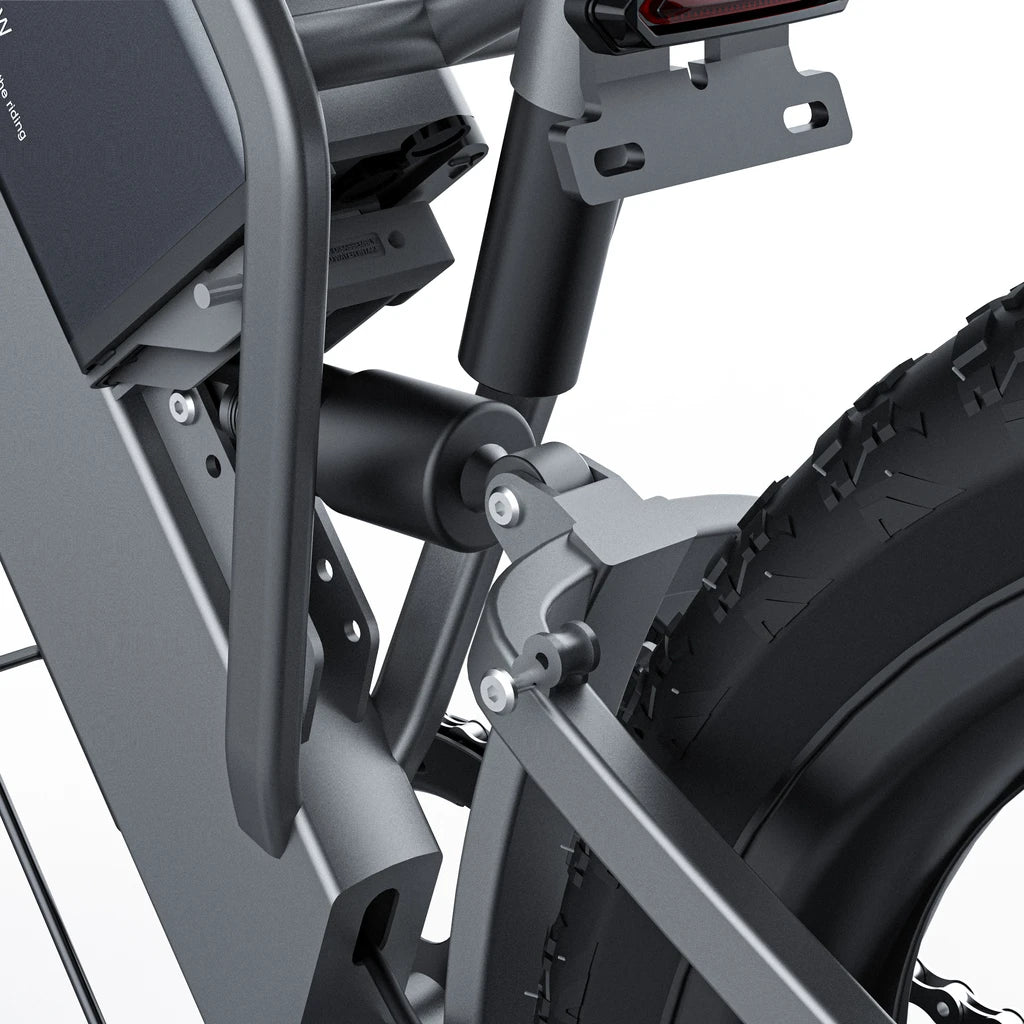

Rear Suspension: 850 Pounds, 180mm Travel



Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc



Tires: CHAOYANG Off-road Tire 26" * 4.0" H5176 30TPI with AV+ Lining Belt



Throttle: Grip Twist Throttle



ELECTRONICS

Charger: 48V3A Charger

Charging Time: 3.5-8.0 Hours

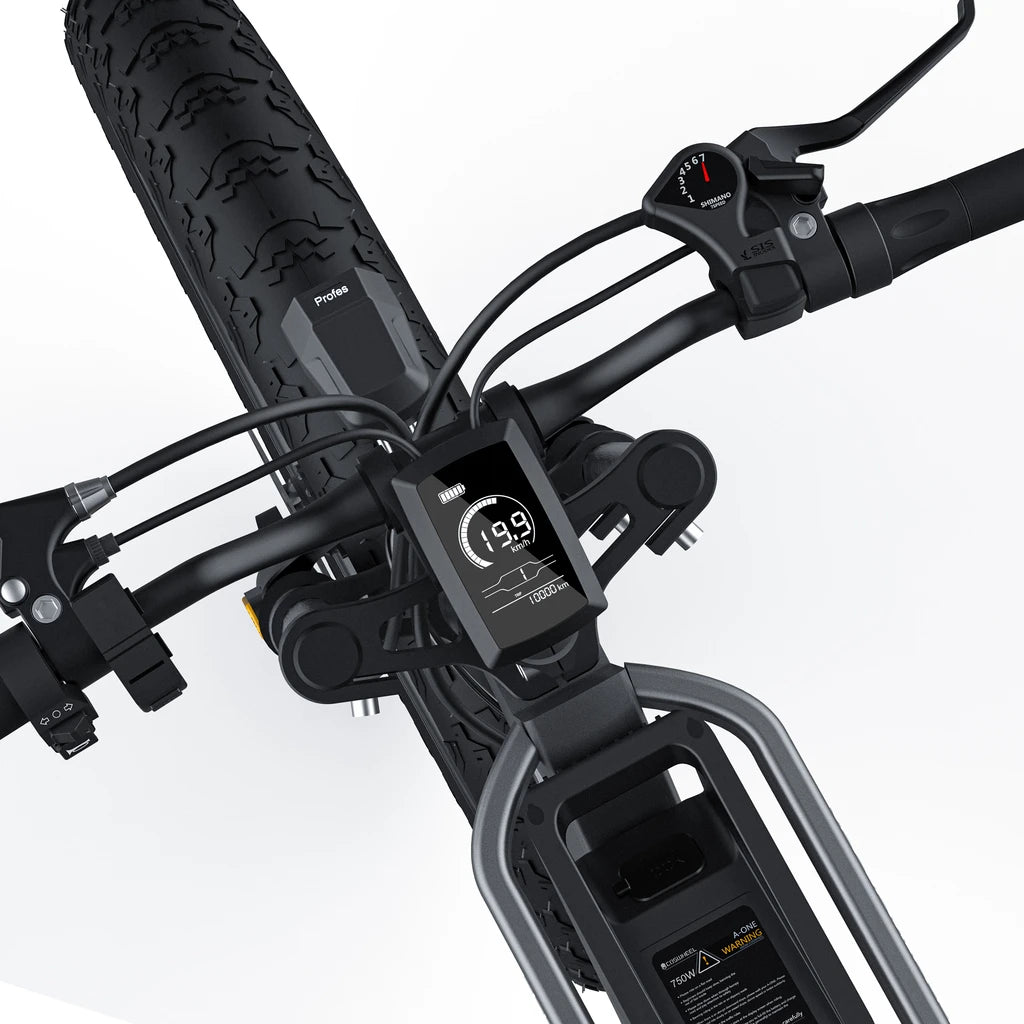

Display: Easy Read LCD Display



Controller: 48V 28A

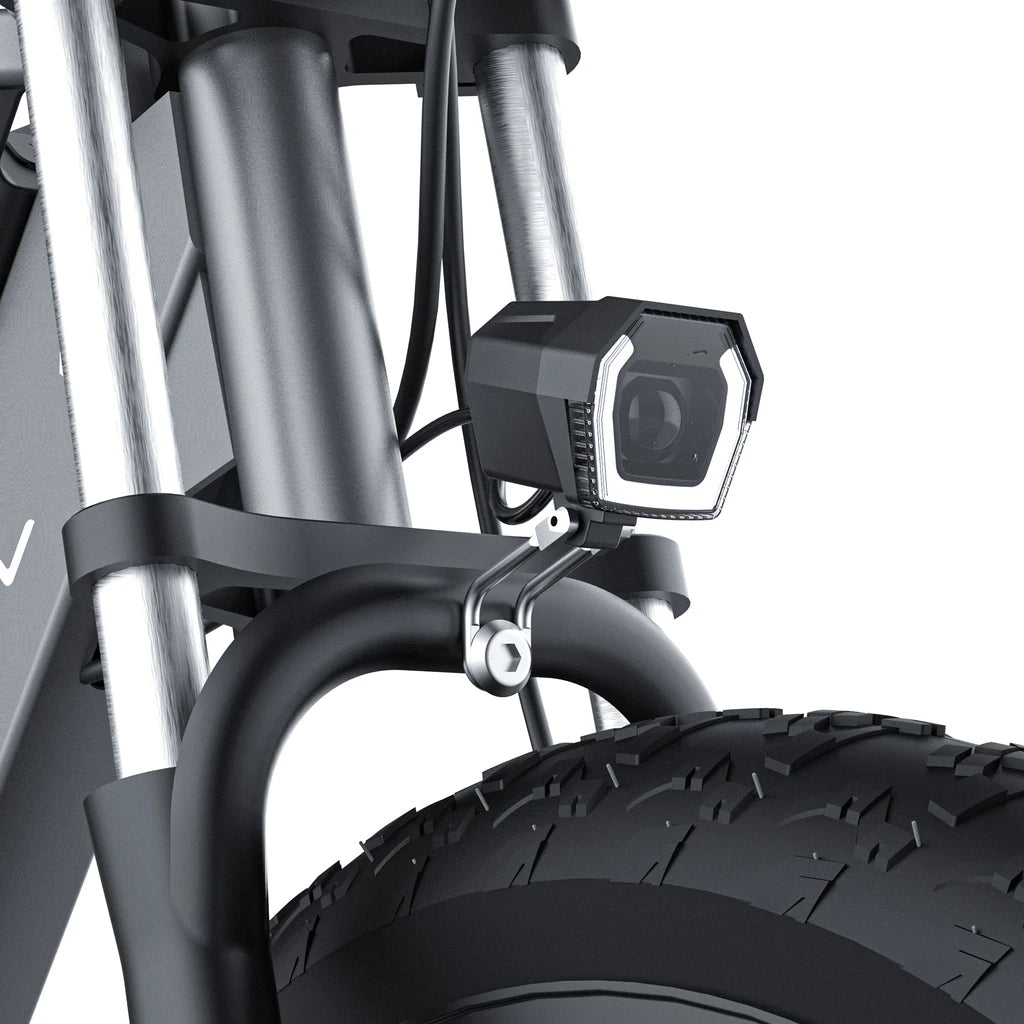

Front Light: LED



Rear Light: LED



Pedal Assist: 5 Levels



Sensors: Speed Sensor



COMPONENTS



Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy



Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

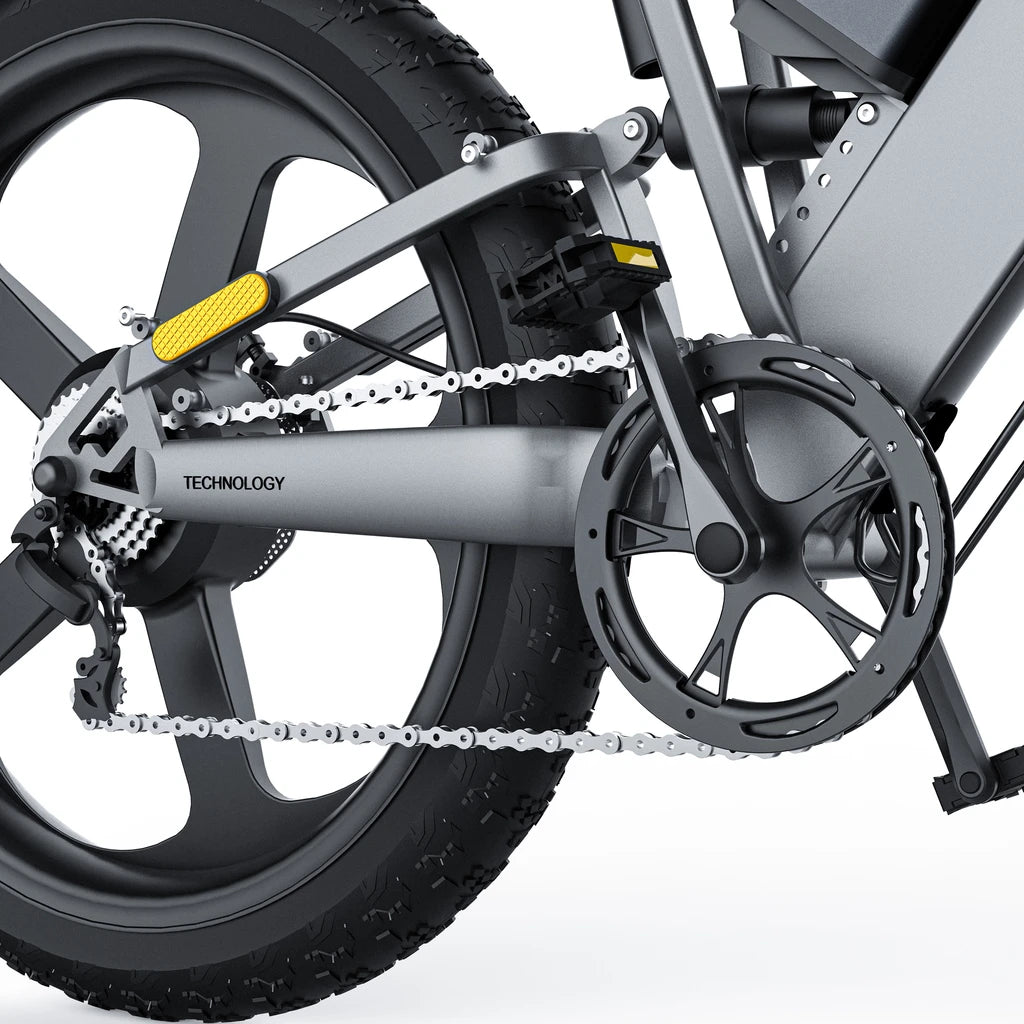

Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate

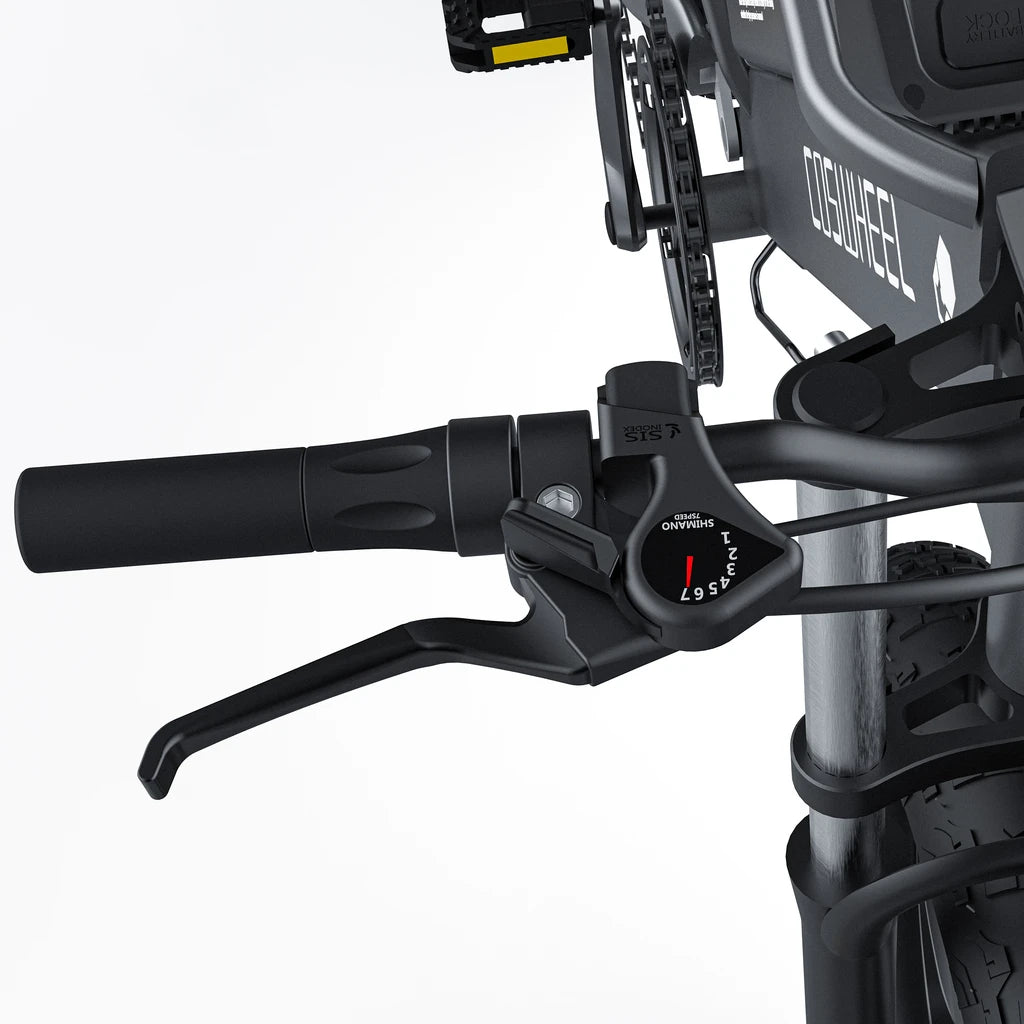

Rear Derailleur: Shimano 7-Speed



Chain: 7-speed Anti-rust, 1/2" * 3/32"



Handlebars: Bend Handlebar, φ620*31.8*H:30



GEOMETRY



Suitable Height: 5'3" - 6'5"



Seat Height: 35.4" (90cm)



Bike Height: 47.3" (120cm)



Wheelbase: 49.2" (125cm)



Handlebar Width: 25.6" (65cm)



Bike Weight: ≥88lbs (with Battery) (≥40kg)



Maximum Load: 330lbs (150kg)



Safe Load: 265lbs (120kg)



Overall Size: 70.9" * 25.6" *47.3" (180*65*120cm)



Package Size: 65" * 13.4" * 35.4" (165*34*90cm)
