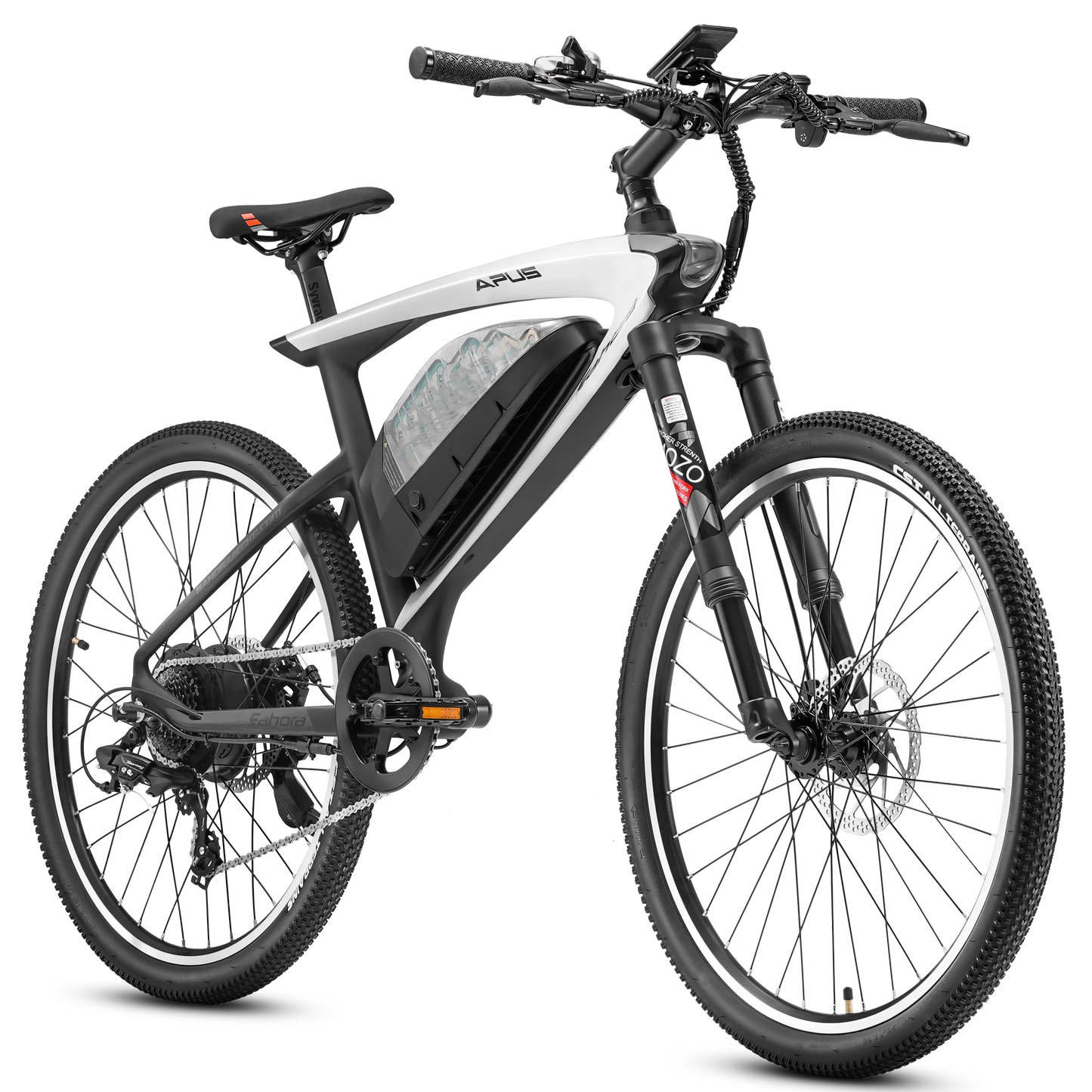

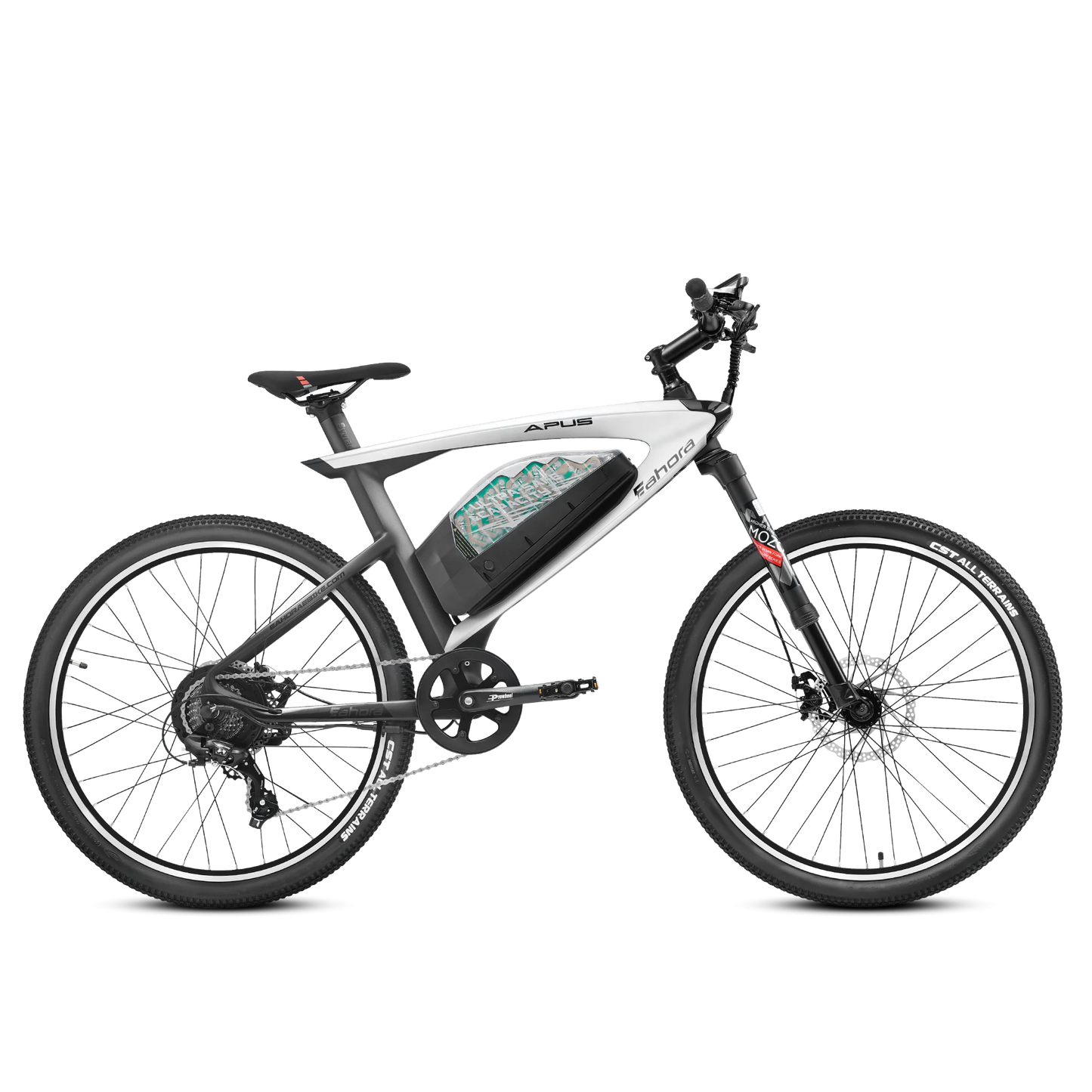

Eahora APUS 750W 20Ah

Recommended Rider Height: 5'7" - 6'4" or 170CM - 195CM

Ⓐ - Total Length: 68.5" or 174CM
Ⓑ - Wheel Base: 42.5" or 108CM
Ⓒ - Seat Height: 33.5"-39.4" or 85CM-100CM
Ⓓ - Handlebar Height: 39.8" or 101CM
Ⓔ - Rim Diameter: 24" or 57.5CM
Ⓕ - Standover: 31.5" or 80CM
Ⓖ - Reach Distance: 17.3" or 44CM
Ⓗ - Chain Stay Length: 16.7" or 42.5CM
Ⓘ - Seat Angle: 66.8°
Ⓙ - Seat Tube Length: 16.5" or 42CM
Ⓚ - Bike Width: 25.9" or 66CM
Ⓛ - Top Tube Length: 22.8" or 58CM

Technical Specifications

*To ensure uninterrupted suppluying and shipping, some parts may differ from those listed.
Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

General Information

• Top Speed
• 23 - 25 mph for both pedal-assist and throttle

• Range per Charge
• 70 - 73 miles with PAS, or 35 - 37 miles w/o PAS

• Max Load
• ≤ 220 lbs to ensure the performance and safety

• Rider Height
• 5'7" - 6'4", or inseam ≥ 30.6"

• Bike Weight
• 50.1 lbs with the battery installed

• Ideal Use
• IPX6 weather-proof urban riding

Riding with Unmatched Power

• Battery Capacity
• 960 Watt·hour (48V 20Ah)

• Cells Type
• Lithium-ion Grade A 21700 Cells

• Battery Lifespan
• ≥ 1,000 charge cycles to 80% of capacity

• Motor Power
• 750W, or peak 850W

• Motor Torque
• 75 Newton·metre (max)

• Motor Type
• Rear hub motor, brushless, IPX6

• PAS Levels
• 5 Levels with Cadence Sensor

• Throttle Type
• 5 Levels thumb, slightly delayed response (safe design)

• Display / Dashboard
• 4" monochrome LCD, USB charge port

• Shifting Gears
• Shimano 7s 14-28T, 38T chainring

• Battery Charger
• 54.6V 2A Quick charger, 8-10H charge time

• Additional Modes
• Cruise Control, 6 km/h Walk

Biking Safely & Confidently

• Brake System
• Mechanical disc brakes with motor cutoff

• Brake Rotors
• 180mm (φ) x 2.3mm (t) steel rotors

• Brake Caliper/Pads
• Semi-metallic pads

• Bike Frame
• Carbon Fiber 26" x 18" hardtail frame

• Front Fork
• Coil suspension aluminum alloy fork

• Shock Absorber
• No rear shock aborber for hardtail frame

• Head Light
• Integrated 12W LED with built-in horn

• Tail Light
• No tail light

• Additinal Reflectors
• Pedals, spokes

• Tire Type
• CST 26" x 1.95" tires with tube (20-25 psi)

• Saddle
• Urban-style seat with pressure-relief

• Handlebar
• Aluminum 640mm x 31.8mm (φ, center), rise

Components & Accessories

• Bell
• Electric horn built-in headlight

• Crankset
• 170mm Aluminum, 38T chainring with cover

• Pedals
• WELLGO 16/9 aluminum alloy platform

• Derailleur
• SHIMANO RD-TY300 7 speed

• Shifter
• SHIMANO SL-TX50-7R

• Freewheel / Cassette
• SHIMANO MF-TZ500-7 14-28T

• Rims
• 36H aluminum alloy rims

• Spokes
• Black stainless steel

• Grips
• 120mm x 22.2mm (φ) rubber, anti-slip

• Seatpost
• Custom seatpost, no clamp

• Headset
• Integrated threadless headset

• Stem
• 31.8mm (φ, handlebar) * 35° A-head

• Kickstand
• Aluminum alloy heavy-duty

• Racks & Baskset
• Not available

• Fenders
• Not available

Package List:

Electric Bike * 1 (85% assembled)
Ebike Battery * 1 (2 keys)
Battery Charger * 1
Front Tire * 1
Pedals * 2 (left & right)
Screws & Toolkit * 1
Owner's Manual * 1

Riding Modes:

5 Levels Pedal-Assist (Cadence)
5 Levels Throttle
8 Seconds Auto-Cruise
7-Speed Non-Electric
6 KM/H Walk
