EcoBike

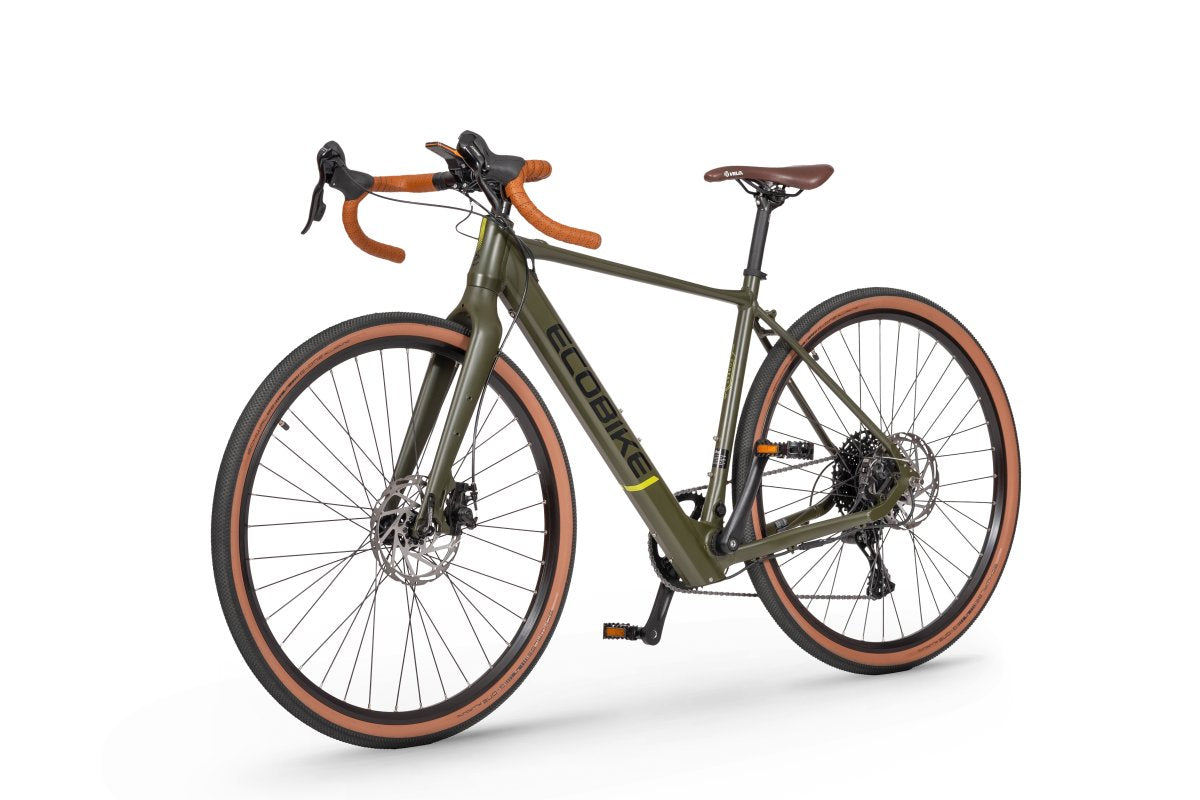

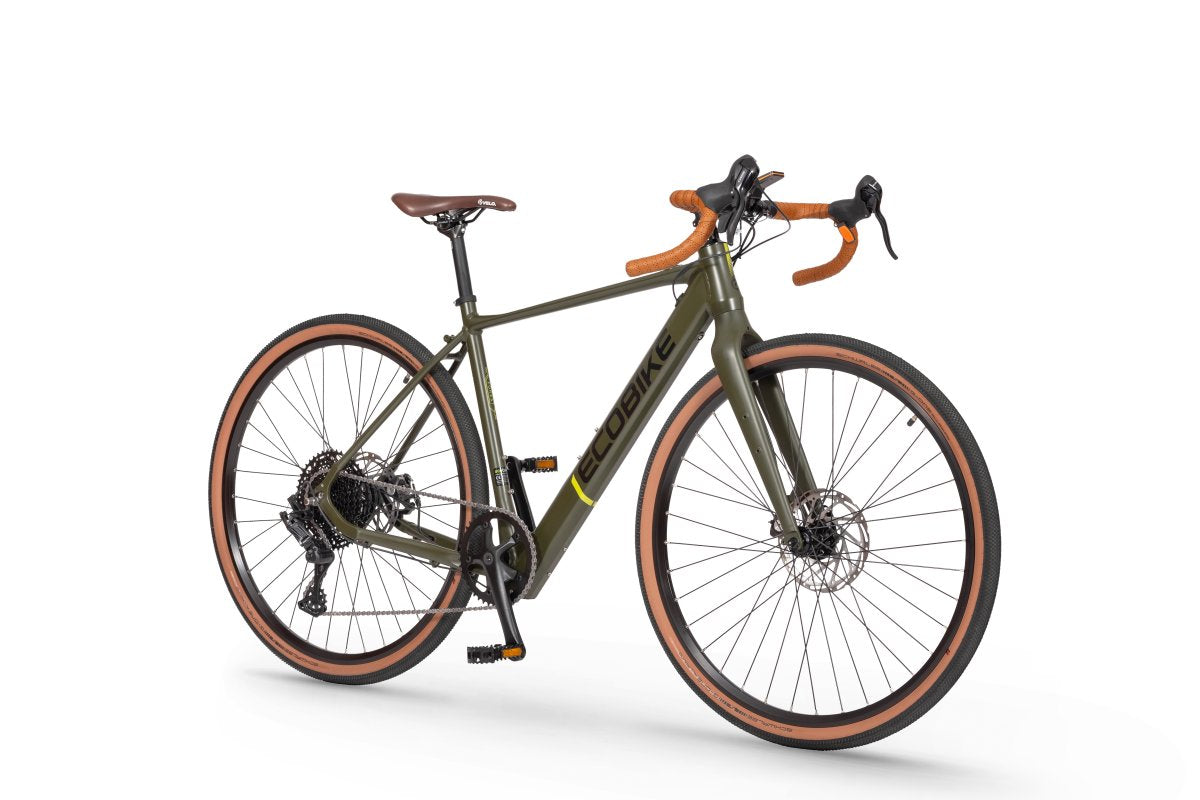

Ecobike Forest Lightweight gravel e-bike

Ecobike Forest Lightweight gravel e-bike

Regular price €1.650,00 EUR
Regular price Sale price €1.650,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

36V 9.7Ah

Free Shipping. Delivery To European Union countries 3-7 business days. Tracking information will be provided.

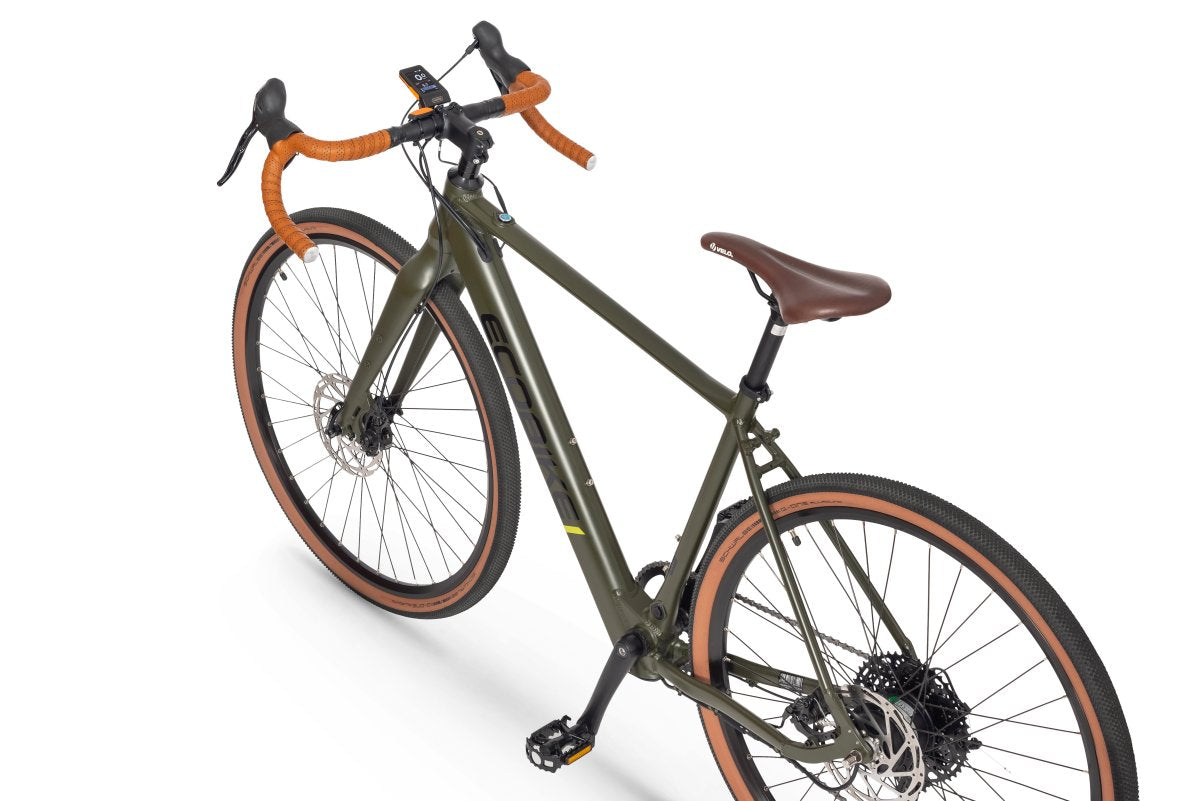

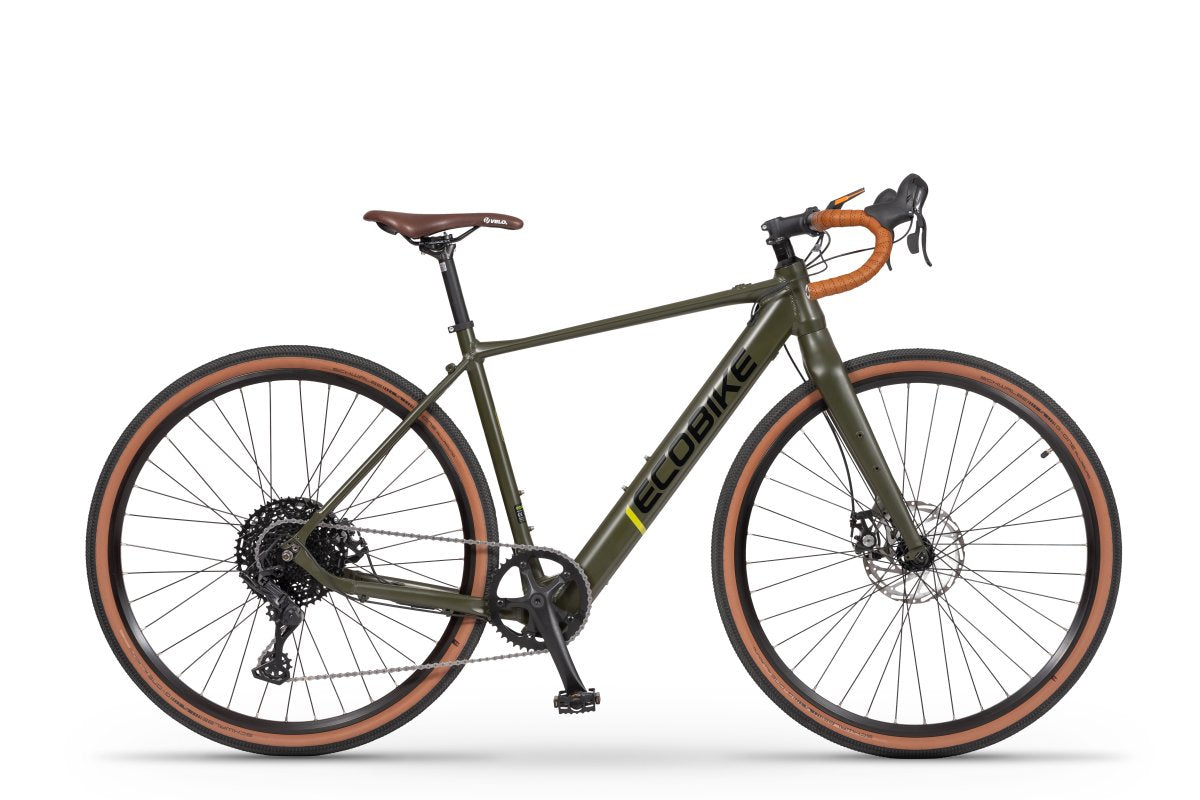

Ecobike Forest

Innovation and versatility are the main strands of the Ecobike philosophy. Gravel is a road bike whose possibilities do not end with the asphalt. When we saw the increase in popularity of this type of bike around the world, we had no doubt that we wanted to propose our - electric - vision of such equipment.

Forest consistently follows the gravel concept but in its DNA, it is still a full-size Ecobike.

The inconspicuous and minimalist design deceives the senses, but it hides everything that an e-bike should contain.

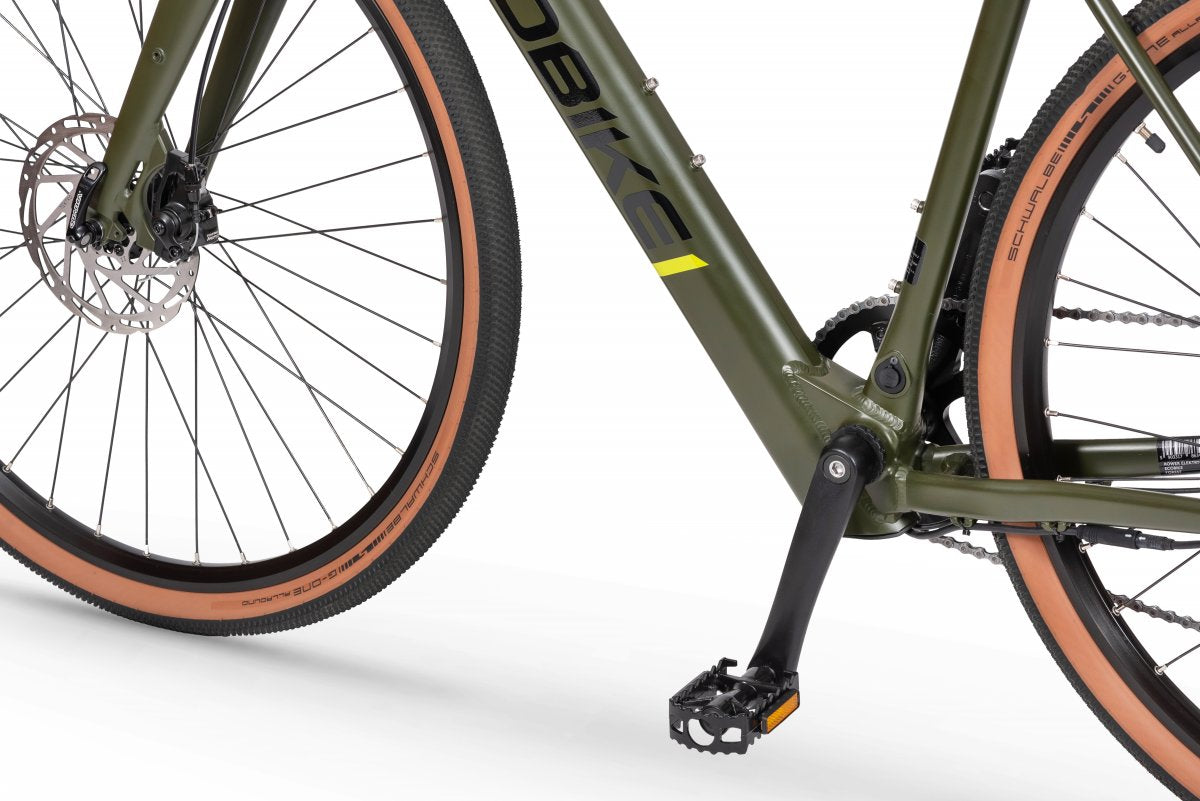

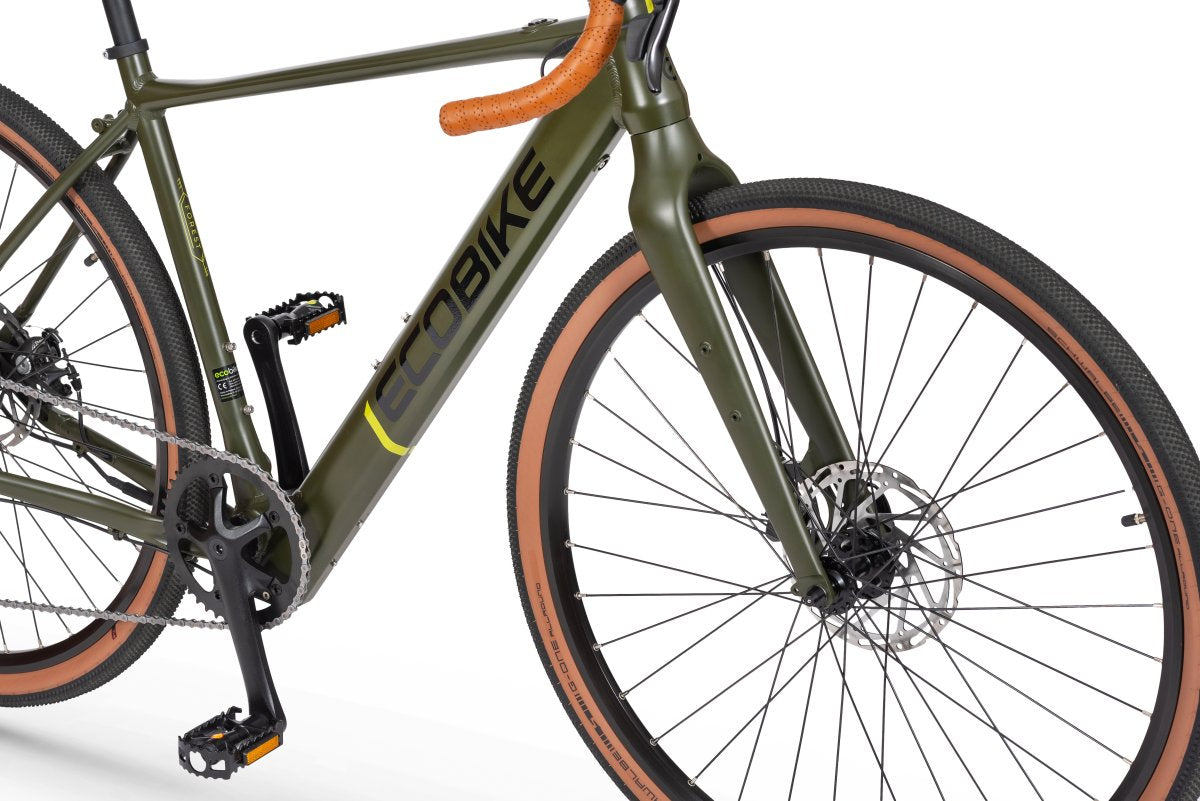

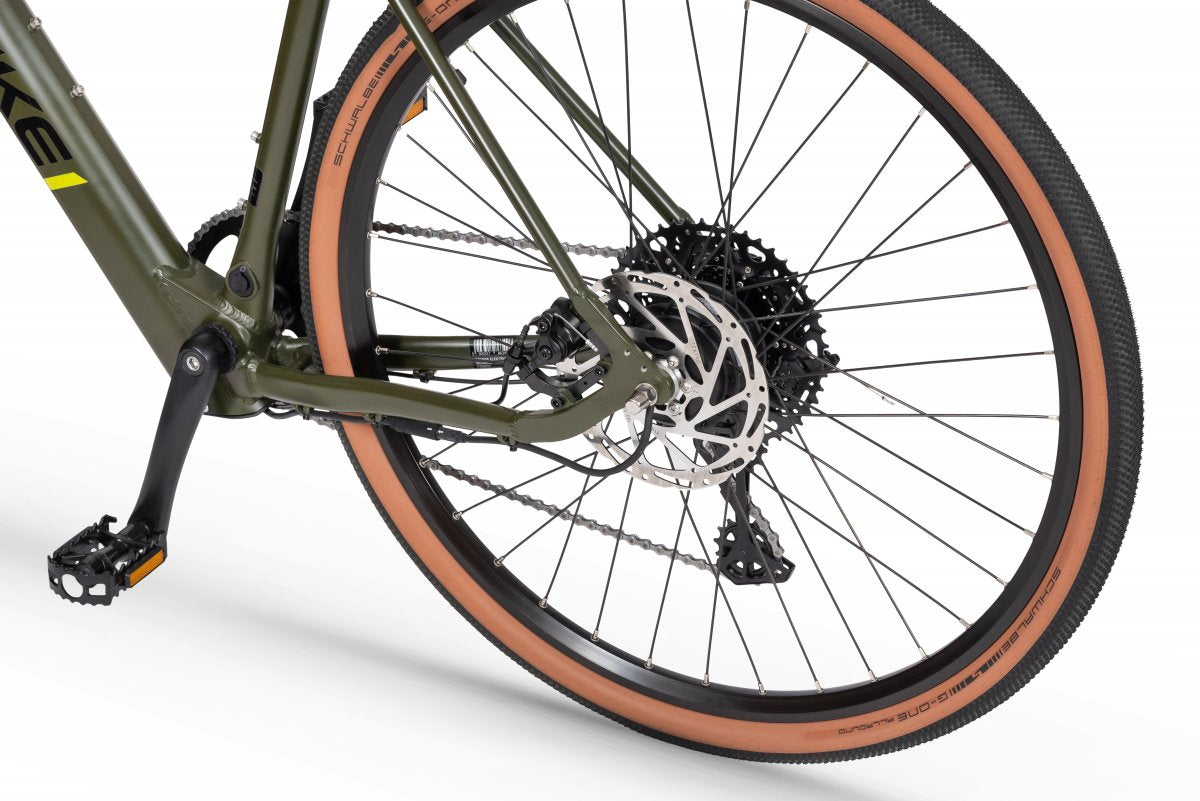

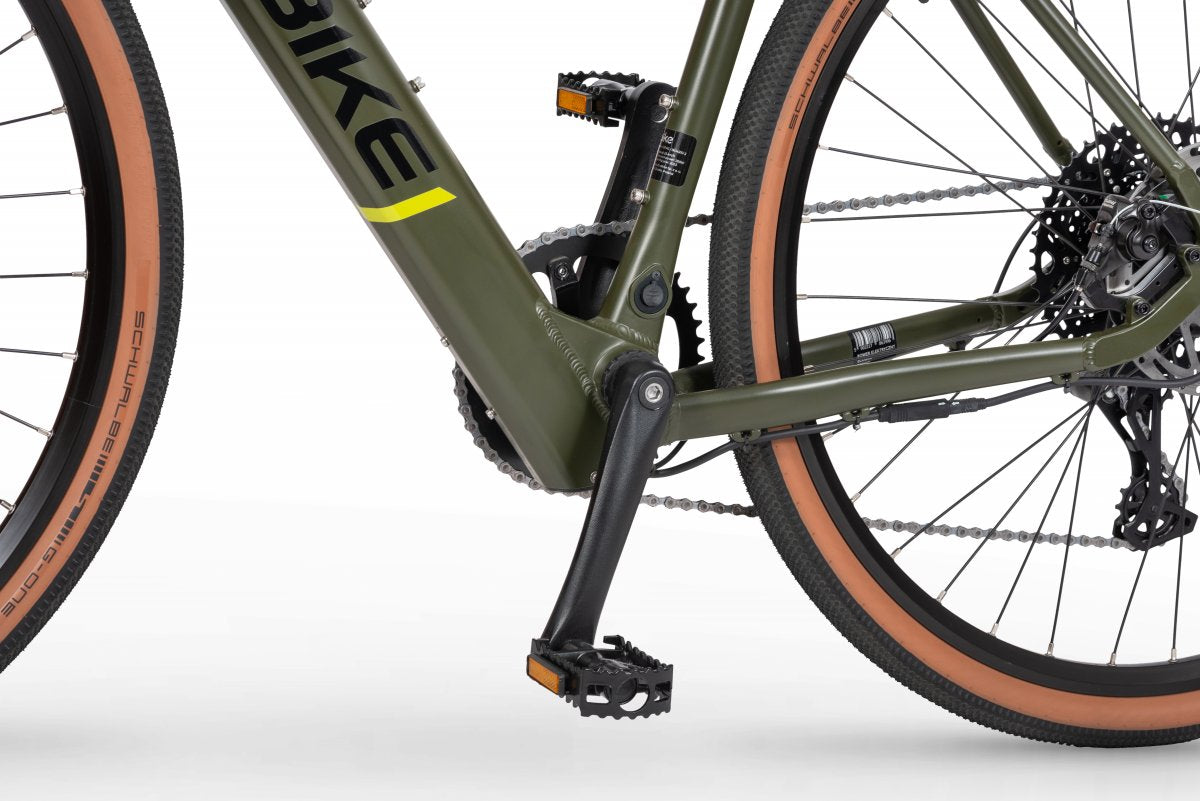

A light structure based on an aluminum frame and proven equipment are the basis of a bike that must cope with even very long trips. The equipment includes solid components, starting with the Microshift derailleur, which, in combination with a long-span cassette, will allow you to navigate even highly varied terrain. To keep the bike safe in the toughest conditions, Tektro® mechanic disc brakes are also present. A characteristic element of gravel are tires - we used CST® with a tread, which will work well on unpaved and wet surfaces.

An important element for expeditions are inserts for accessories located on the frame and fork.

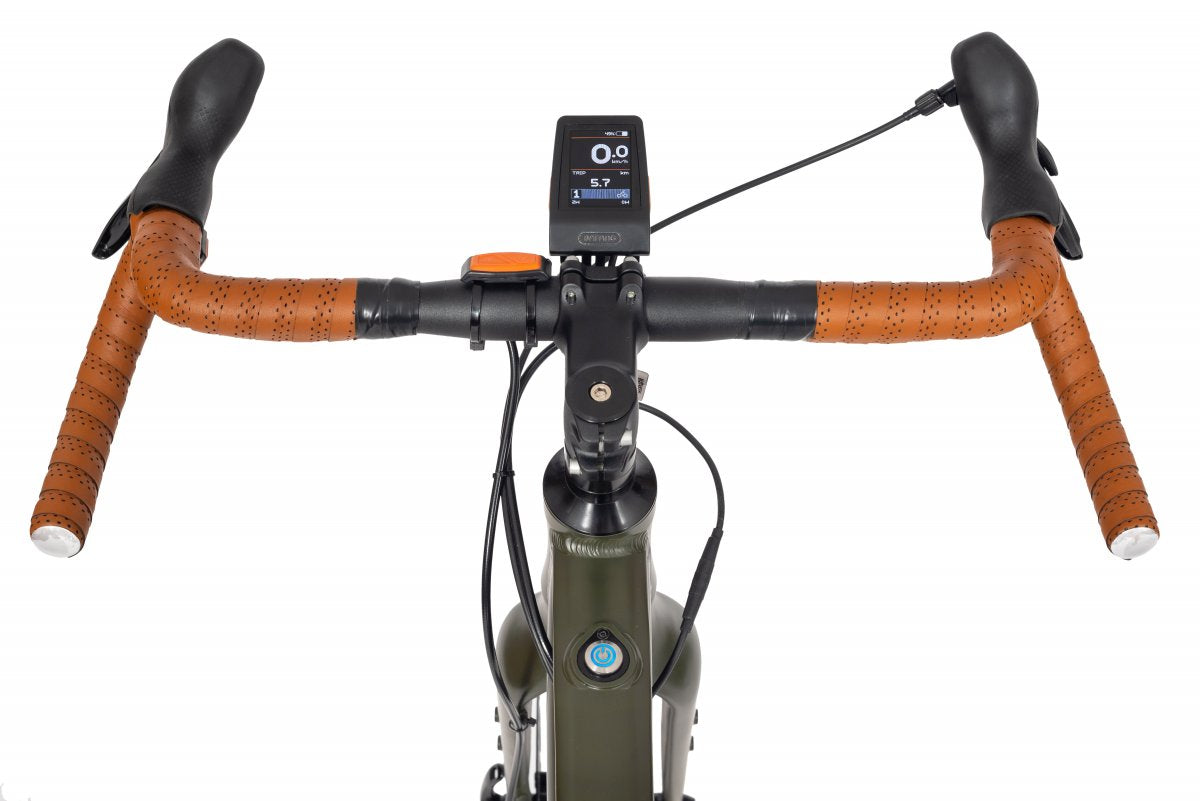

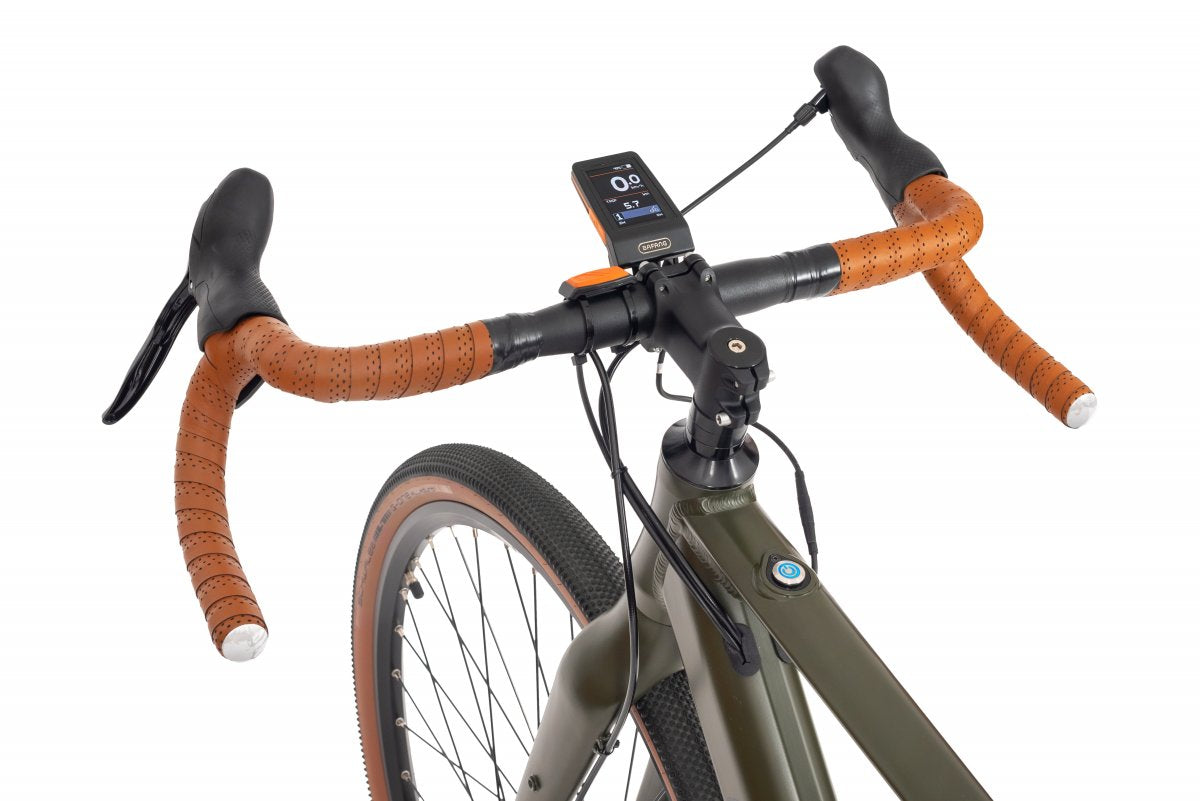

The electric assist system, which is discreetly placed on the bike, is based on Bafang® technology. A small motor mounted in the rear hub provides 250W of power. The 349 Wh battery is completely hidden in the frame. The sporty character of the Forest is emphasized by the characteristic display, the control buttons of which are arranged in two places, so that you can operate the system regardless of how you place your hands on the steering wheel at any given moment.

** Find out that Ecobike Forest is a reliable companion on your adventure! **

Geometry

AEffective top tube length (mm)

590

BHead tube (mm)

120

CSeat tube length (mm)

490

DWheel base (mm)

1 087.50

ESeat tube angle (degrees)

74

FHeadset angle (degrees)

70.50



Geometry



Technical specification

Bicycle

Frame

19'' hydroformowane aluminium

Fork

JX 28.6*25.4*201L AL-6061

Wheel

28" reinforced three-chambered rims / Sapim spokes

Tires

28" x 1.75 Schwalbe G-ONE ALLROUND Evo

Front hub

KT KT-XA2F 9*13G*36H*100W

Handlebar

PROMAX HB-3048DB 31.8*420W

Brakes

TEKTRO C400

Shifters

Microshift RD-M6205GM

Grip

Microshift Advent X SB-M100A 10 speed

Freewheel

Microshift CS-H104 11-48T

Chain / Belt

KMC e10

Crank

PROWHEEL SOLID-244T-F 1/2"*3/32"*44T*175L

Pedals

FP

Saddle

VELO VL-3381

Maximum load

125 kg

Weight

16.8 kg

Strap

VELO VLT-2019H


Battery

Charger

220-240V 42V / 2A / Typ D

Smart BMS

YES

Cells brand

LG

Capacity Wh

349,2 Wh

Type

Li-ion LG

Voltage

36V

Range

up to 80 km

Fuses

30A

Lifespan

> 700 charges

Charging time

~5h

Capacity ah

9,7 Ah

E-bike system

Motor

BAFANG

Type

Rear hub

Voltage

36V

Torque

30 Nm

Power

250W

Controller

Bafang CR X10T

Speed

25 km/h in accordance with EU standard EN 15194



SAFETY AND QUALITY FIRST

Bikes are all about the equipment. Ecobike e-bikes combine reliable technologies from established manufacturers with durable electric motors and long-lasting batteries.All Ecobike products are manufacured according to strict European Union regulations & standards: EN15194 / EPAC / ISO4210-2
