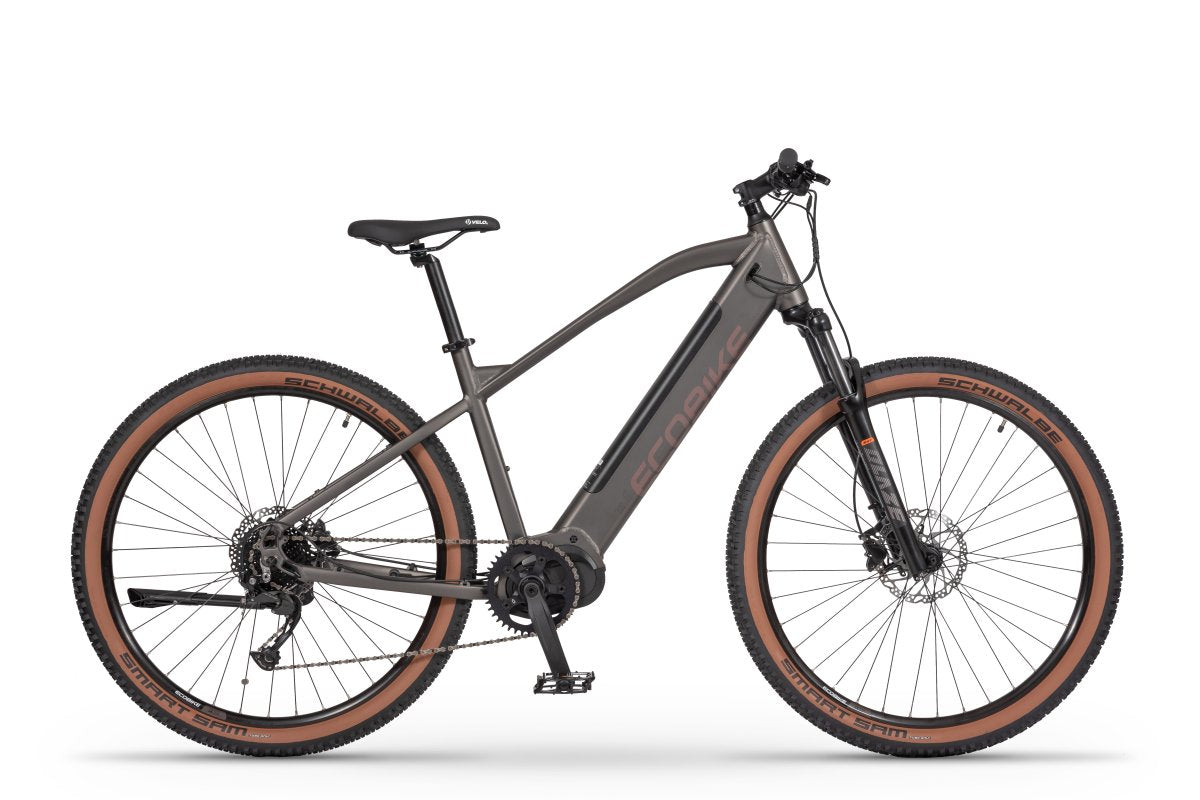

Ecobike SX 300 Copper Black Electric bike
Ecobike SX 300 Copper Black Electric bike
Couldn't load pickup availability
48V 14Ah
Free Shipping. Delivery To European Union countries 3-7 business days. Tracking information will be provided.

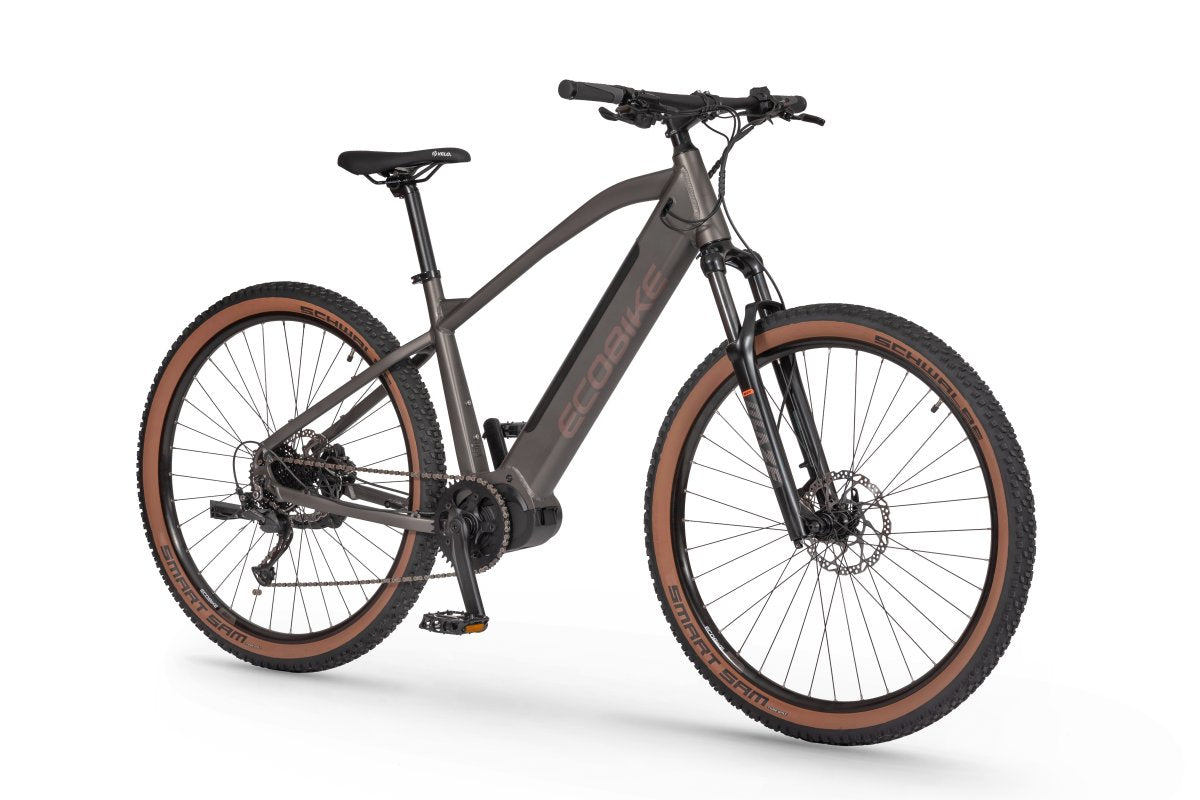

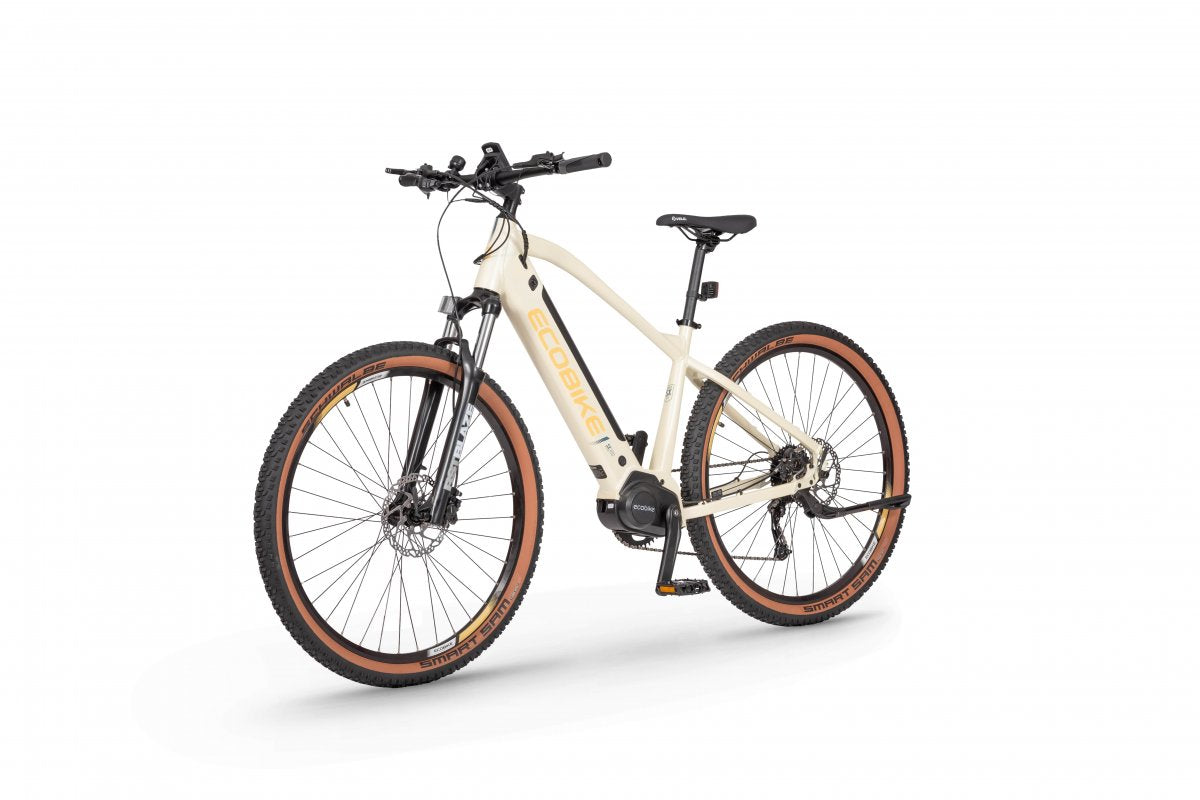

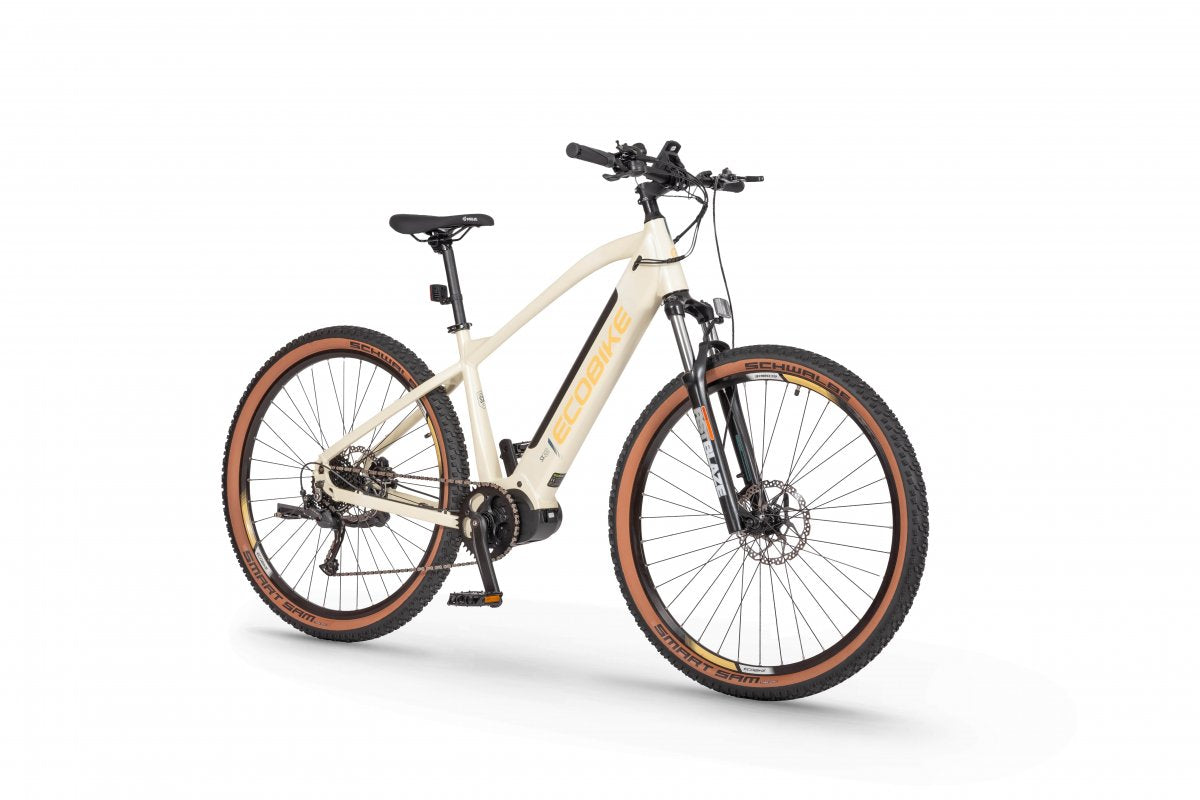

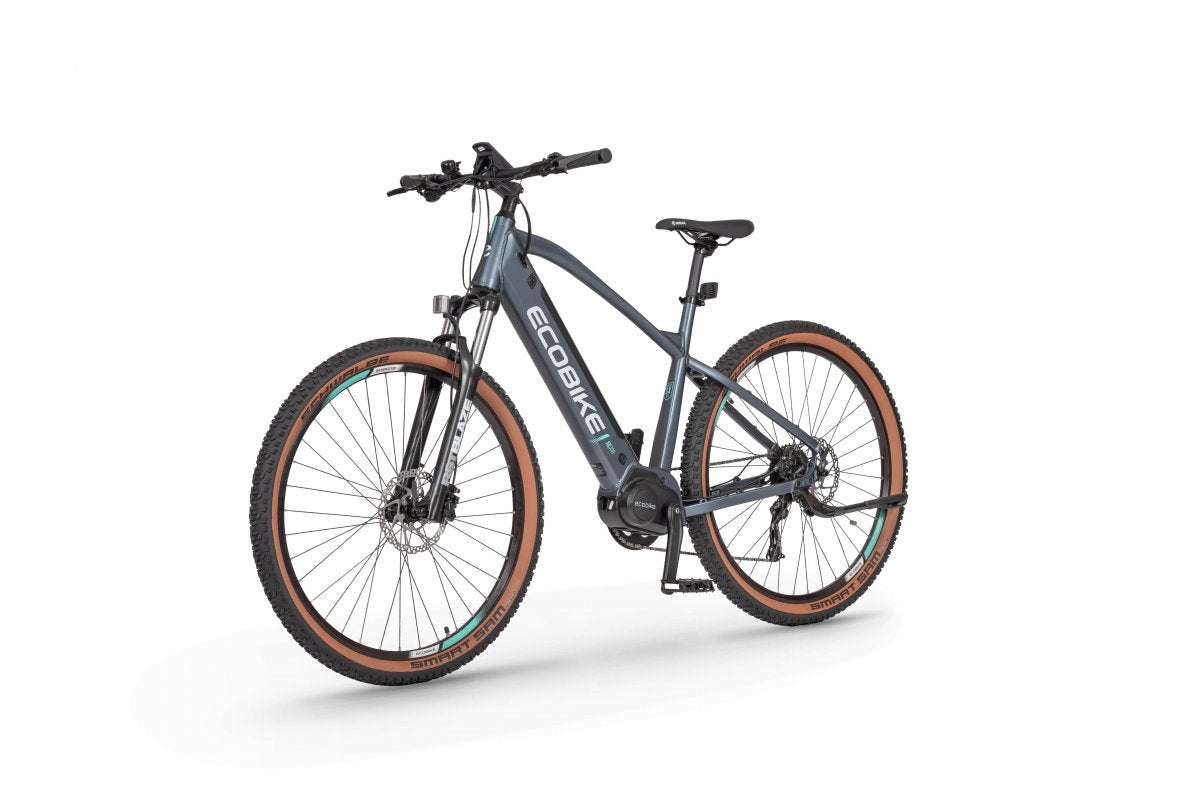

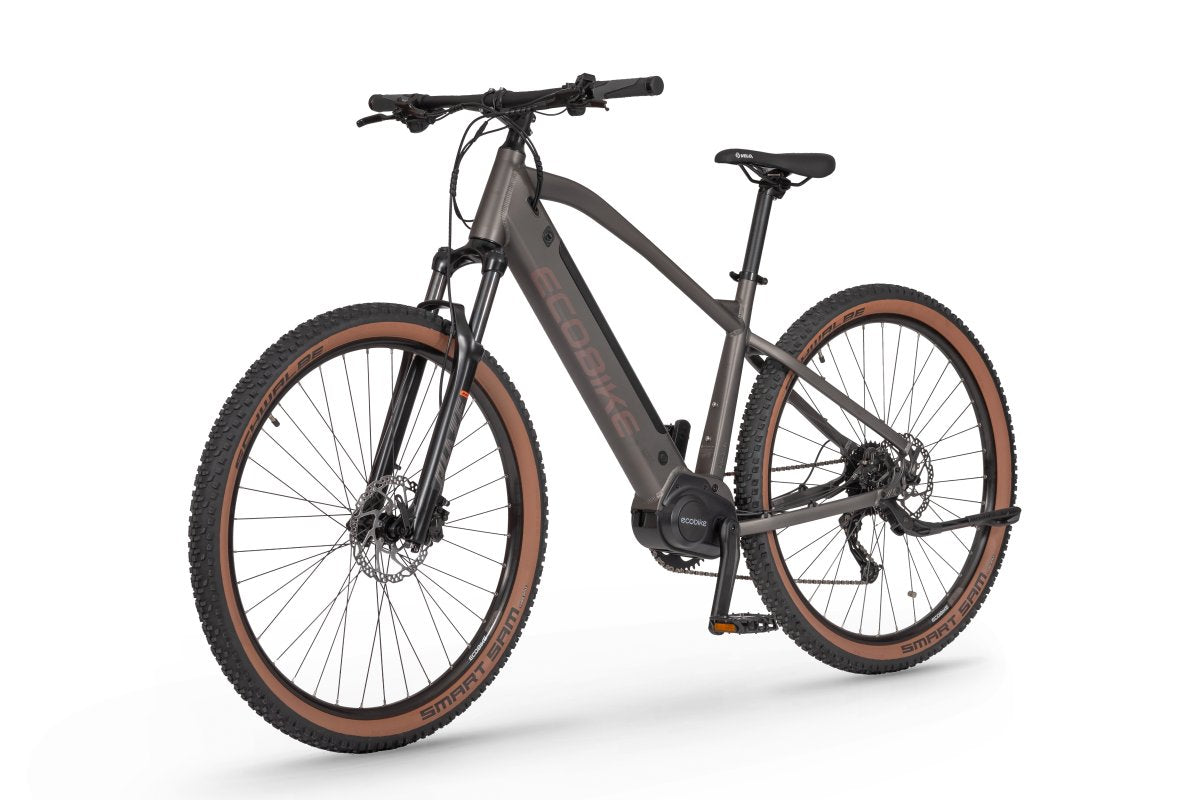

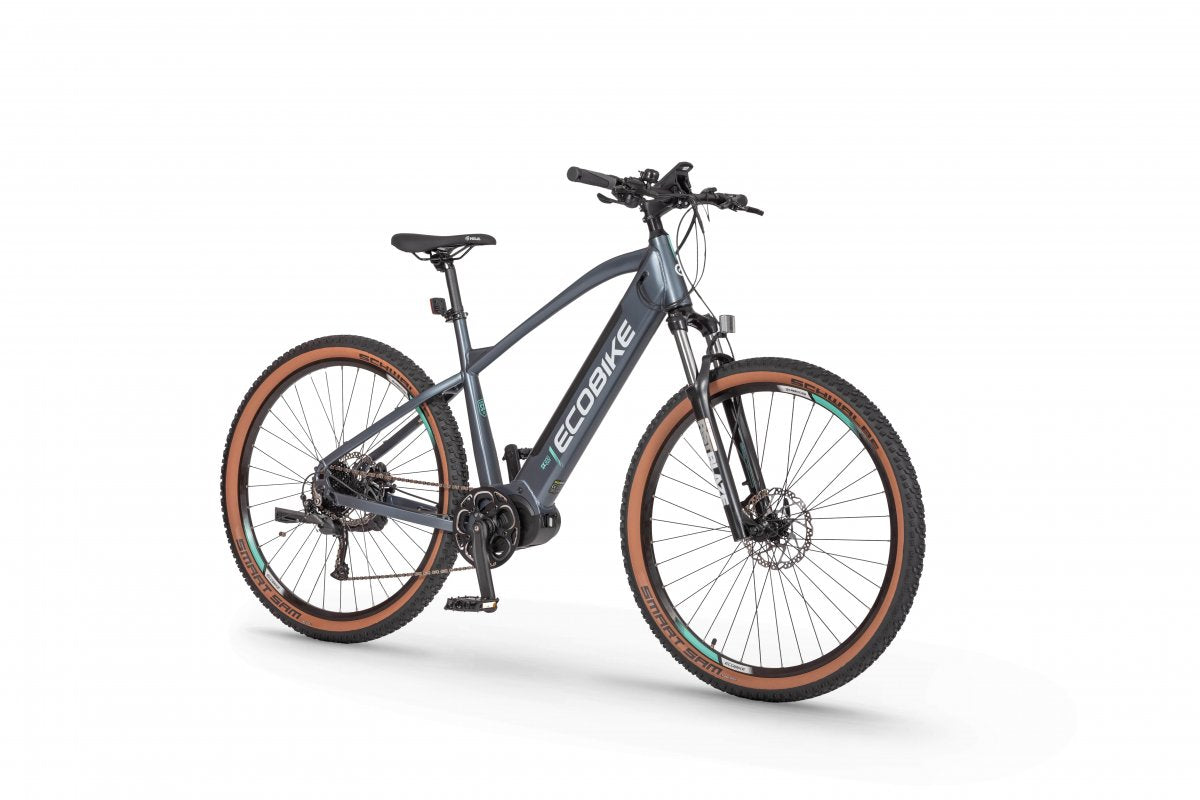

We have redefined technology that has proven itself in all conditions for years. Meet the Ecobike SX300. An MTB e-bike that combines the continuation of fantastic performance with the design of the future.

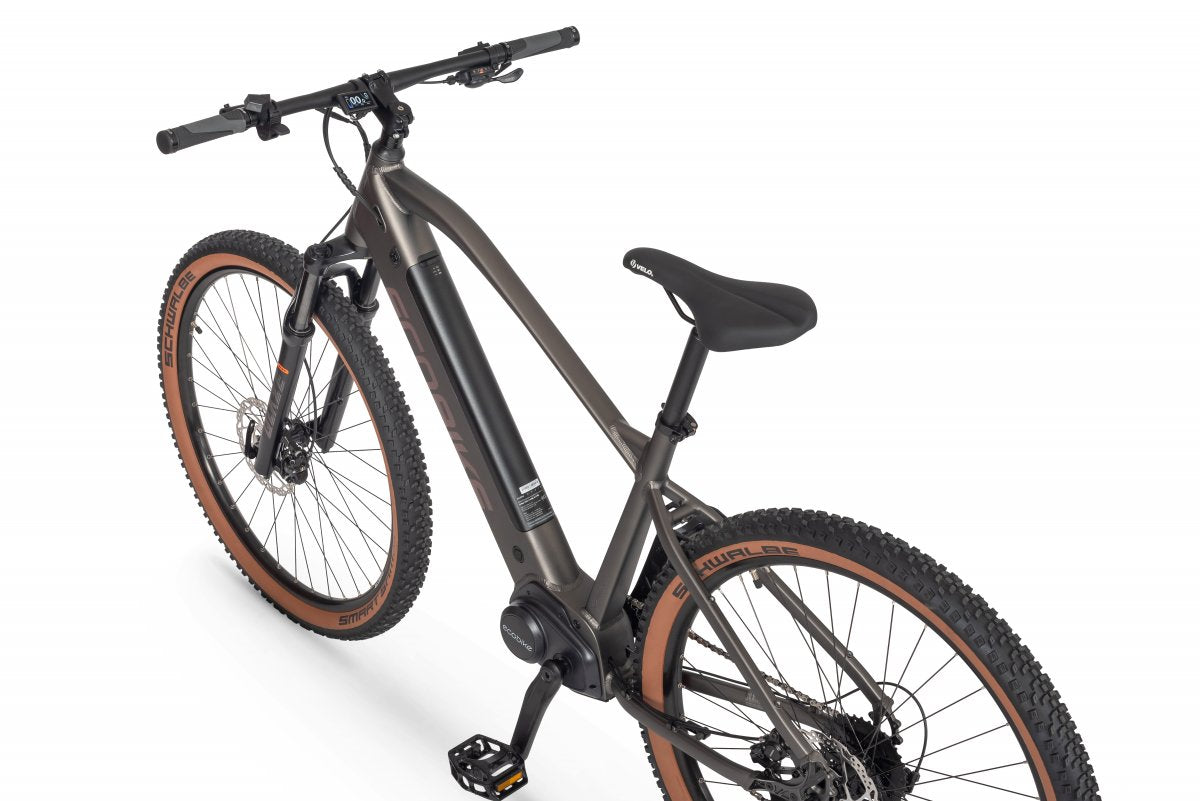

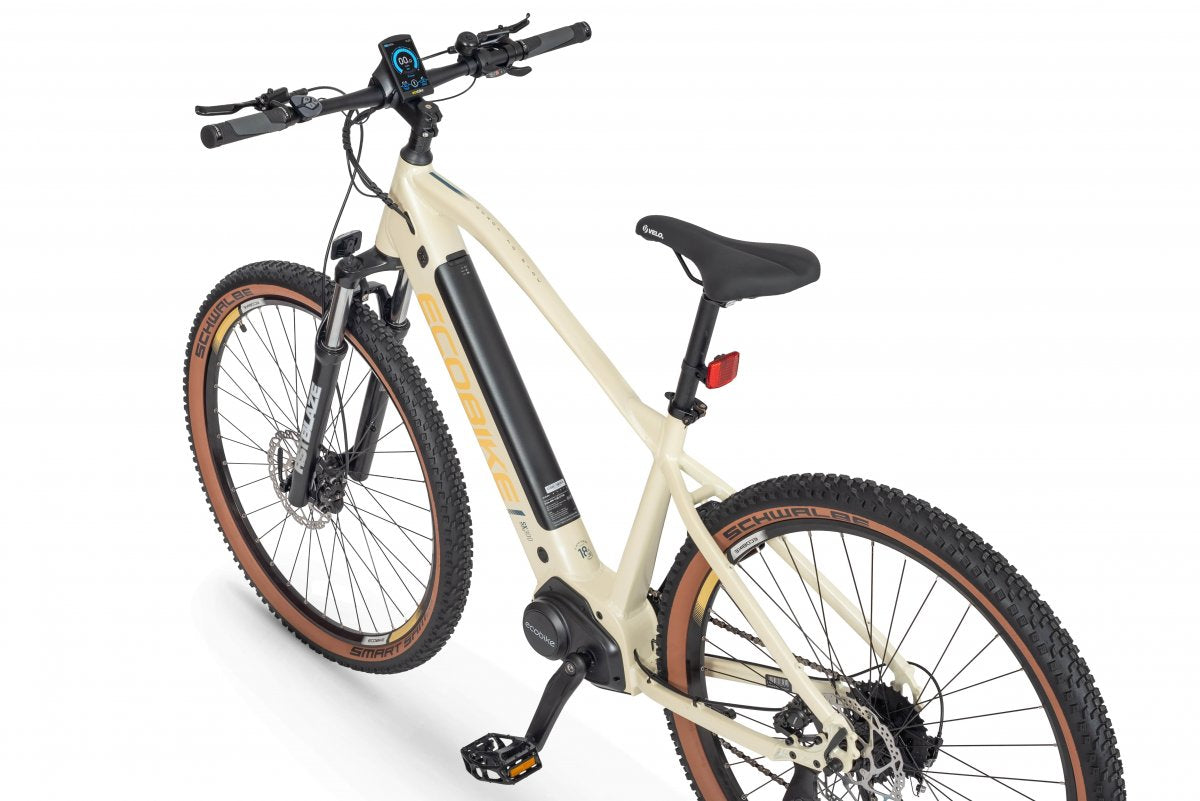

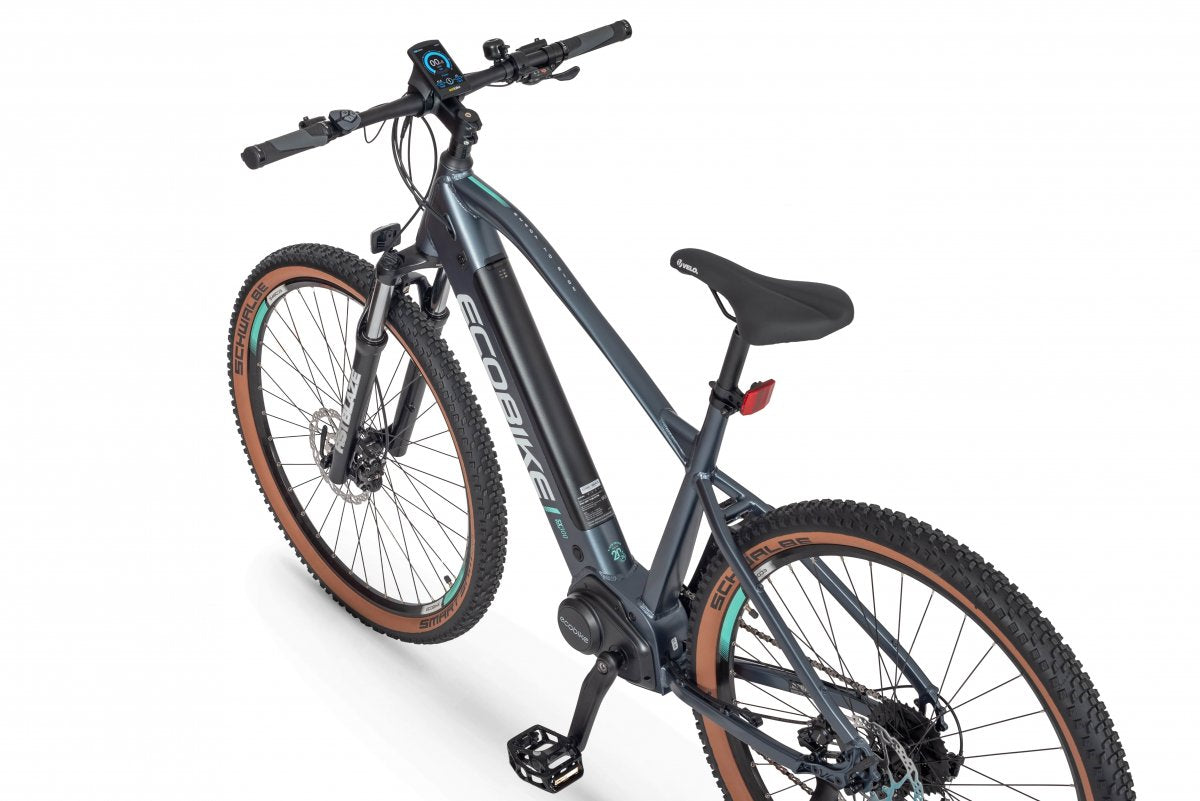

Ecobike SX300 is characterized by a unique design. The new proprietary frame design makes the e-bike immediately catch the eye, but also works great in practice. The battery is an integral part of the frame, completely lost in it, and the geometry provides great comfort, good weight distribution and safety.

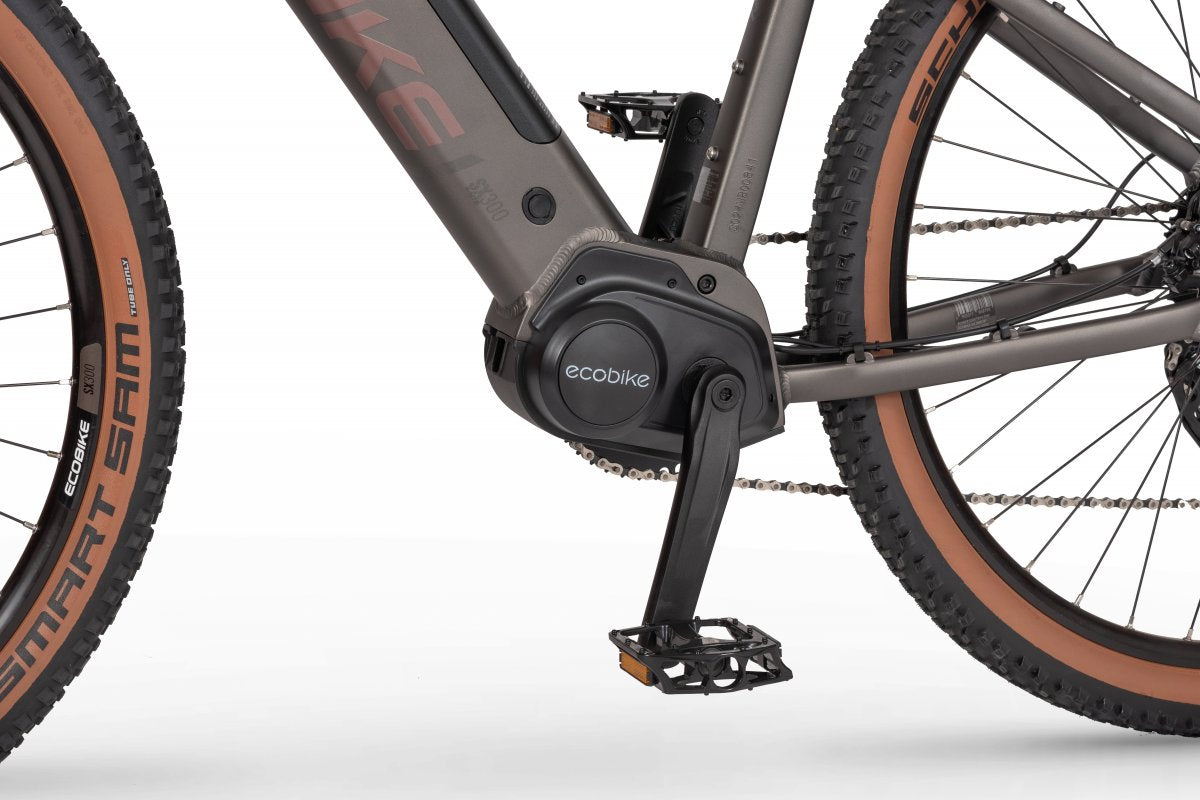

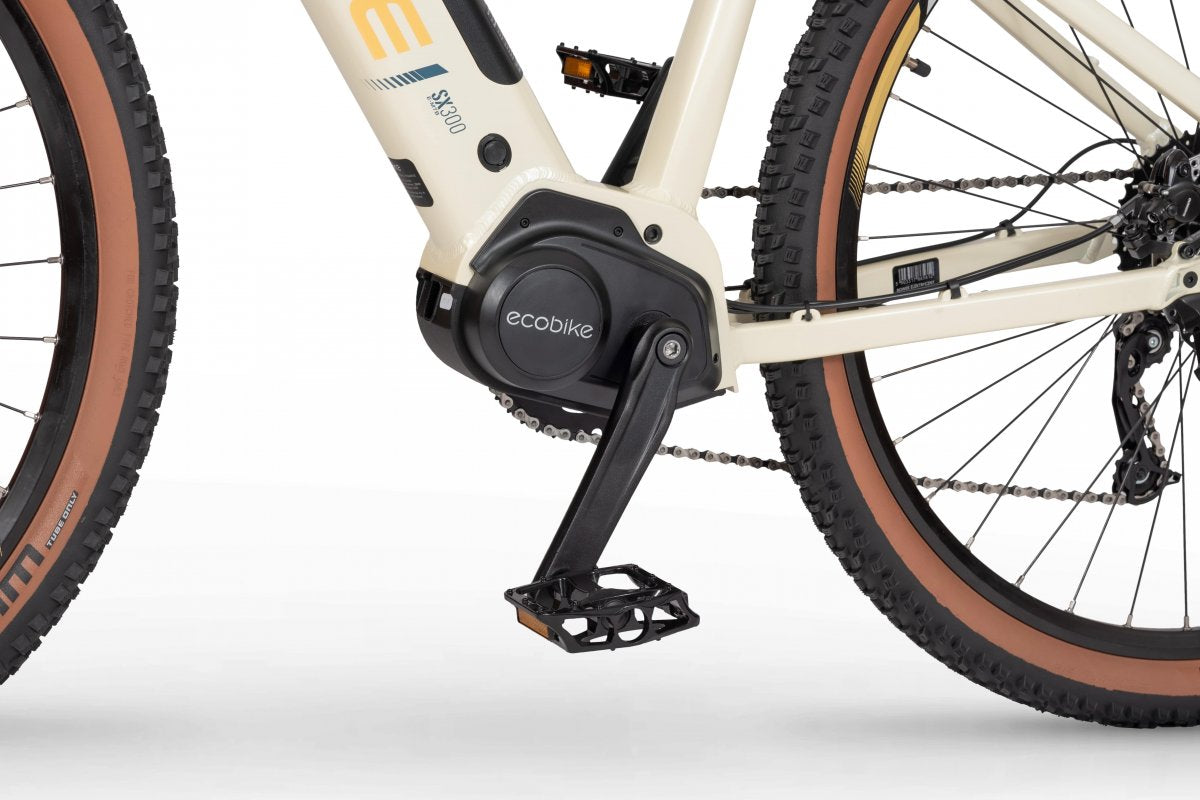

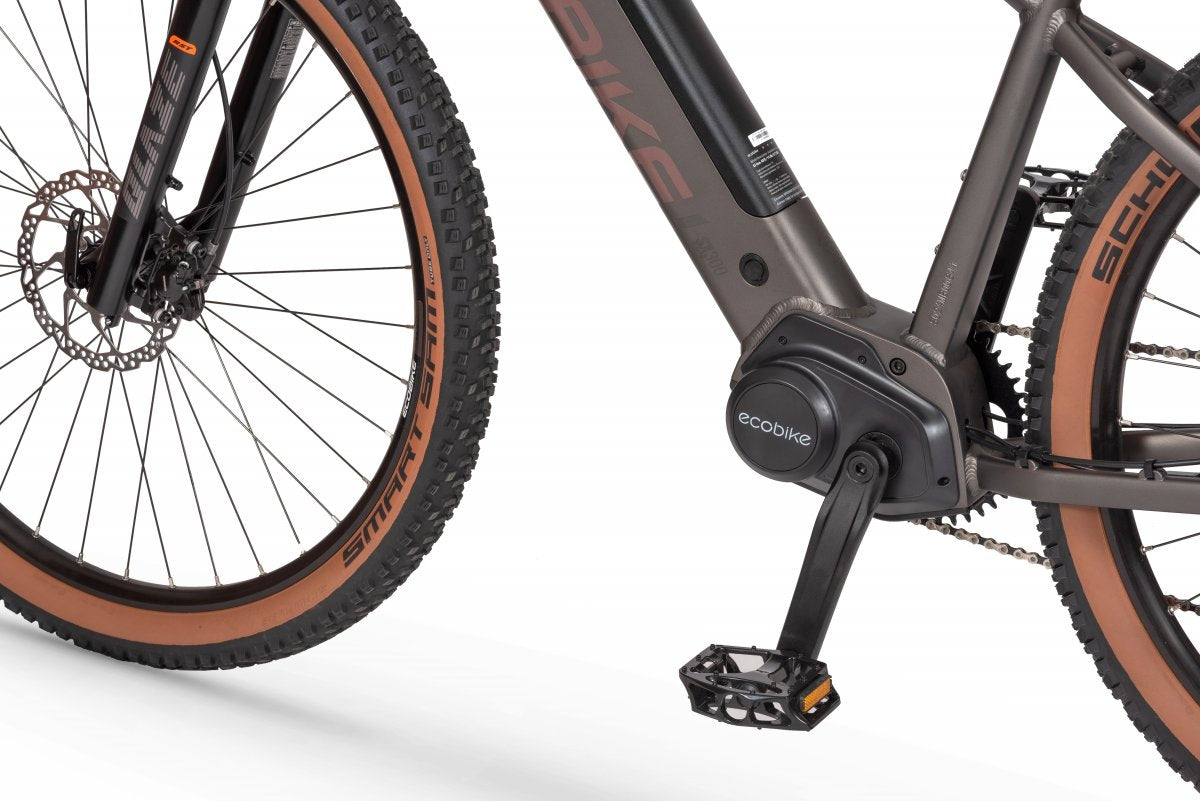

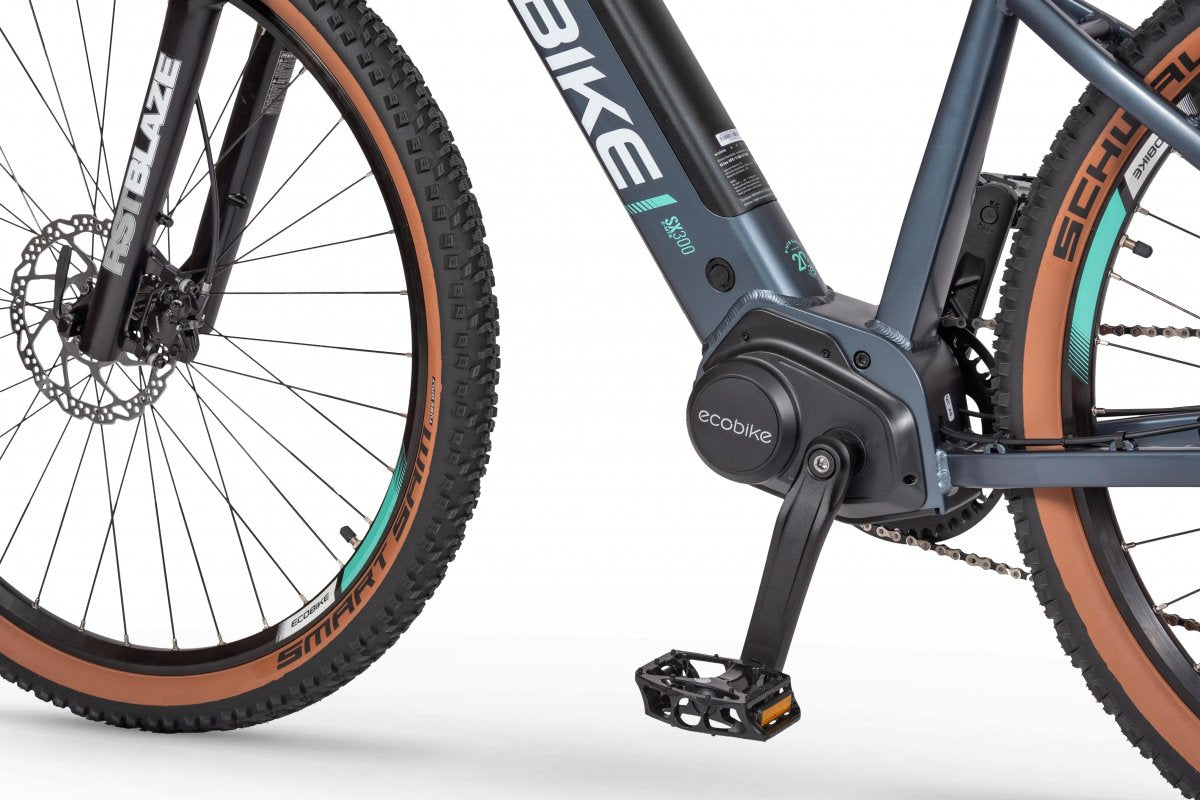

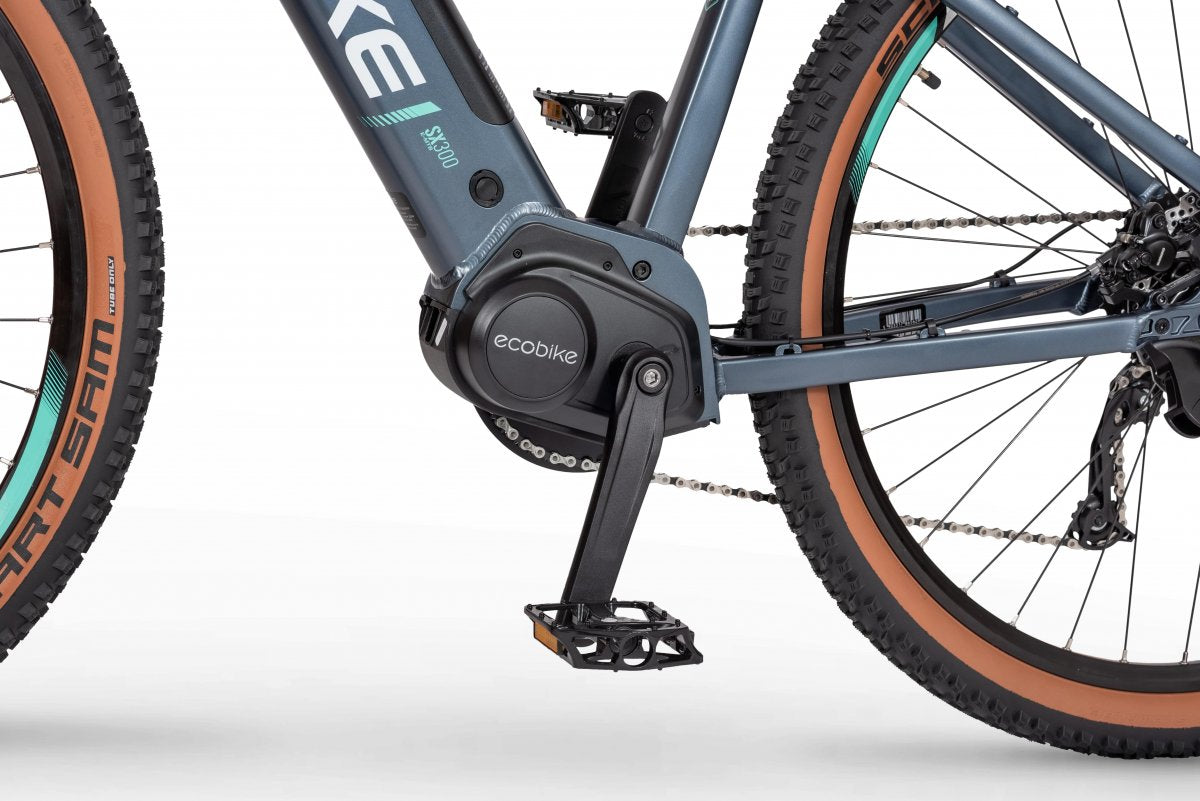

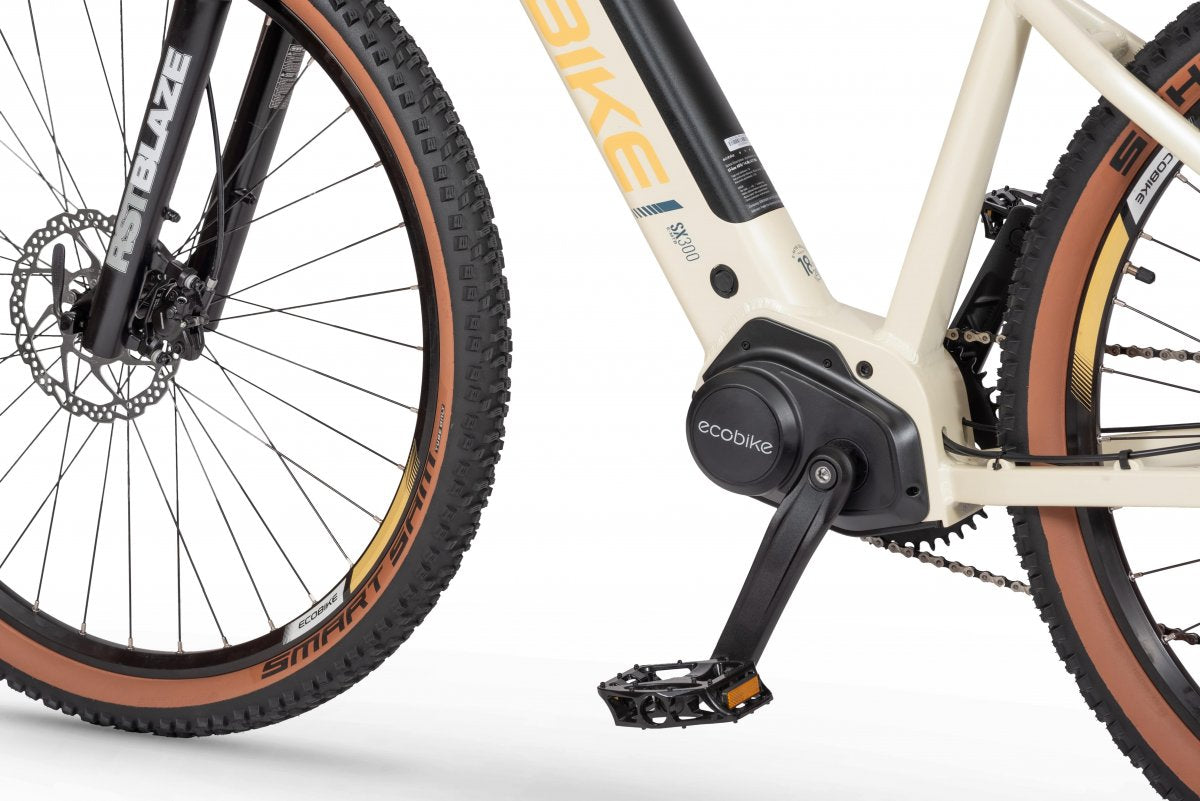

The electric support is based on the ANANDA® central motor technology, proven and appreciated for years by users of our bikes, which generates up to 100 Nm of torque. It easily helps to overcome even difficult hills and provides a lot of driving pleasure.
The system is powered by a Greenway/LG battery. You can configure your bike with a package with a capacity of 11.6 or 14 Ah 48V. The Smart BMS technology we use ensures the efficient operation of the battery and contributes to its longer life.

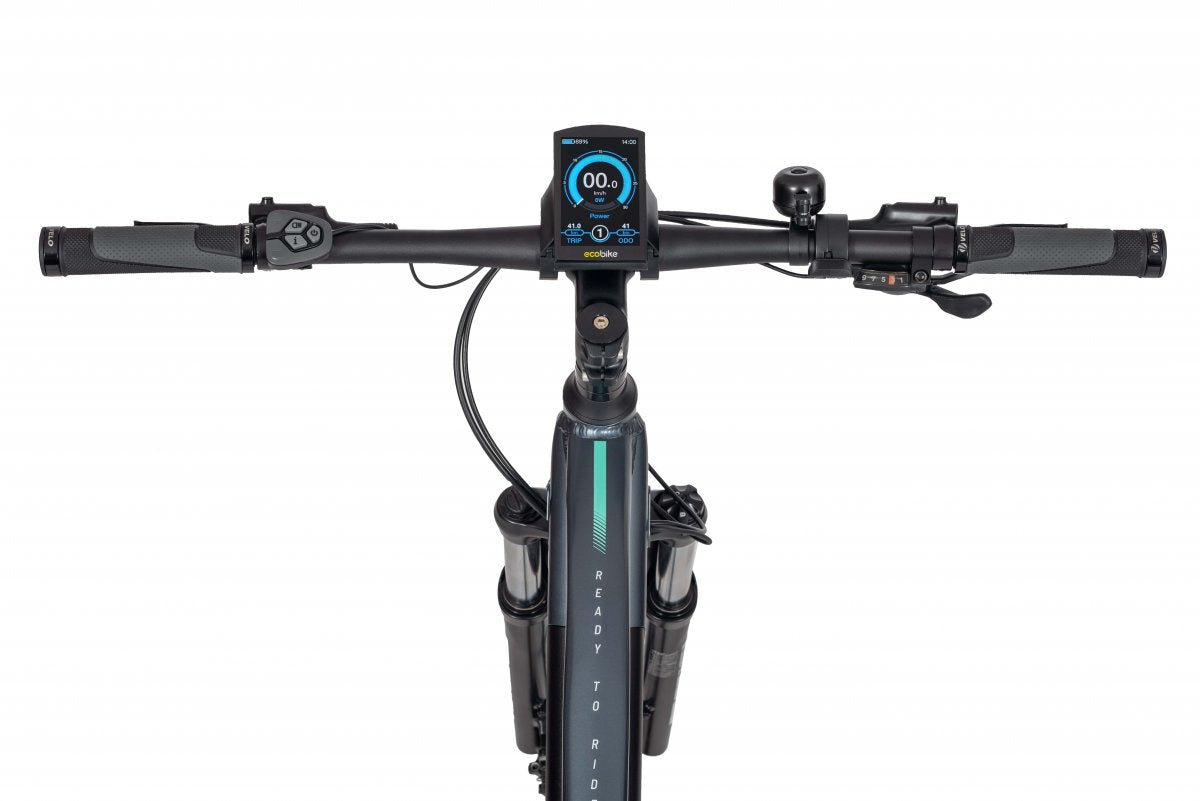

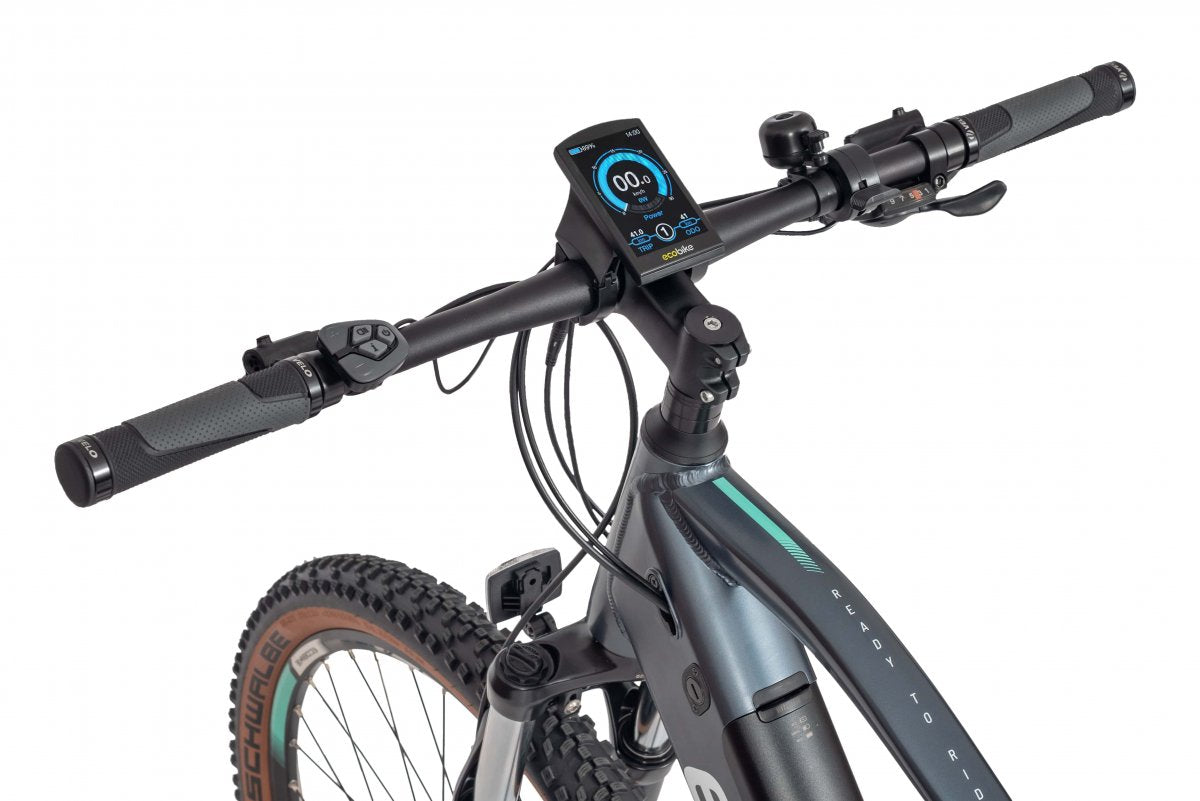

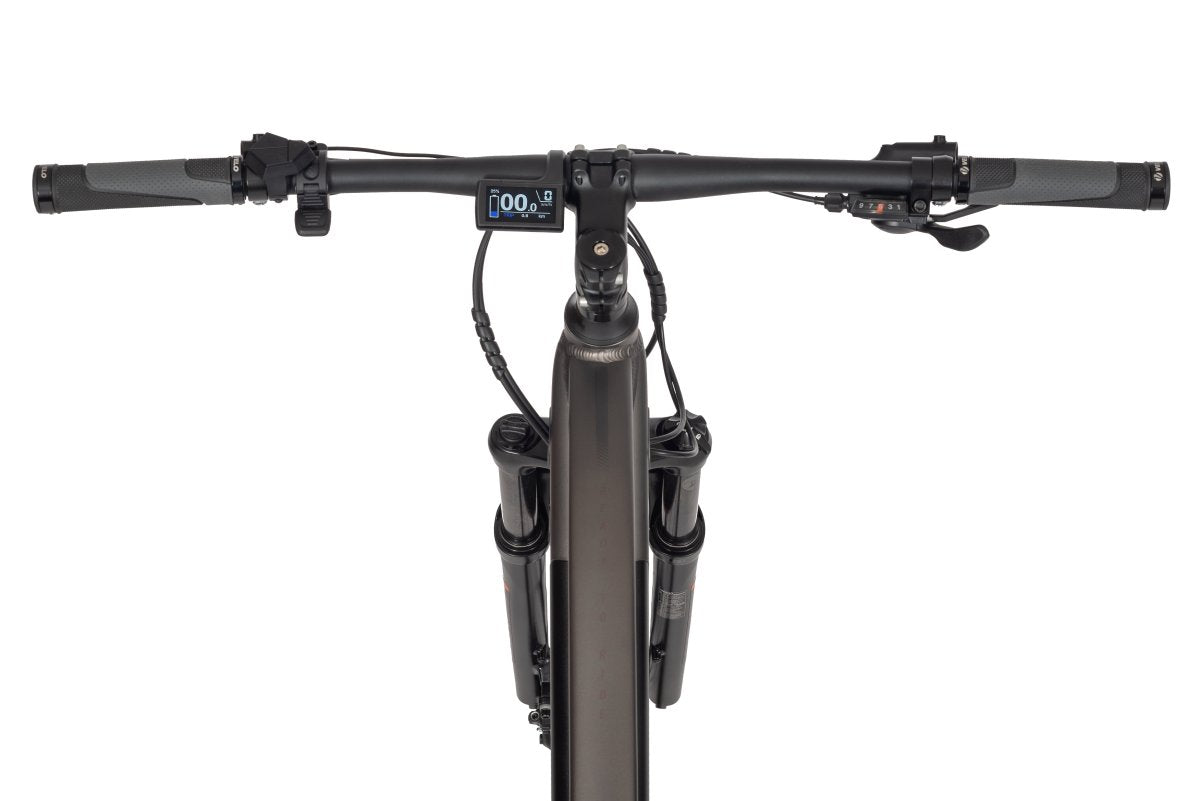

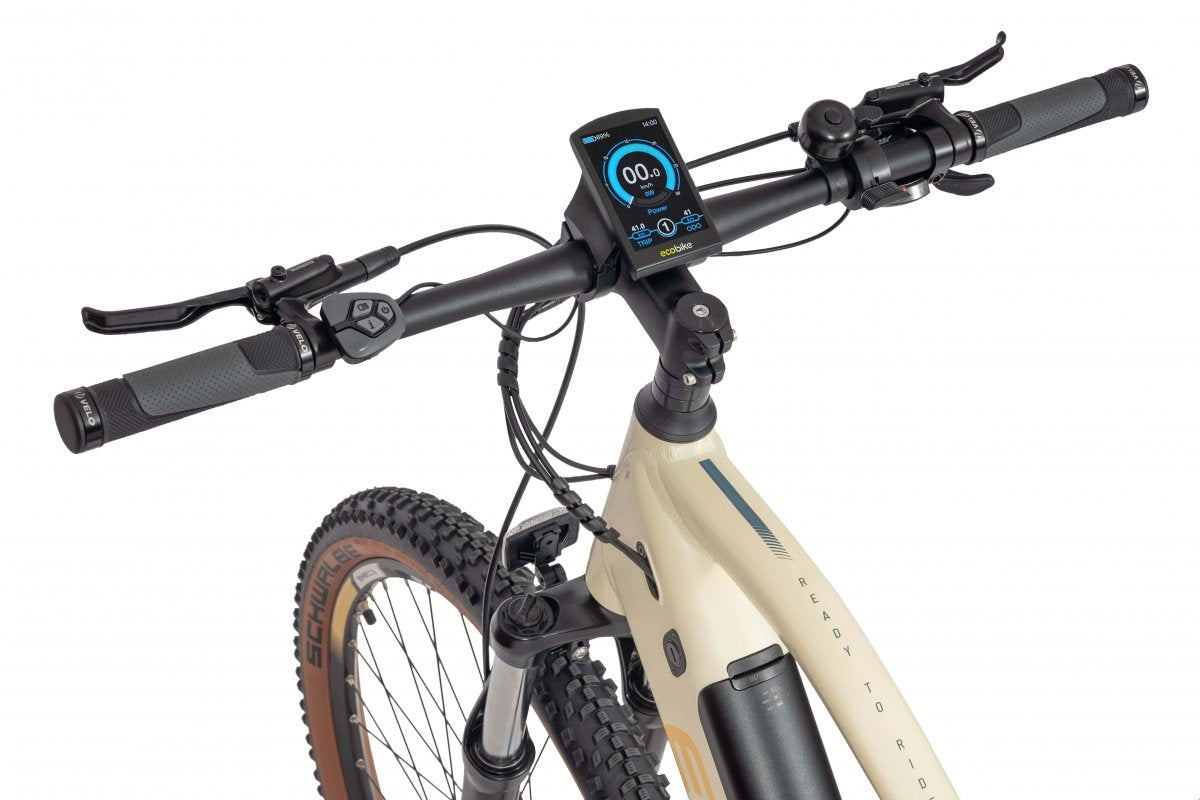

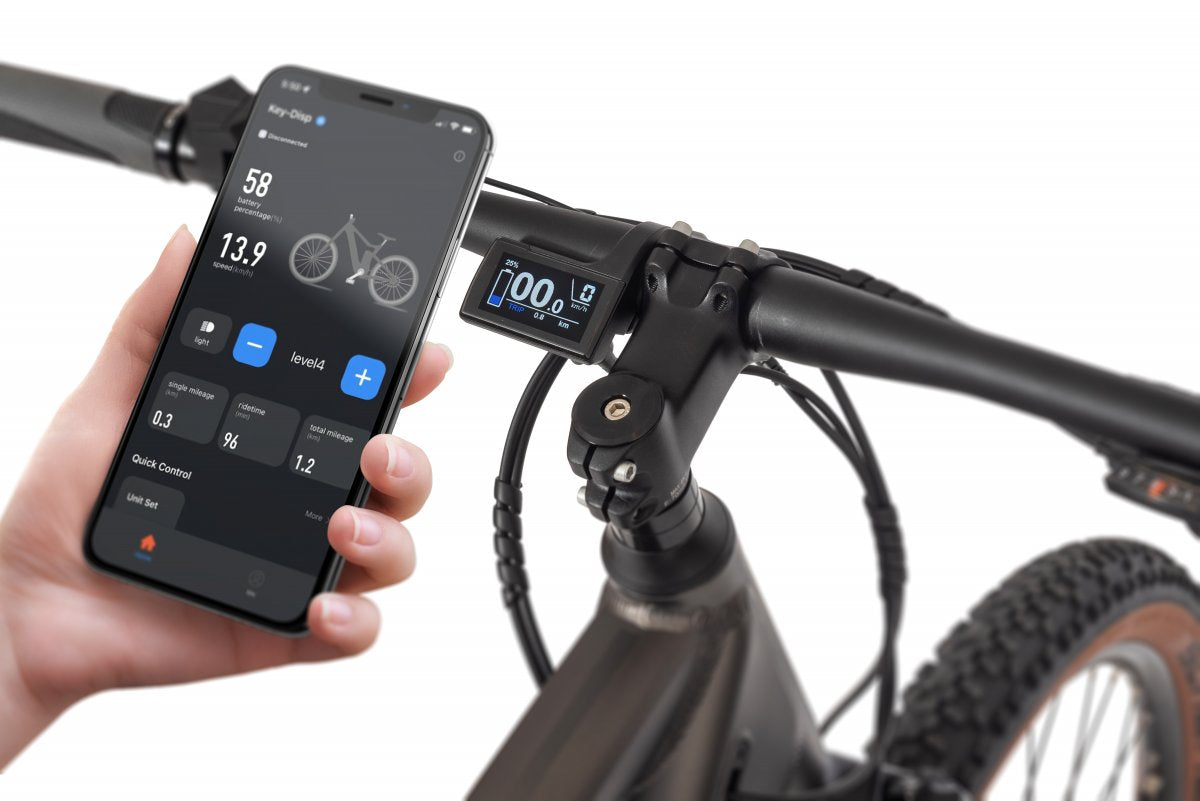

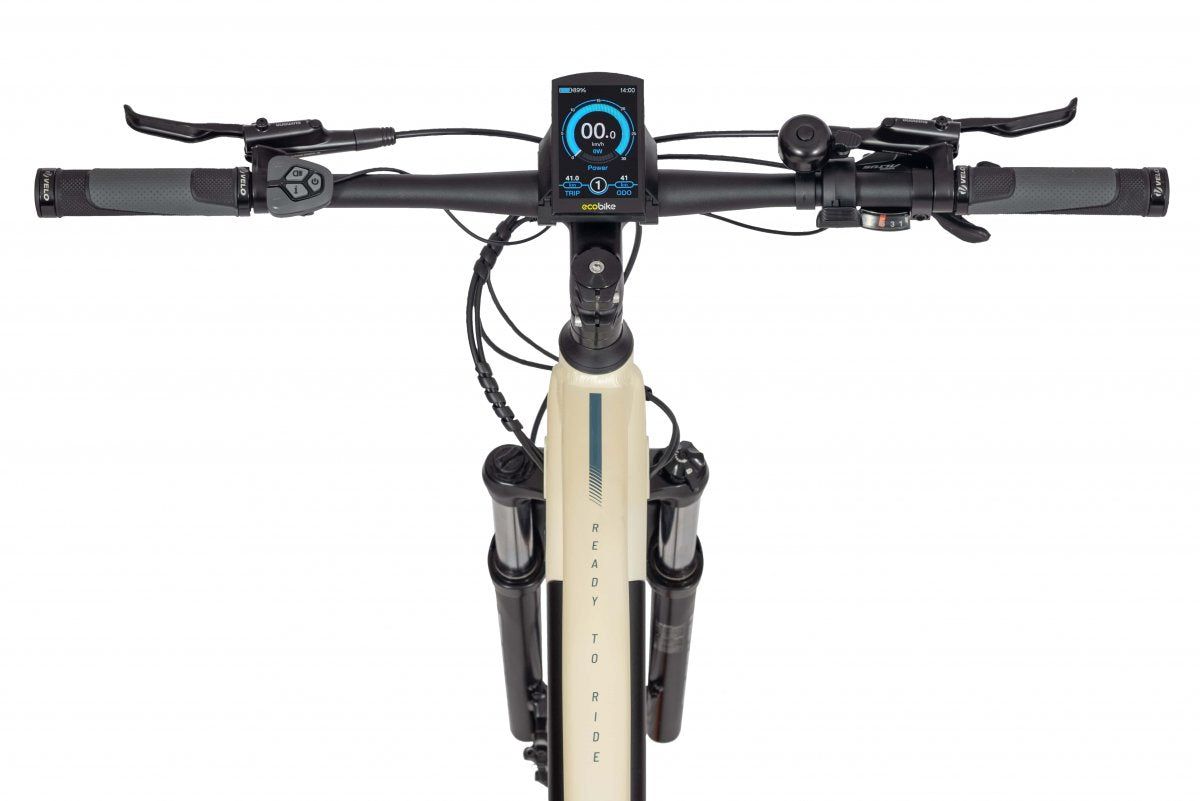

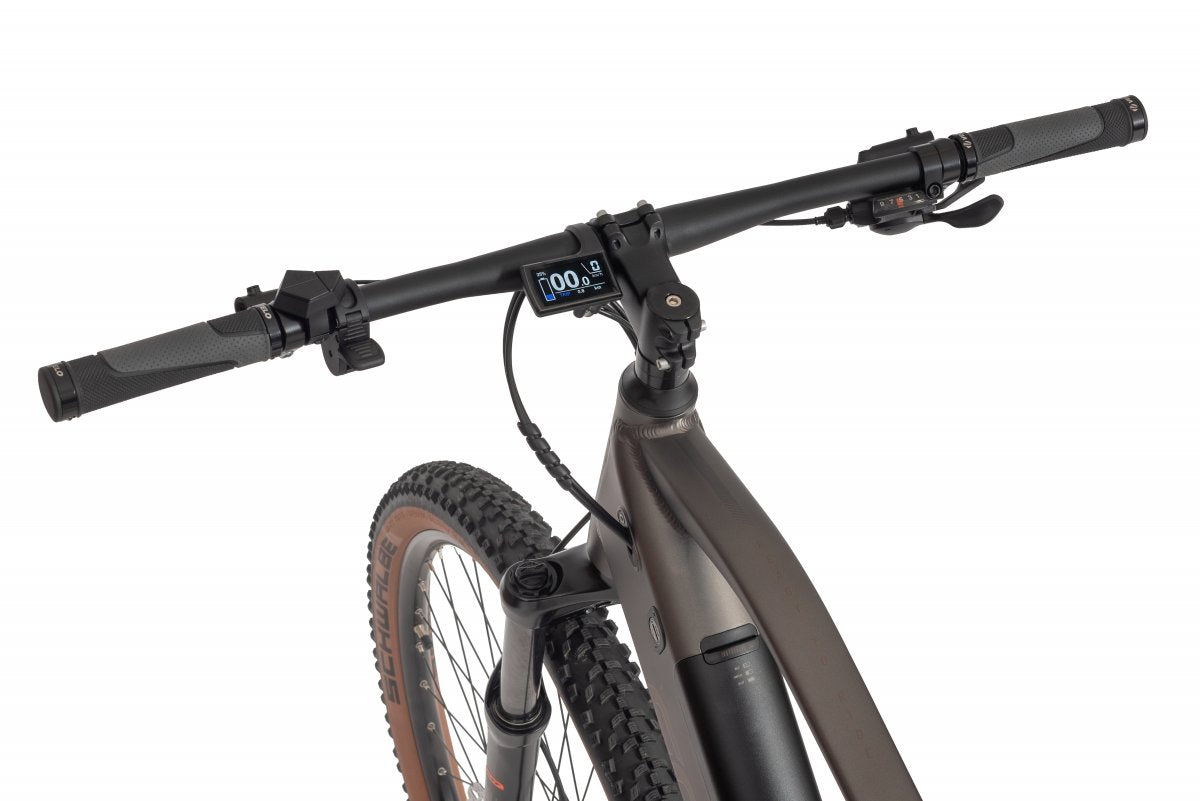

The operation of the system is supported by a control panel with a color display. It has been equipped with a twilight sensor that automatically adjusts the screen backlight to the conditions in which you move. Its friendly interface provides intuitive navigation between individual functions and settings.
The motor and battery have been carefully placed to maintain the best possible weight distribution.
At Ecobike, we tend to use good accessories from proven suppliers.

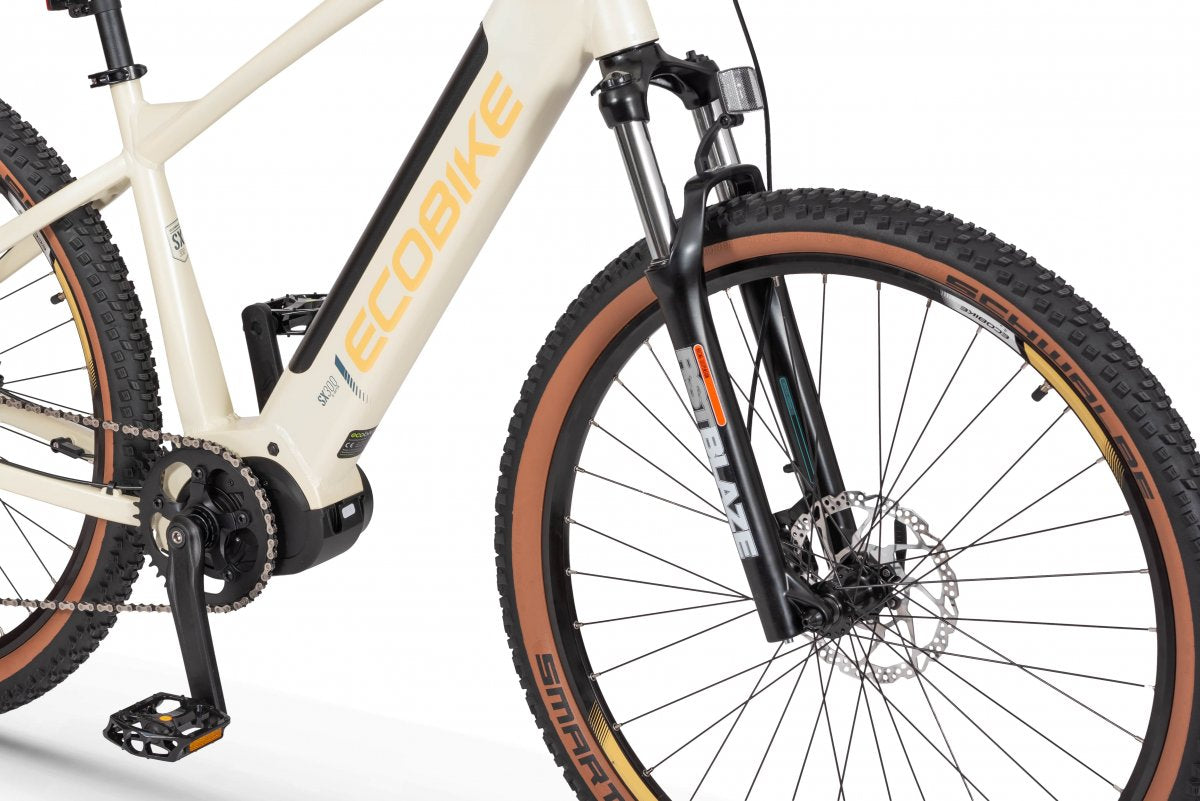

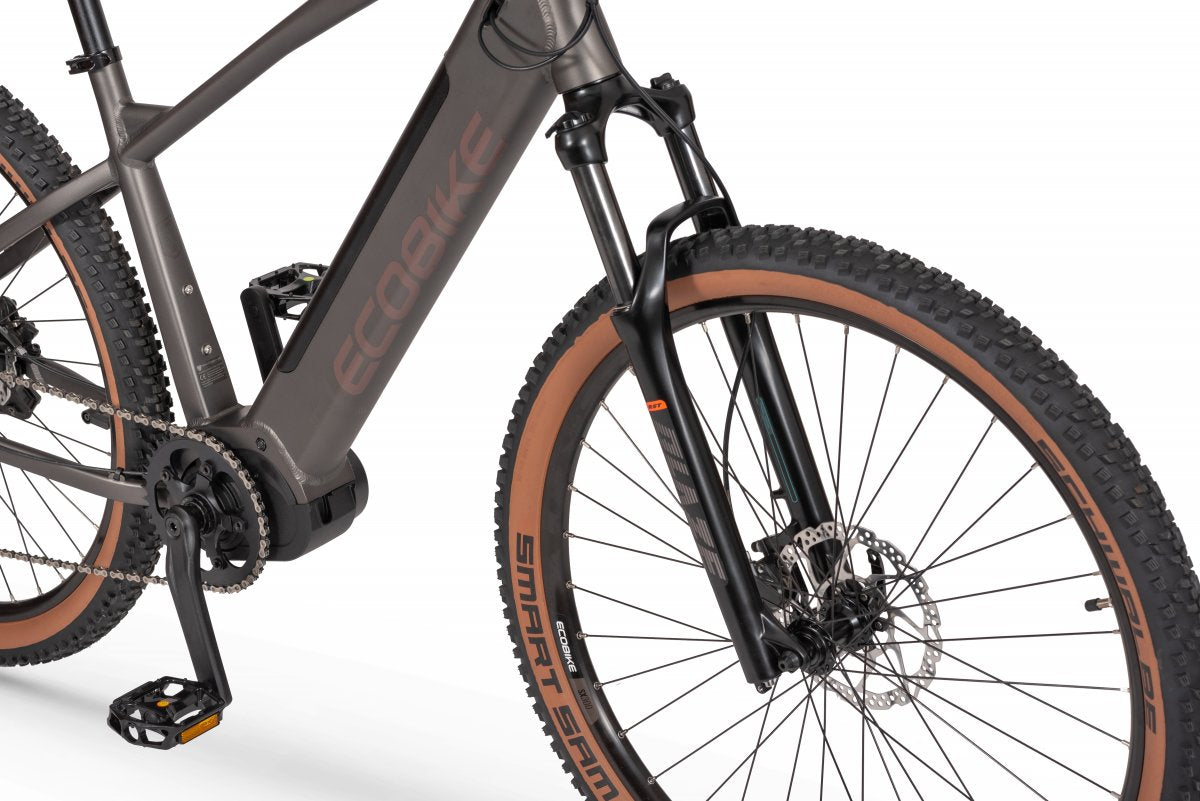

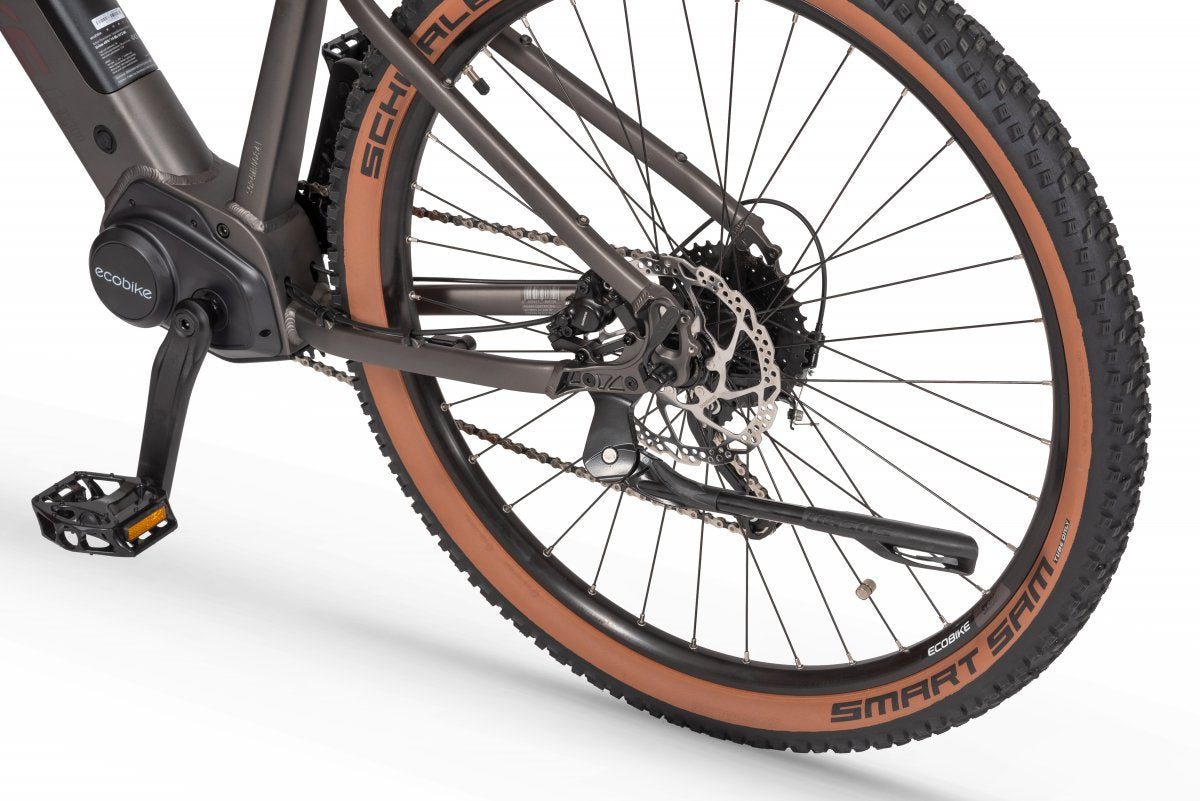

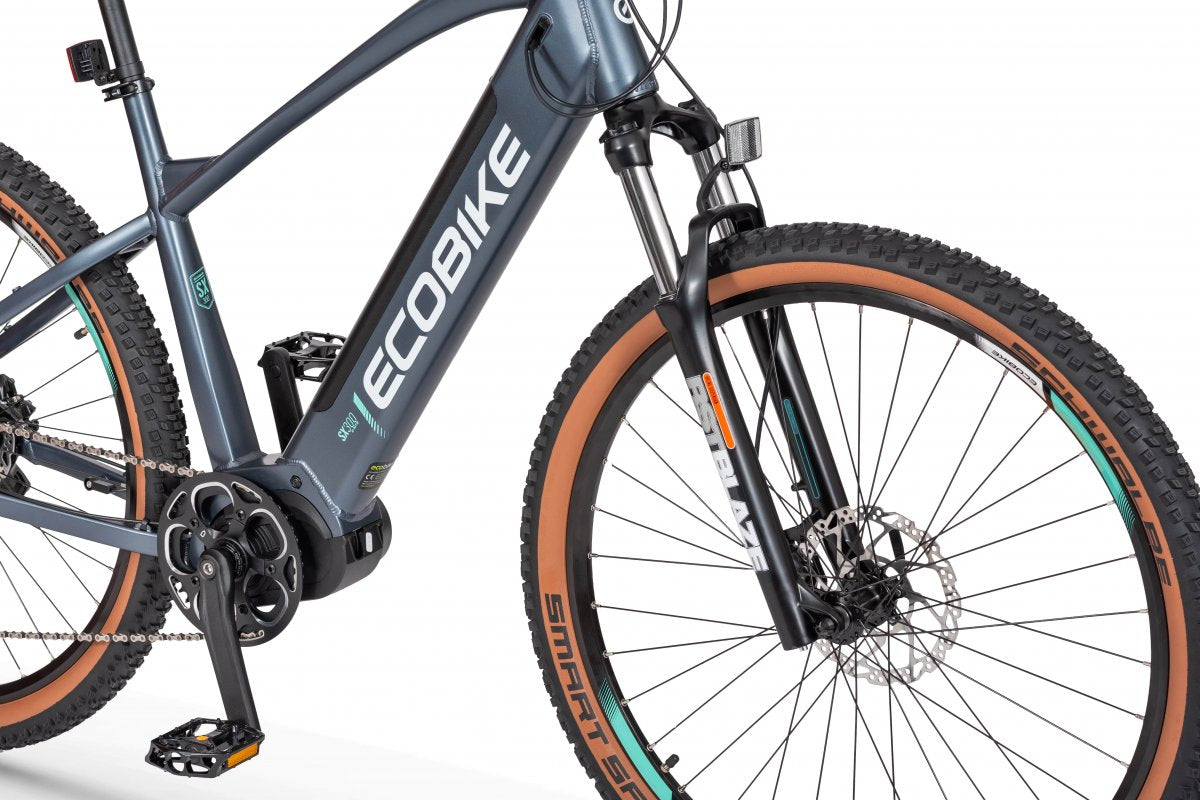

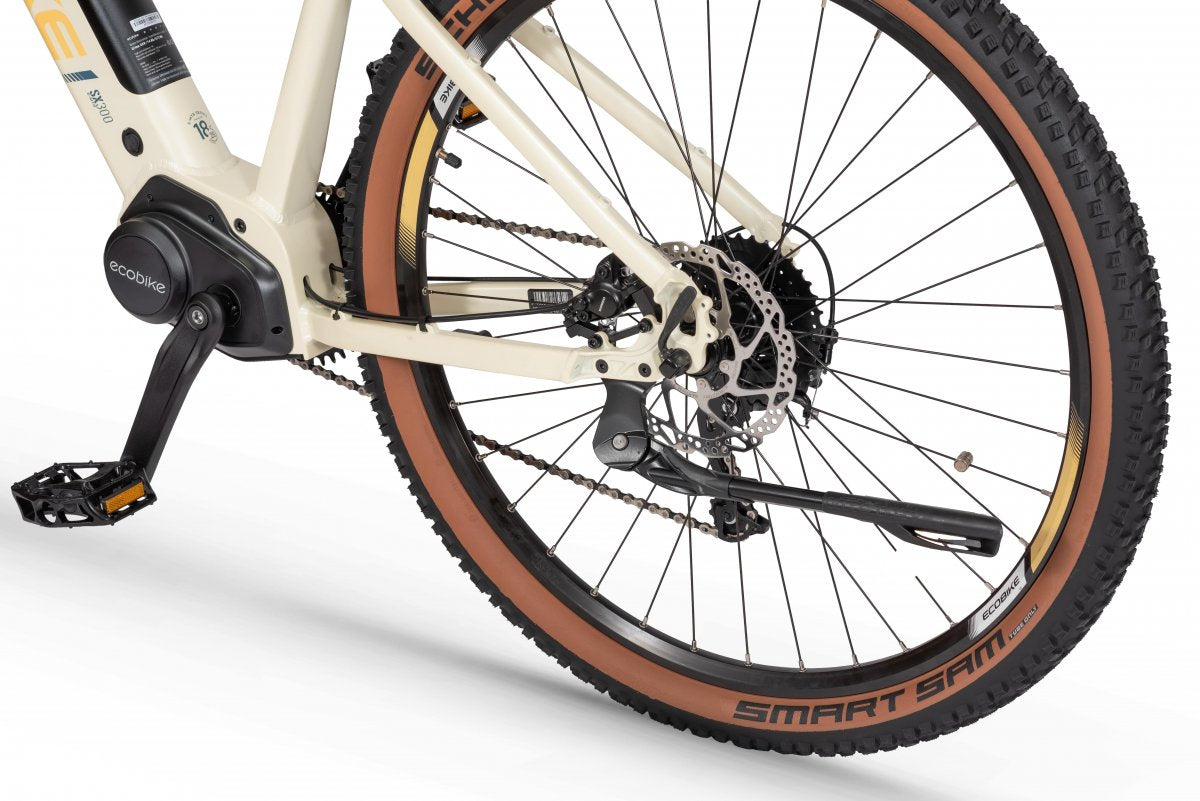

We got great traction with 29 x 2.35 Schwalbe Smart Sam Performance tires and a 100mm SunTour XCM fork with great shock absorption.

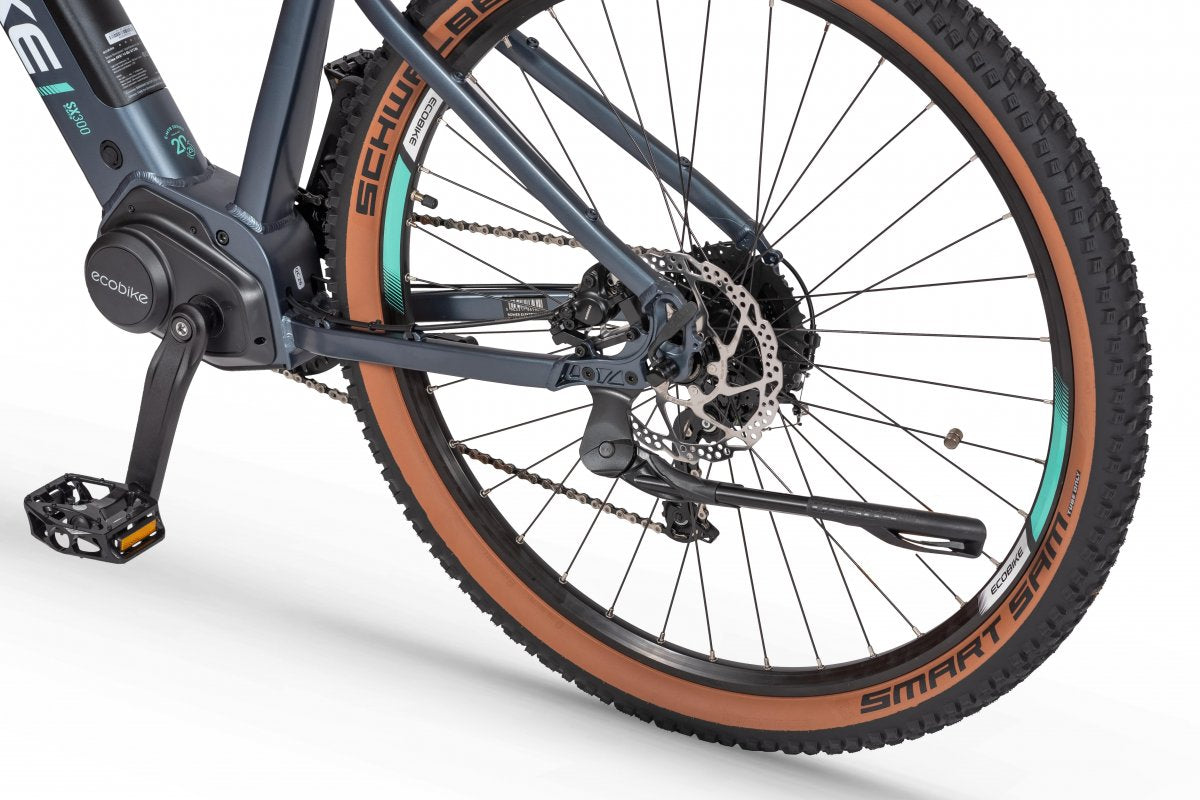

An e-bike with a powerful engine requires a solid derailleur - in this case we focused on Shimano® ALIVIO with 9 gears.
In difficult conditions, brakes are the basis of safety. Shimano® hydraulic disc brakes take care of it on the SX300.
Ecobike SX300 will allow you to discover not only beautiful places, but above all new possibilities!
Geometry
A Effective top tube length (mm)
617
B Head tube (mm)
165
C Seat tube length (mm)
500.10
D Wheel base (mm)
1 210
E Seat tube angle (degrees)
73
F Headset angle (degrees)
68
Technical specification
Bicycle
Frame
21" hydroformed aluminum
Fork
RST BLAZE TNL29“ travel 100 mm
Wheel
29" reinforced three-chambered rims / Sapim spokes
Tires
29" x 2.35 Schwalbe Smart Sam Performance Bronze
Front hub
TORA 36H, centerlock
Rear Hub
Shimano TX505, 36H, centerlock
Handlebar
Zoom 720 mm 31.8
Handlebar stem
Zoom 7° / 70 mm
Grip
Velo VLG-776
Brakes
Shimano MT200 Hydraulic
Shifters
Shimano Alivio 9 speed
Grip
Shimano Altus 9 speed
Freewheel
Shimano HG-200 11-36T 9 speed
Chain / Belt
KMC e9 Sports Silver
Crank
Prowheel 42T
Pedals
FP-963
Saddle
Velo VL-3363
Seat post
Promax 30.9 / 350 mm
Front lights
not applicable
Rear light
not applicable
Maximum load
125 kg
Weight
24.7 kg
Battery
Cells brand
LG
Capacity Wh
672 Wh
Type
Li-ion
Voltage
48 V
Range
up to 135 km
E-bike system
Motor
Ananda
Model
M81
Type
Middrive
Voltage
48 V
Torque
100 N.m
Power
250 W
Controller
ANANDA
Speed
25 km/h in accordance with EU standard EN 15194
Display
Display model
KD-586
Display brand
Ecobike
Display type
color LCD
SAFETY AND QUALITY FIRST
Bikes are all about the equipment. Ecobike e-bikes combine reliable technologies from established manufacturers with durable electric motors and long-lasting batteries.All Ecobike products are manufacured according to strict European Union regulations & standards: EN15194 / EPAC / ISO4210-2
