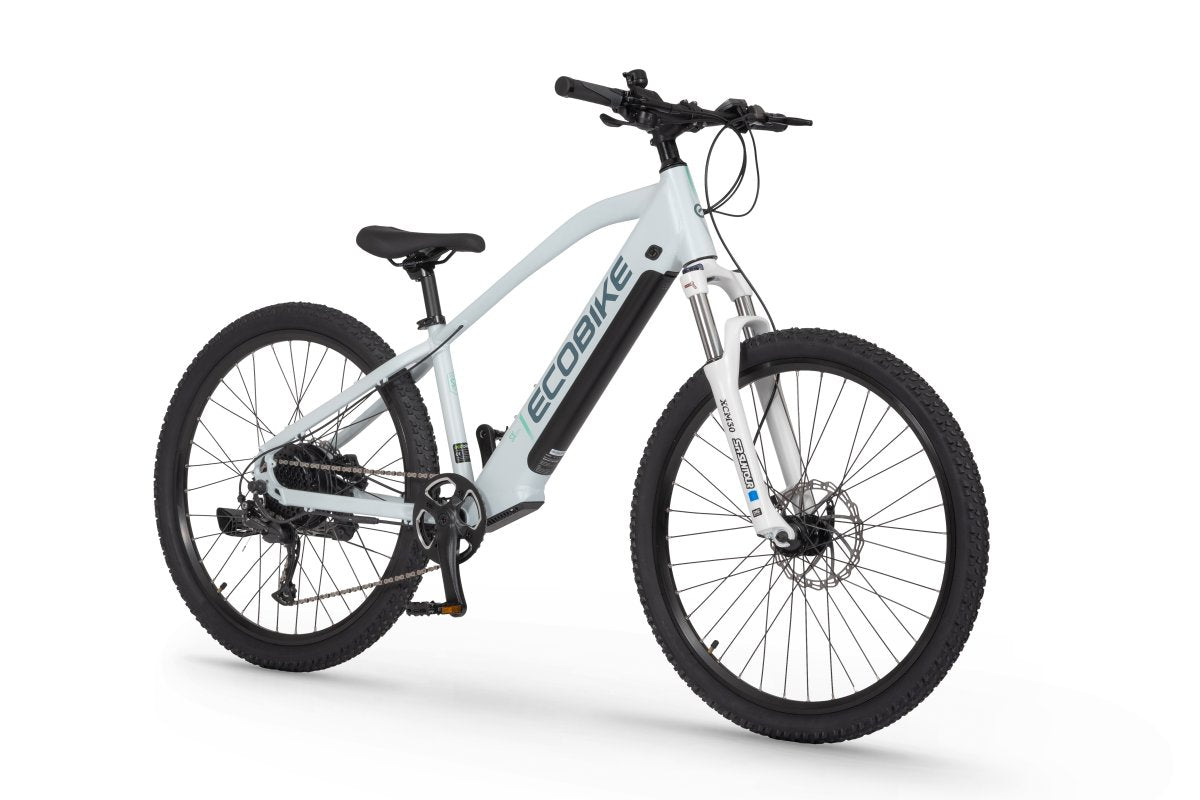

Ecobike SX Youth White 14" Electric bike
Ecobike SX Youth White 14" Electric bike
Couldn't load pickup availability
36V 14.5Ah/17.5Ah
Free Shipping. Delivery To European Union countries 3-7 business days. Tracking information will be provided.

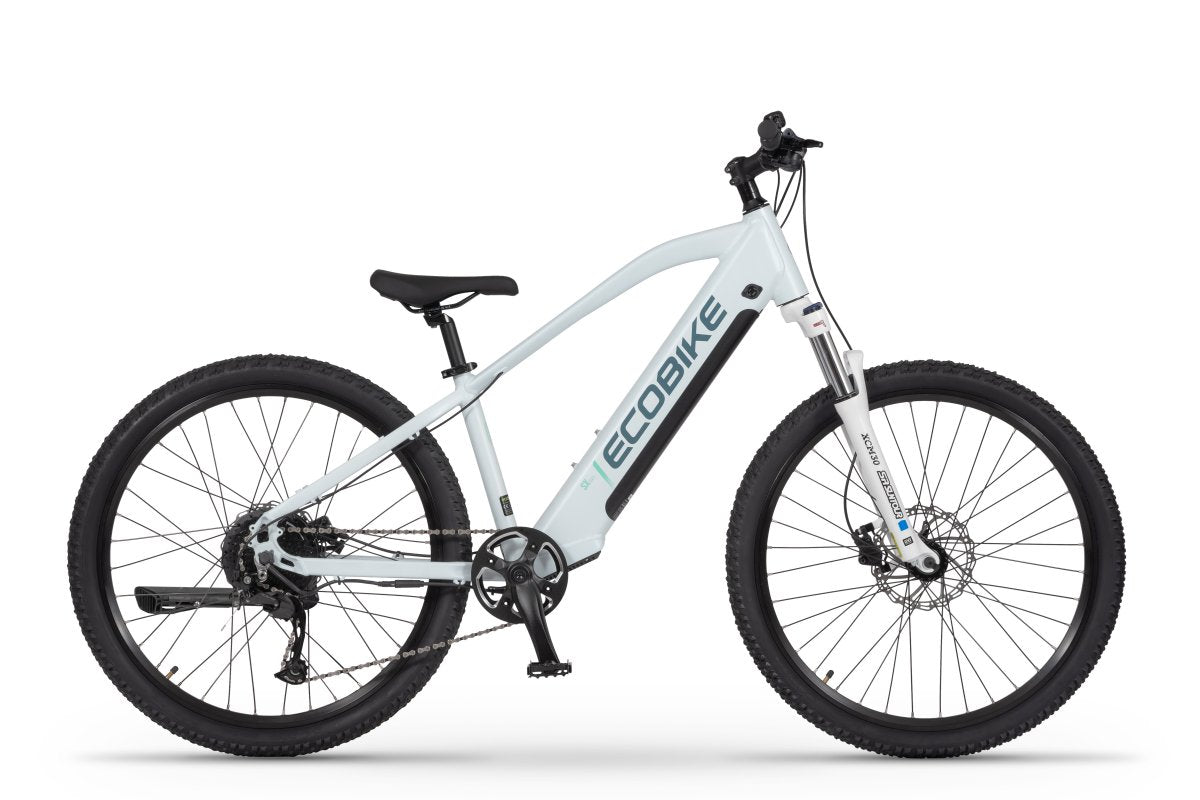

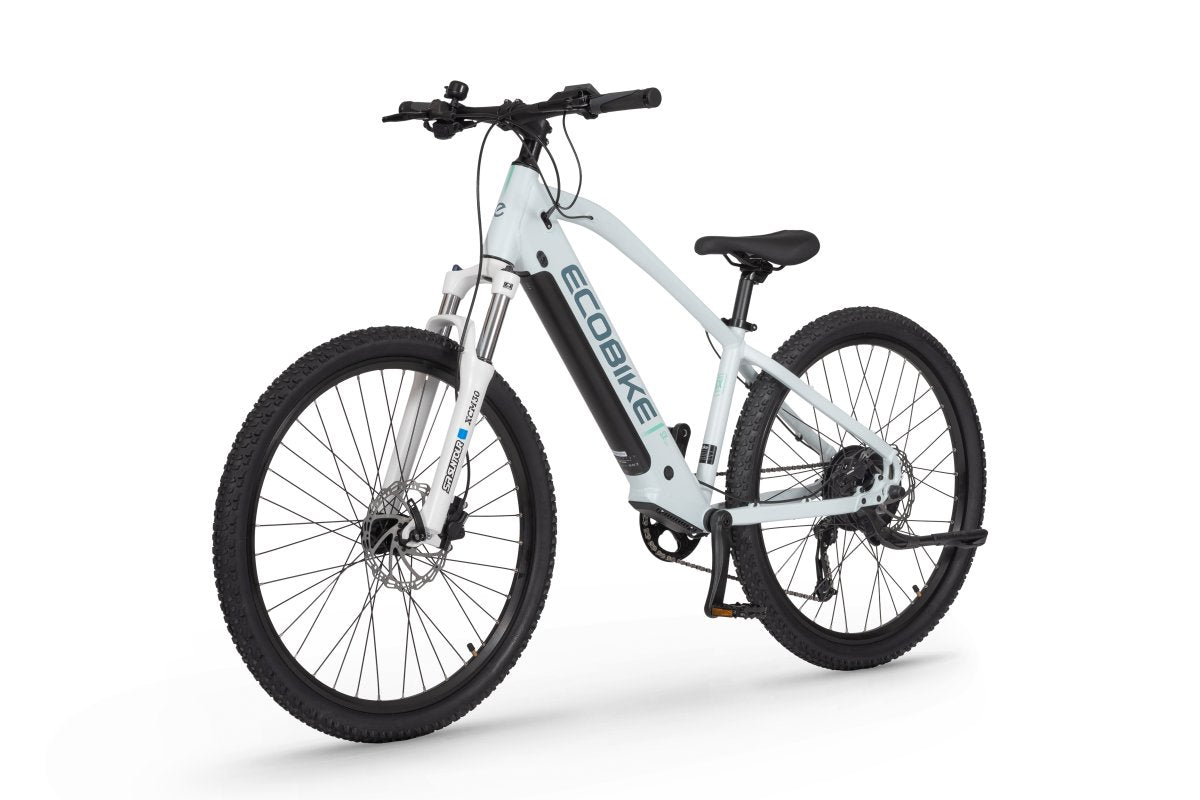

Ecobike SX Youth is the kid version of the popular SX series.
Ergonomic and solid construction defined for younger users will be perfect for cycling adventures, and reliable technology will provide young riders with emotions that will take them away from computer games for a long time.

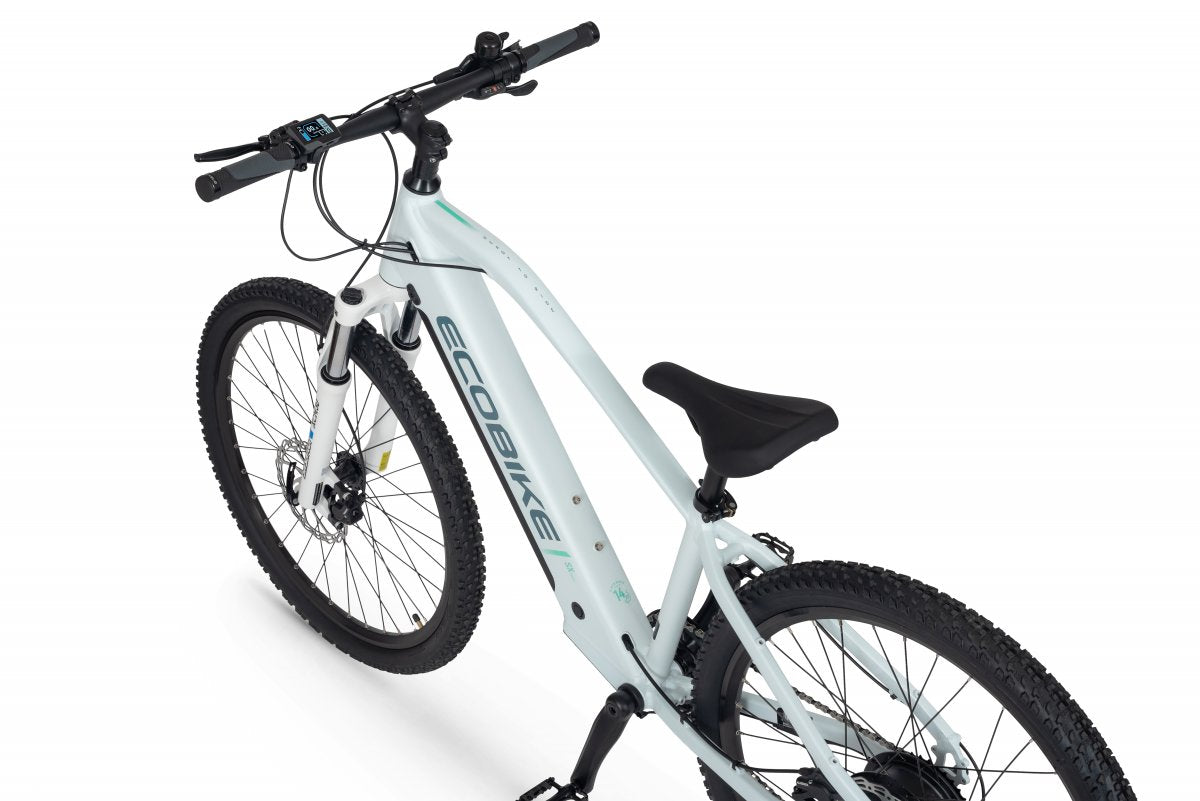

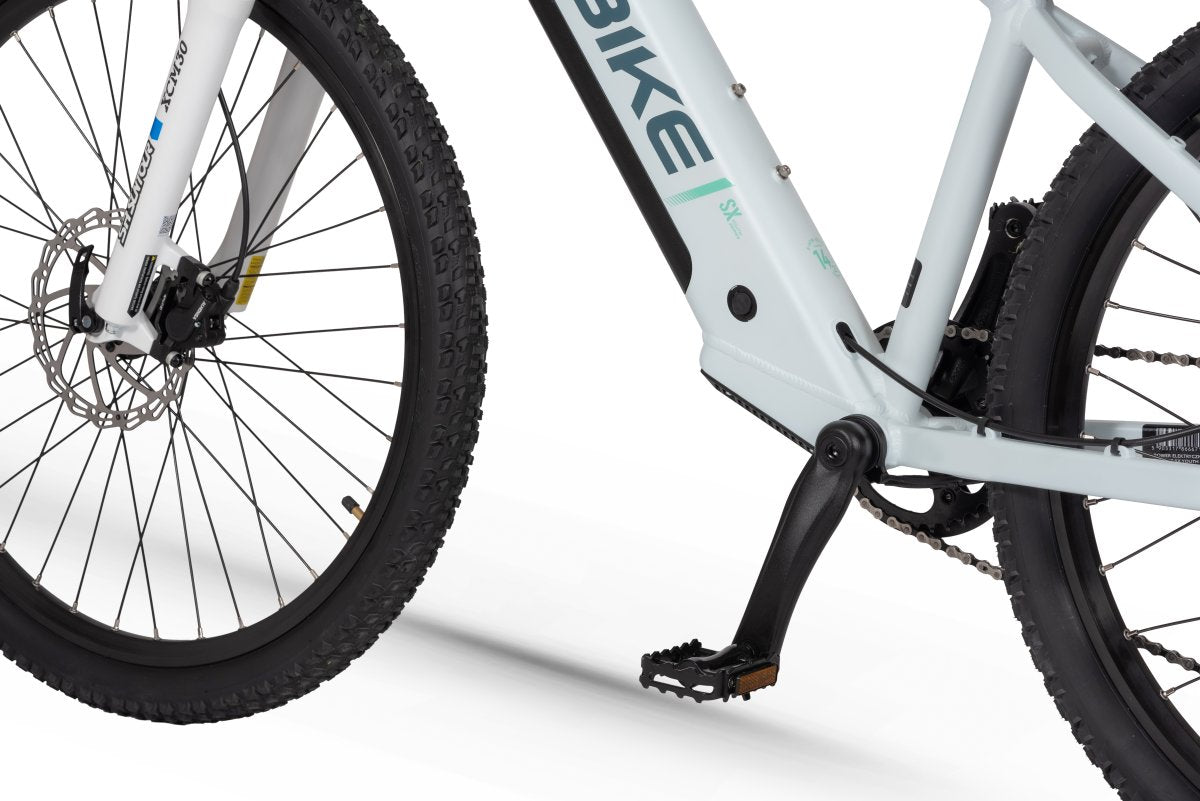

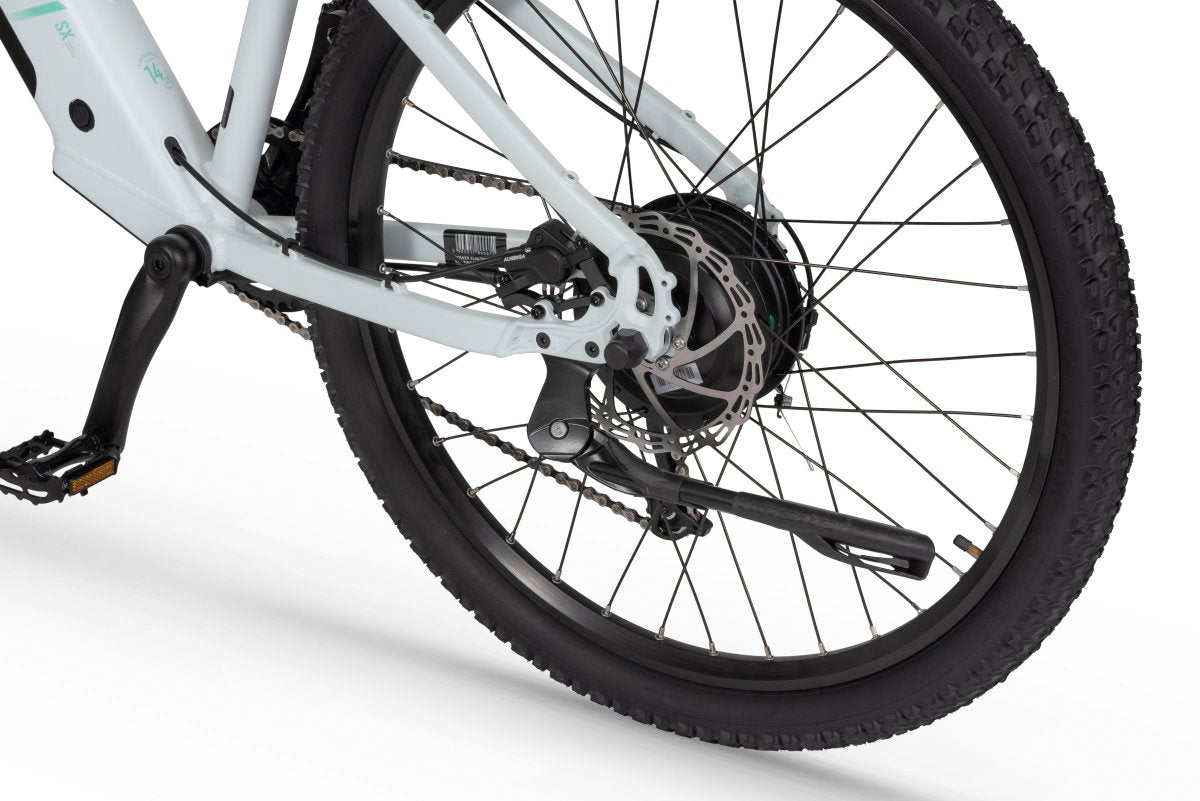

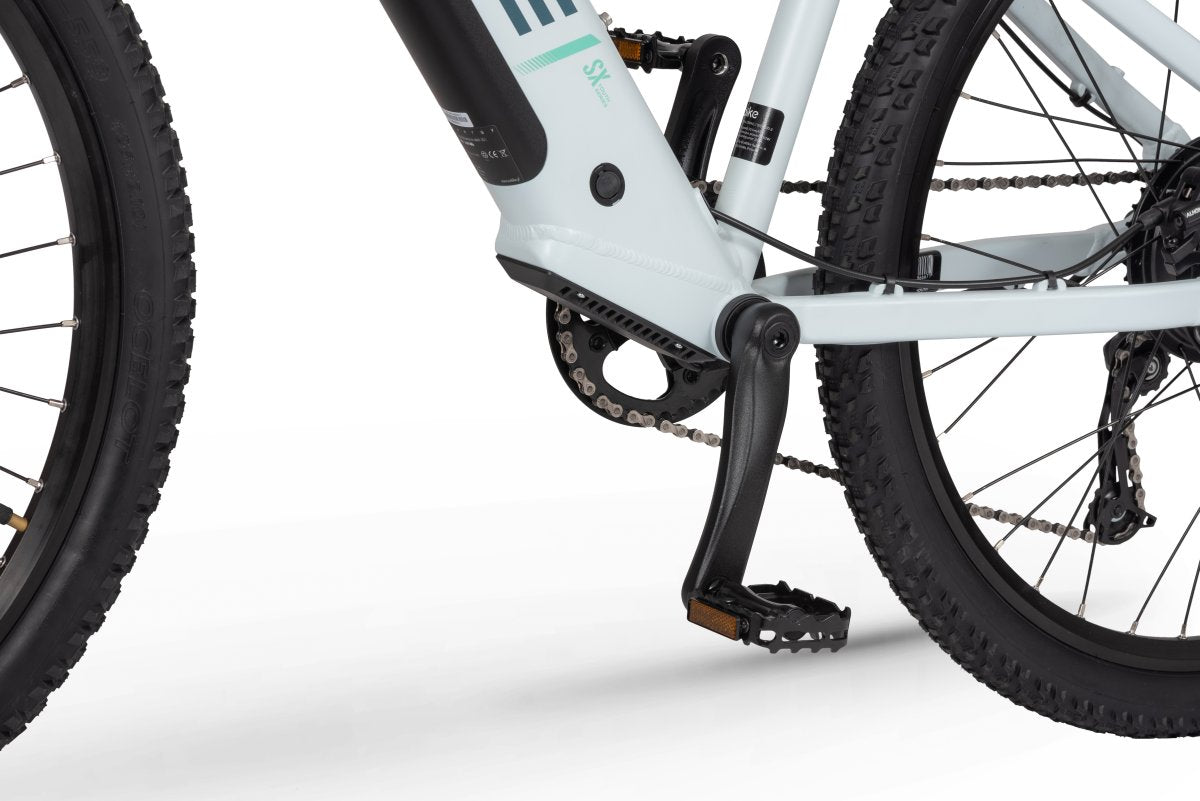

The bike is based on durable frame construction, proven in other models. The battery integrated into the lower frame and the motor in the rear hub provides well weight distribution, which is especially important for young riders.
SX Youth is a heavy machine equipped with proven components, including:
• Shimano® Alivio derailleur with 9 gears

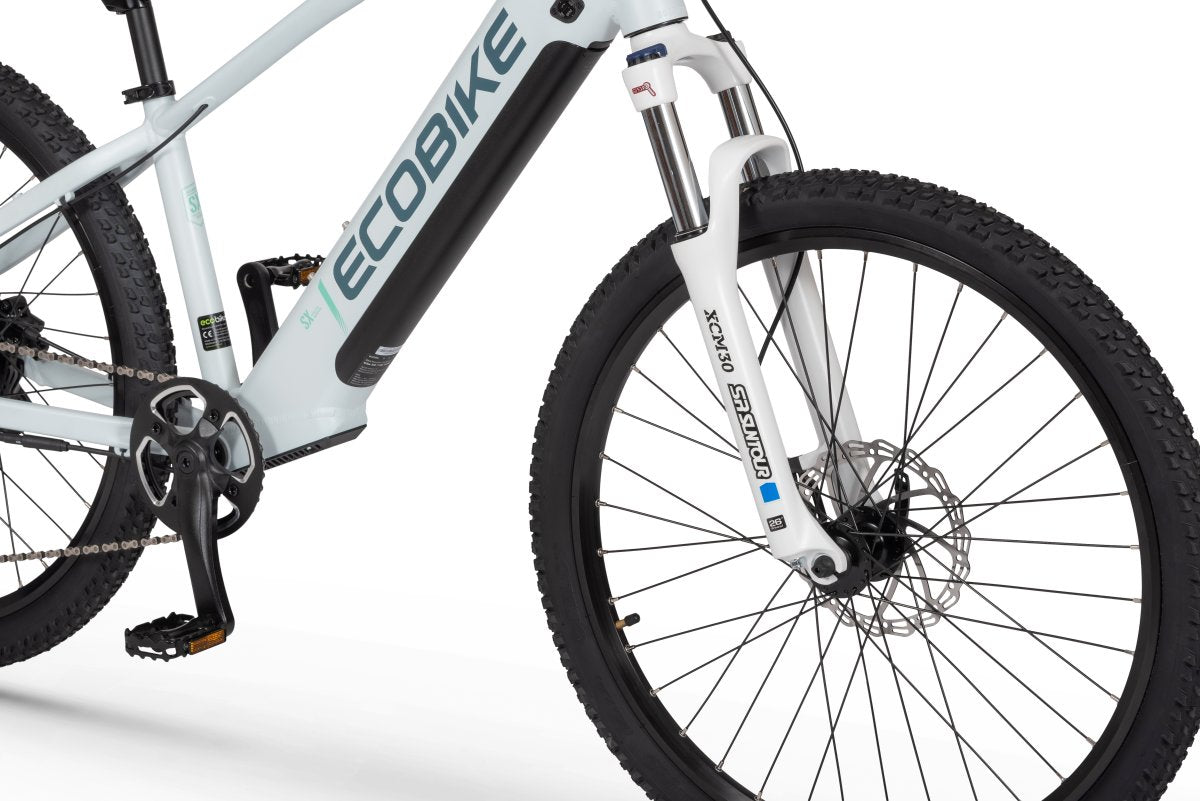

• SunTour® XCM suspension fork
• Alhonga® hydraulic disc brakes
• Shimano® CS-HG200 cassette

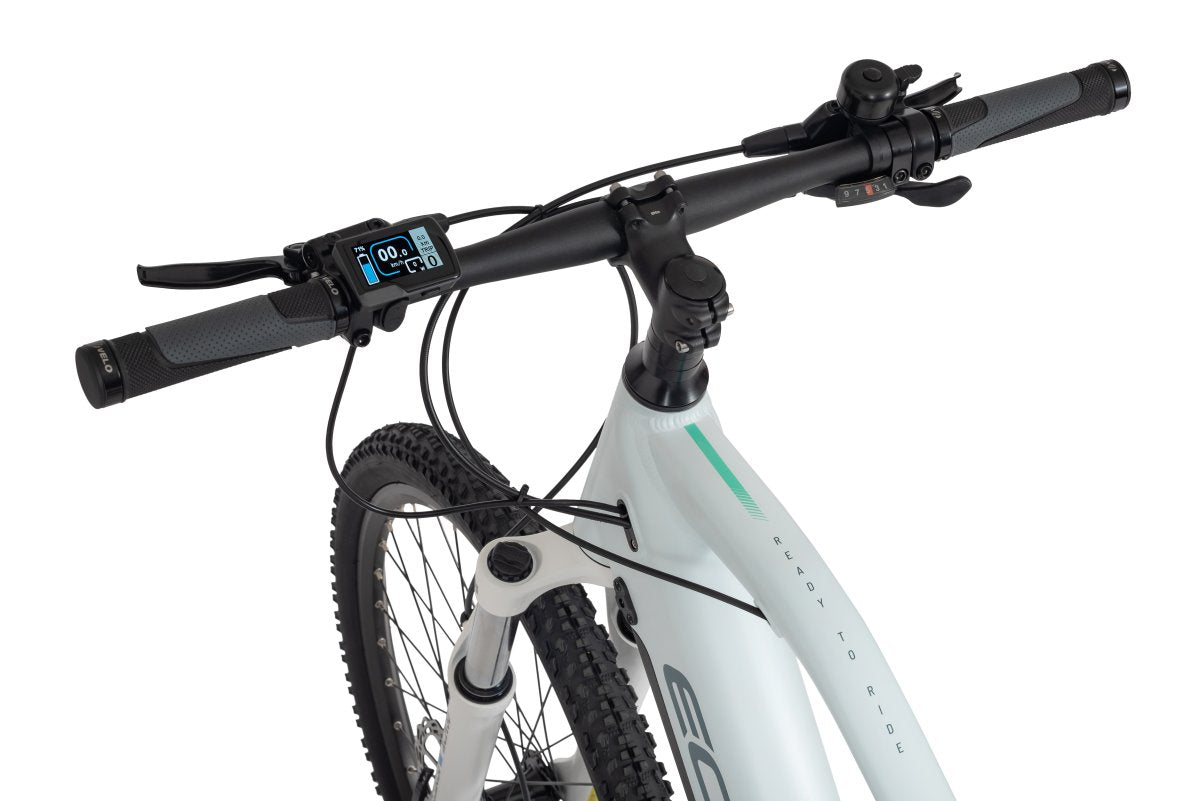

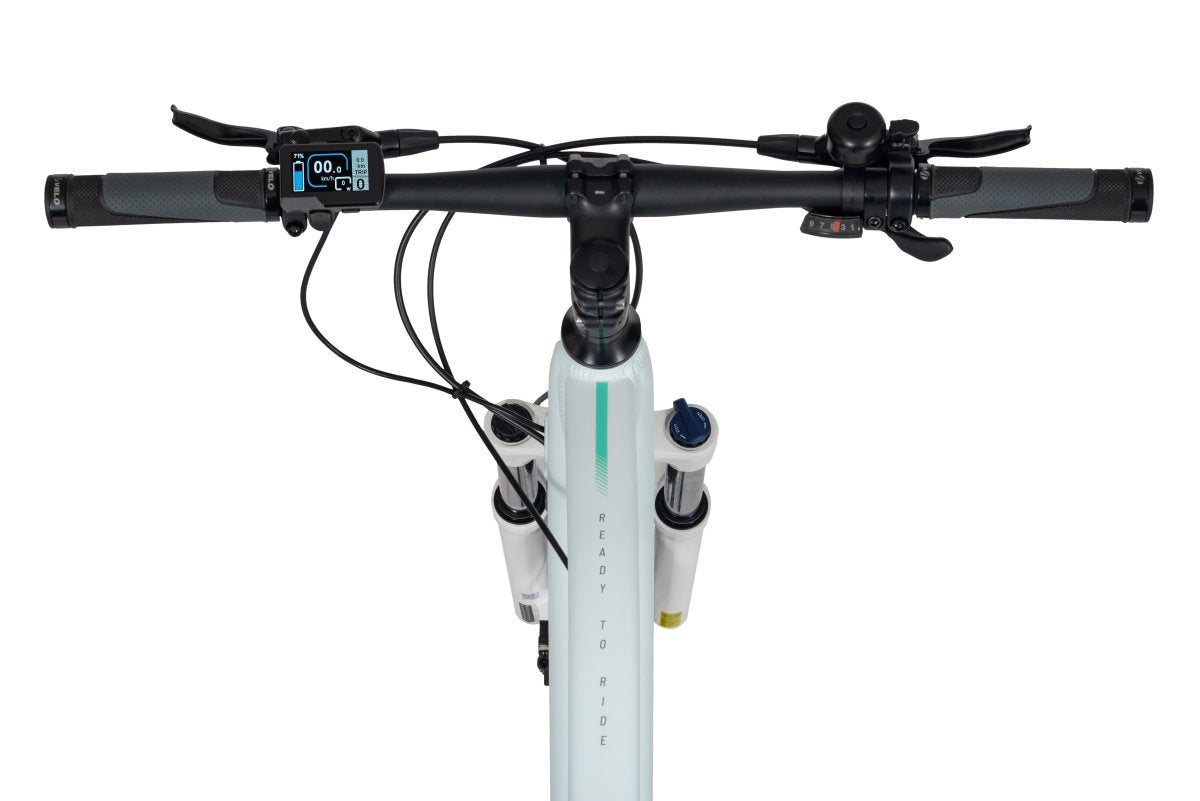

The electric system is powered by a powerful and durable Bafang® hub-motor, a strong battery, and it’s manned by an intuitive LCD display offering some of useful functions. Terrain elevations and long distances will no longer stand in the way of forwarding your child's passion for cycling.
Safety is our top priority, and e-bikes for kids come equipped with advanced features to ensure worry-free rides. From sturdy frames and responsive brakes to adjustable speed limits and user-friendly controls, these bikes are designed with utmost care to keep your child secure while having a blast.
The fun doesn't stop there! E-bikes for kids open up a whole new world of family adventures. Plan thrilling excursions, explore nature trails, and create unforgettable memories together. Watch as your child's confidence soars while they master new skills and gain a deep appreciation for the great outdoors.
Geometry
A Effective top tube length (mm)
569.90
B Head tube (mm)
160
C Seat tube length (mm)
356
D Wheel base (mm)
1 068
E Seat tube angle (degrees)
74.50
F Headset angle (degrees)
69
Technical specification
Bicycle
Frame
14" hydroformed aluminum
Fork
SR SunTour XCM travel 100 mm
Wheel
26" reinforced three-chambered rims, Sapim spokes
Tires
26" x 2.1 Rubena Ocelot
Front hub
Modus
Rear Hub
Modus
Handlebar
Zoom 700 mm 31.8
Handlebar stem
Promax 0 - 40° / 60 mm
Grip
Velo VLG-776
Brakes
Alhonga HJ-HT472 Hydraulic
Shifters
Shimano Alivio 9 speed
Grip
Shimano Altus 9 speed
Freewheel
Shimano CS-HG200-9 11-36T 9 speed
Chain / Belt
KMC
Crank
Prowheel Pioneer 152 mm
Pedals
VP
Saddle
Velo VL-4457
Seat post
Promax 27.2 / 300 mm
Front lights
not applicable
Rear light
not applicable
Maximum load
125 kg
Weight
22.9 kg
Battery
Cells brand
Greenway / LG
Capacity Wh
522 - 630
Type
Li-ion
Voltage
36 V
Range
up to 140 km
E-bike system
Motor
Bafang
Model
SWX02-C
Type
Rear hub
Voltage
36 V
Torque
45 N.m
Power
250 W
Controller
Lishui WZK0251
Speed
20 km/h, unlockable up to 25 km/h
Display
Display model
KD-386
Display brand
Ecobike
Display type
color LCD
SAFETY AND QUALITY FIRST
Bikes are all about the equipment. Ecobike e-bikes combine reliable technologies from established manufacturers with durable electric motors and long-lasting batteries.All Ecobike products are manufacured according to strict European Union regulations & standards: EN15194 / EPAC / ISO4210-2
