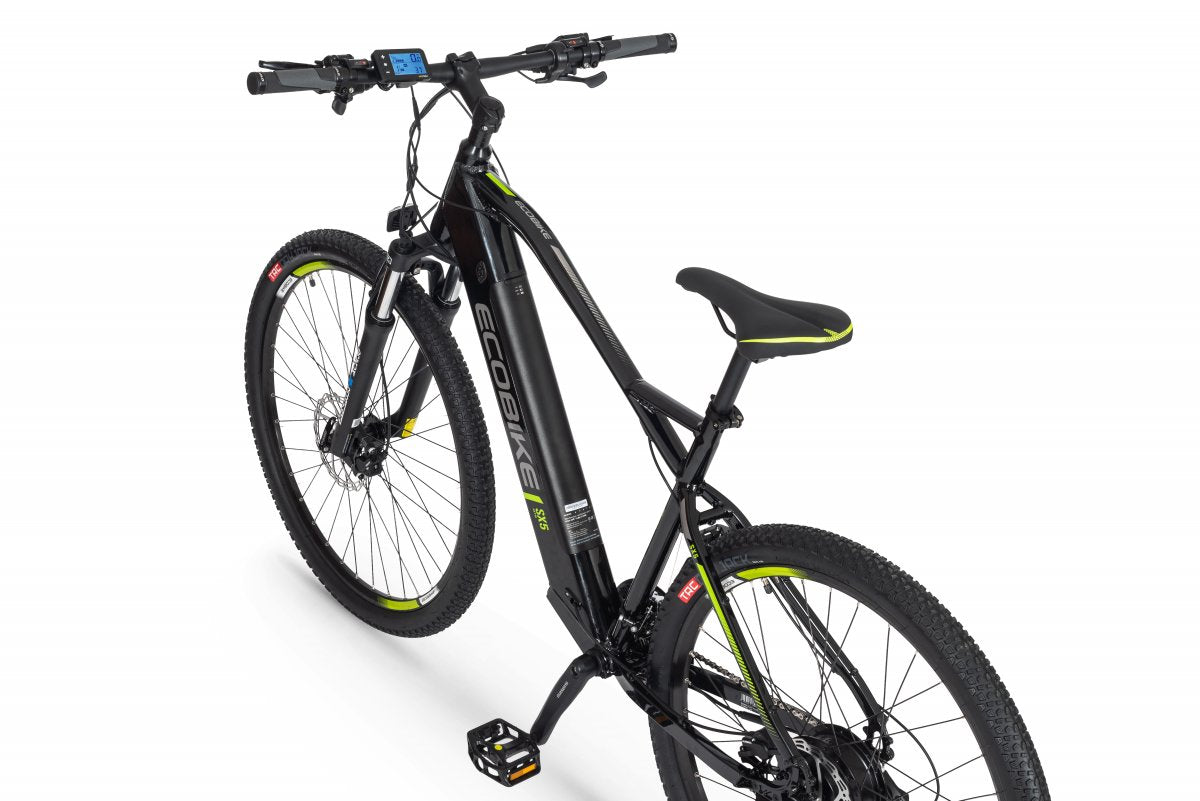

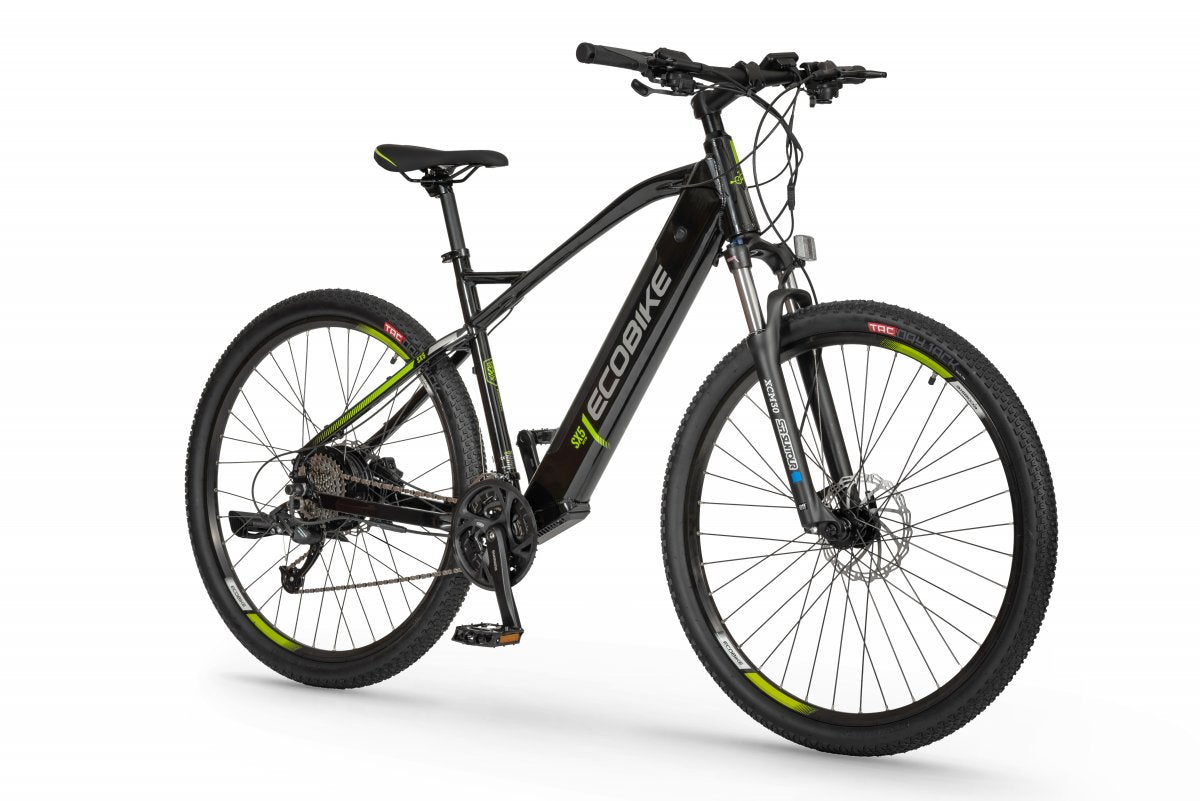

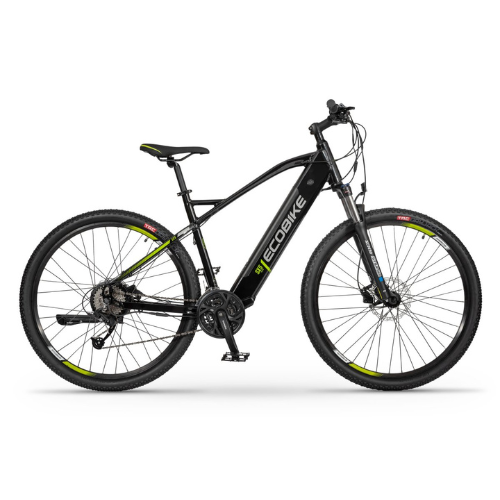

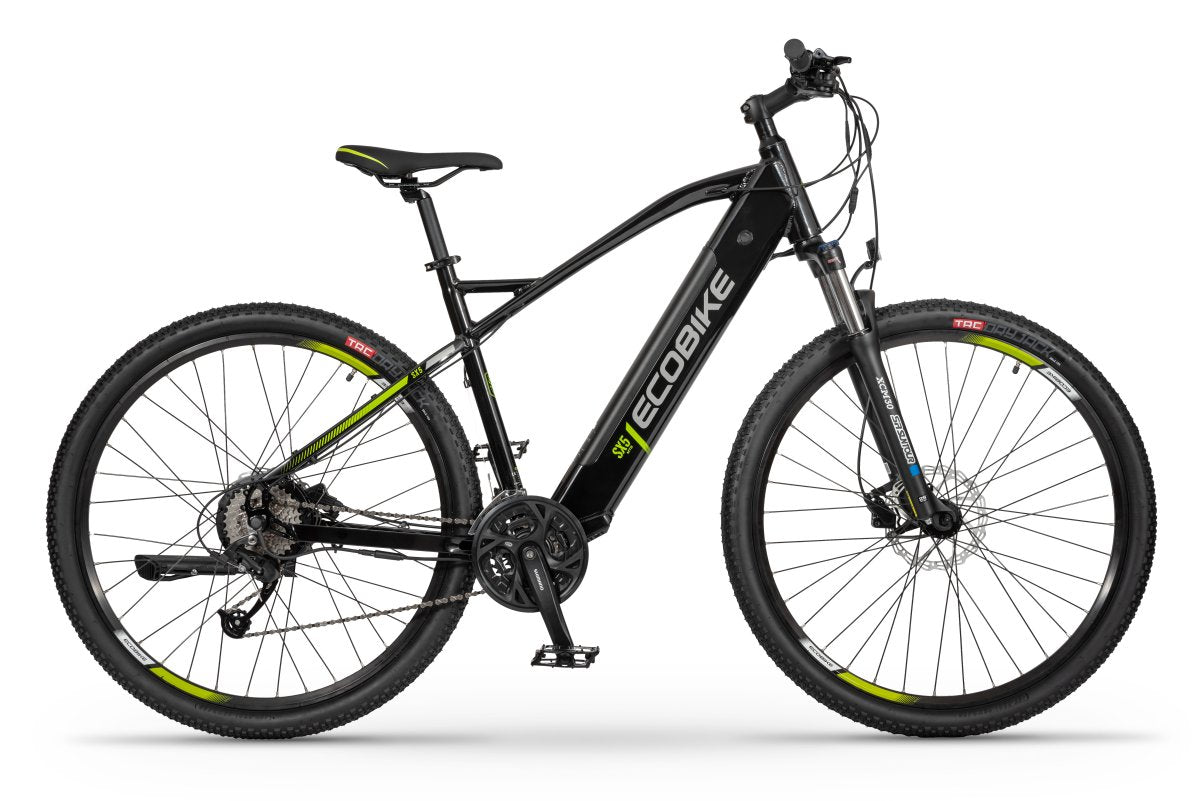

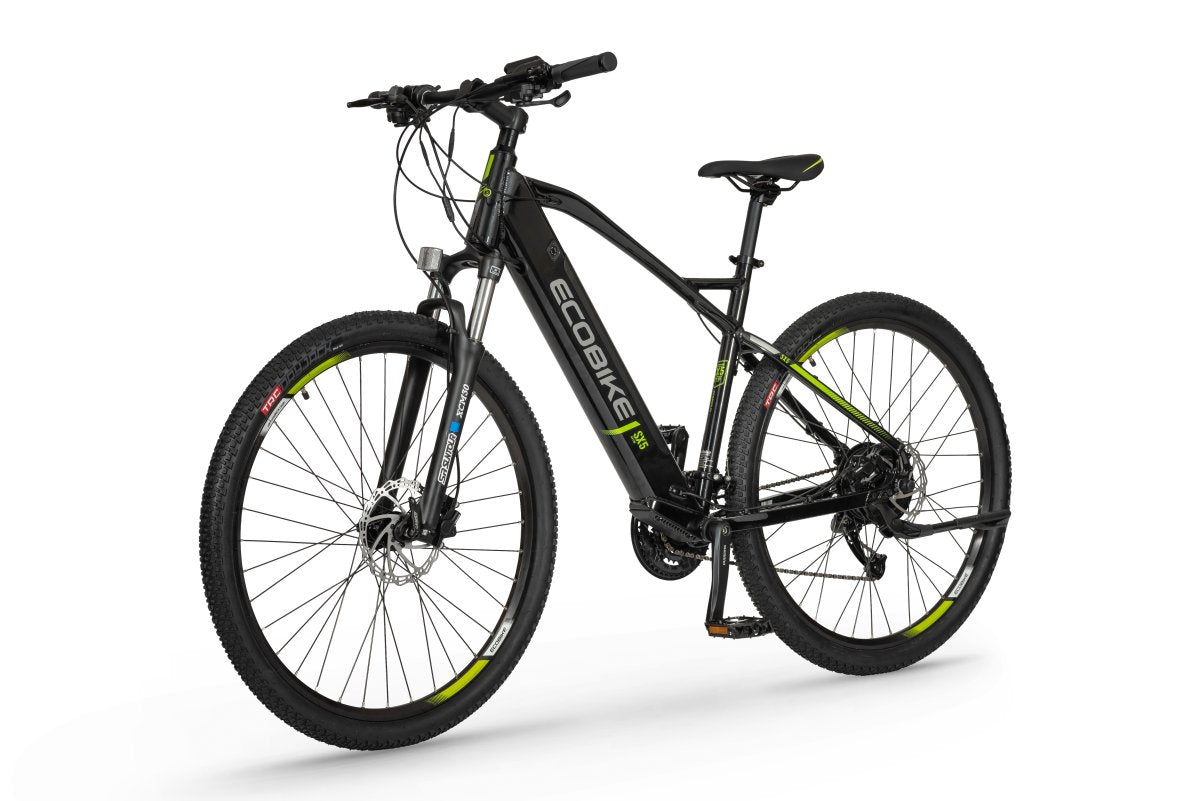

Ecobike SX5 Electric Mountain Bike
Ecobike SX5 Electric Mountain Bike
Couldn't load pickup availability
36V 14.5Ah/17.5 Ah
Free Shipping. Delivery To European Union countries 3-7 business days. Tracking information will be provided.
When the road becomes unpredictable trail, there is no room for unproven solutions.
You need a bike you can rely on.
Meet the SX. An e-bike MTB that you won't hesitate to go further than the others.
The Ecobike SX looks like it has been drawn by a simple movement, but its design is the result of complex work.

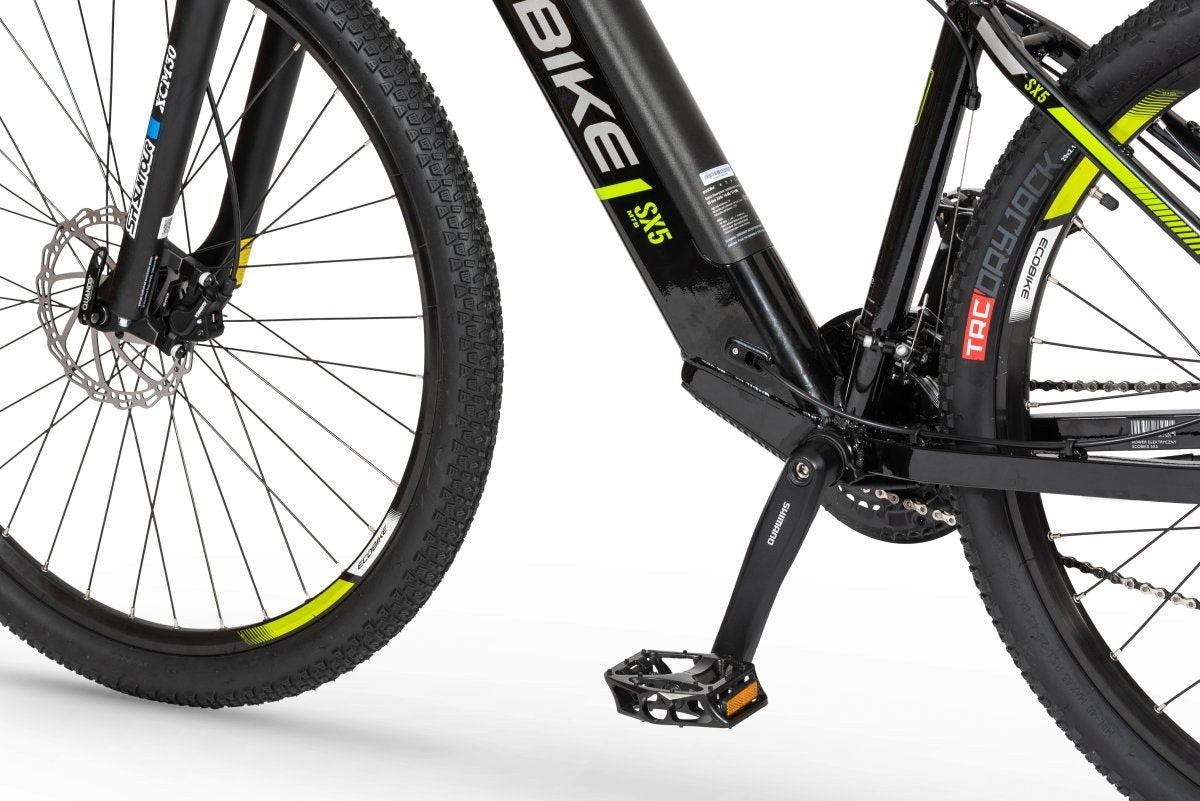

The frame has been designed in such a way that, while maintaining good ergonomics, it can accommodate the entire battery.
We have obtained a durable construction that holds the battery well, and inserting and removing it has become more convenient.
As always with Ecobike, you can configure your e-bike with batteries of different capacities: 14.5 Ah, 17,5 Ah.
Our proven electric system, which we have used on our bikes since years and we constantly improve, is responsible for a unique riding experience and reliable assistance.

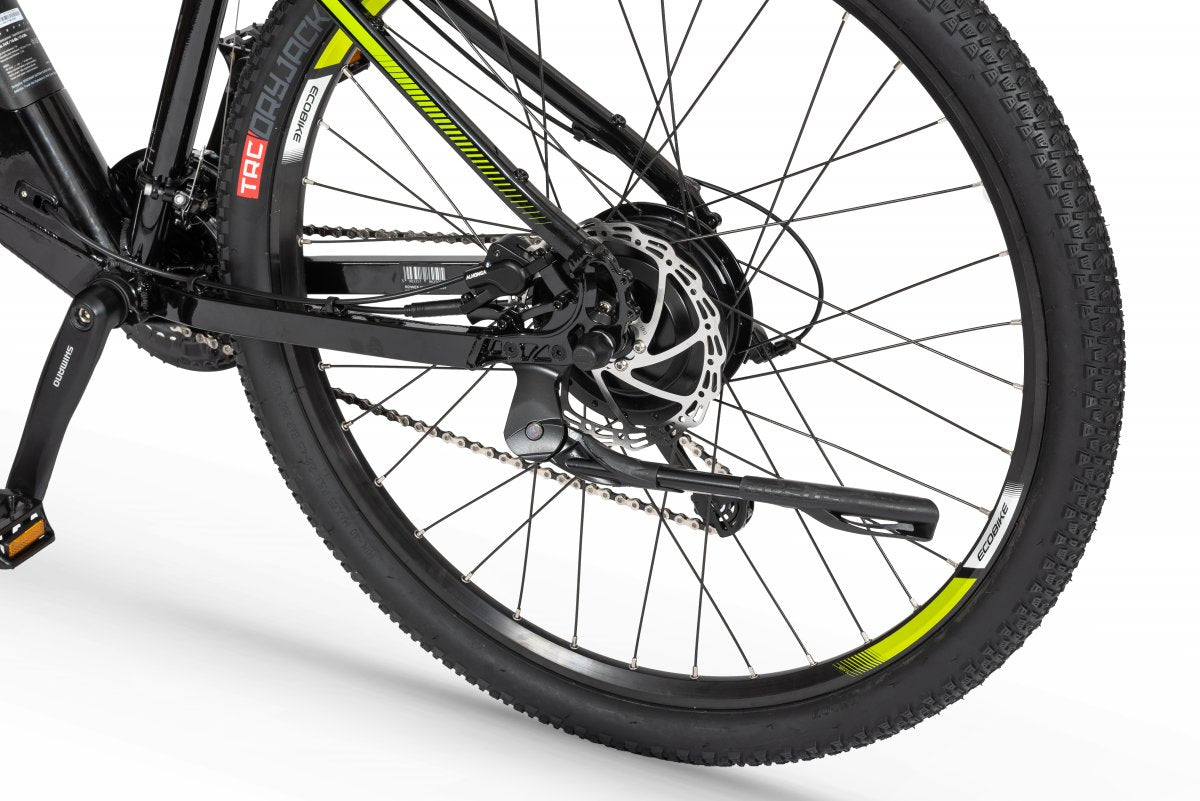

A powerful and maintenance-free Bafang motor that transfers power through the rear wheel will allow you to climb hills and will not give up even in difficult conditions.
With the modern controller, you will not have to worry about the drive system - it will take care of itself while you are enjoying the ride.

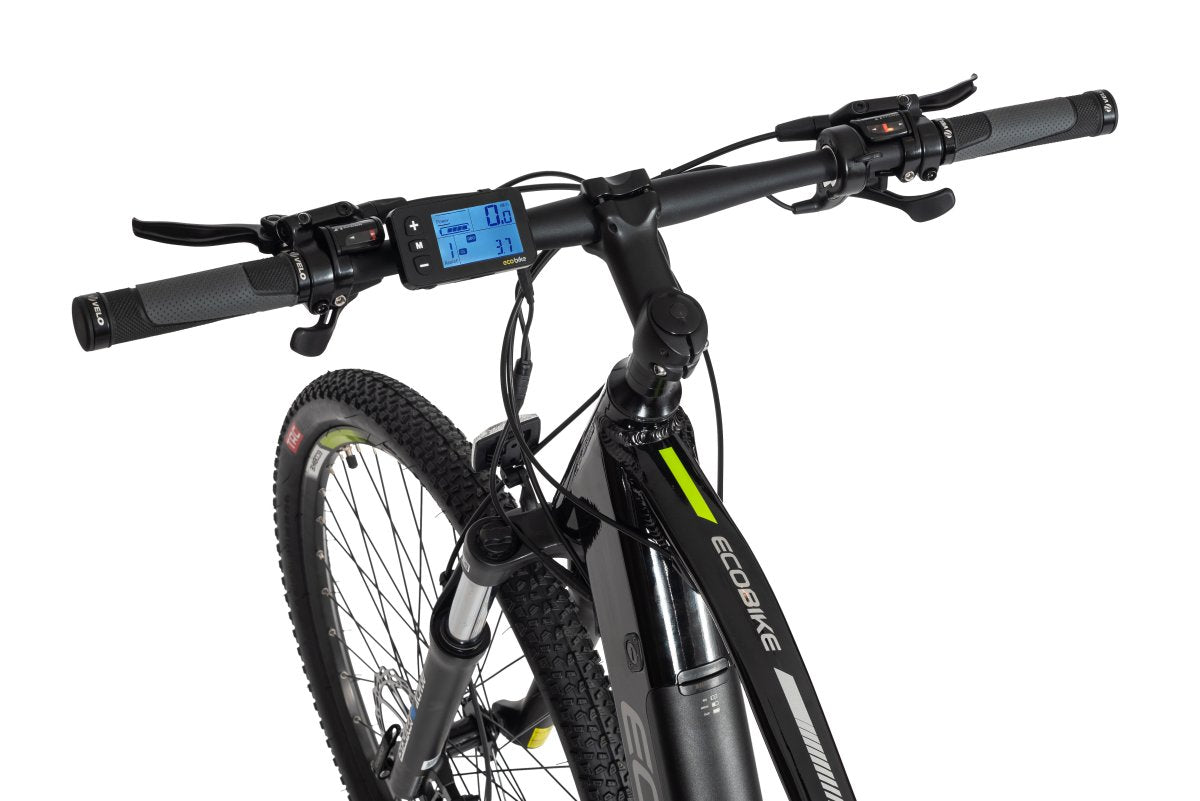

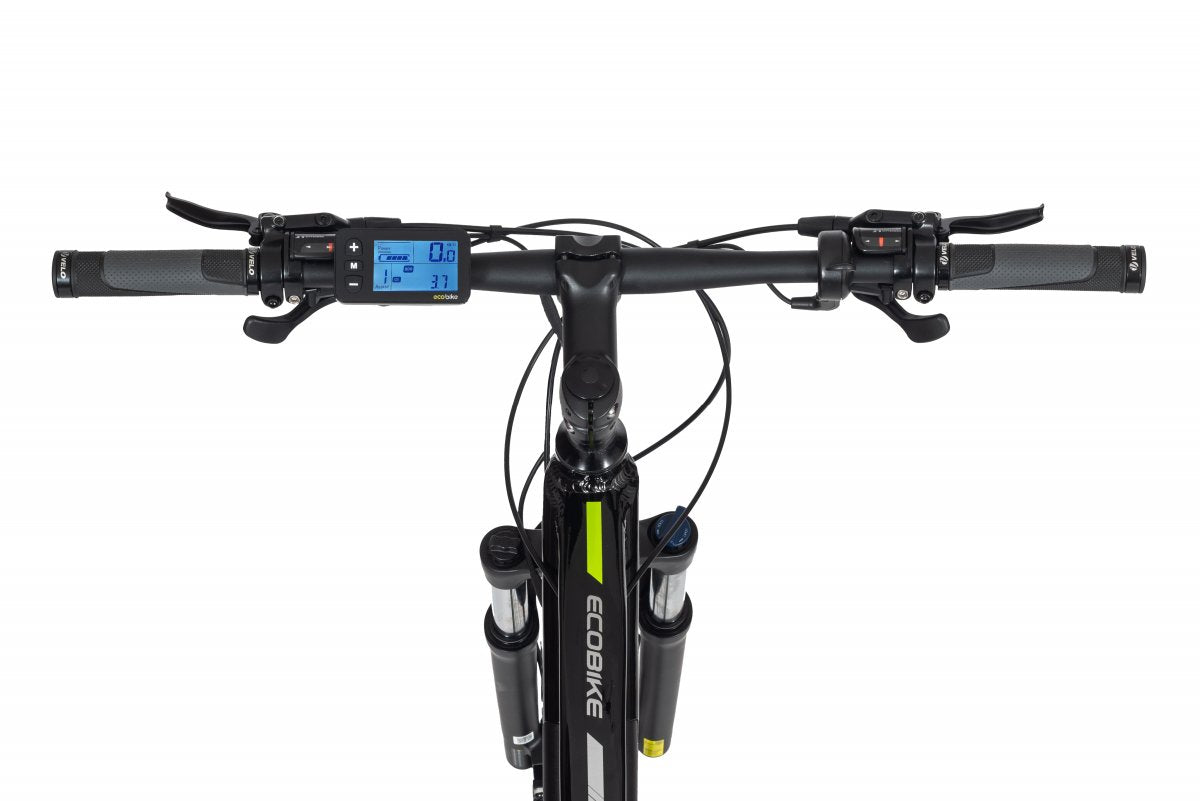

On the easy-to-use control panel you can read the most important parameters and choose the best settings for you.
We want to be sure that the SX will not let you down, so durable equipment is a must.

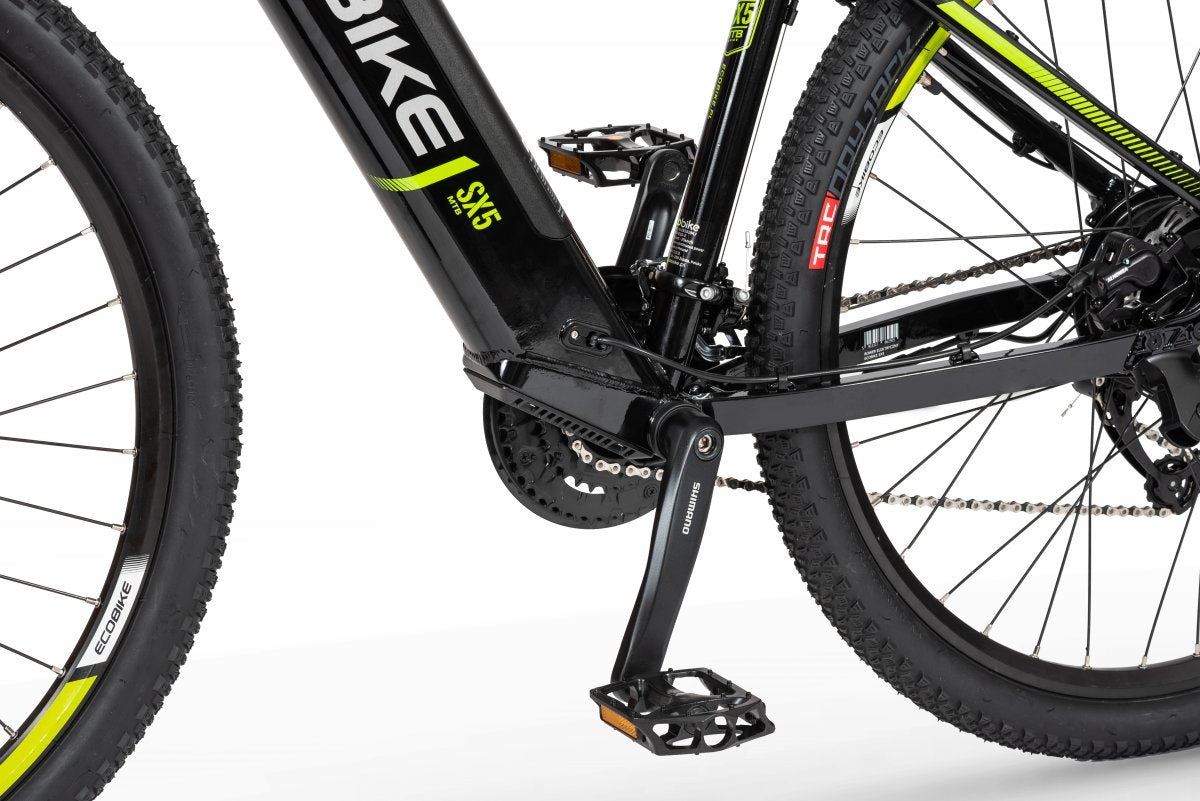

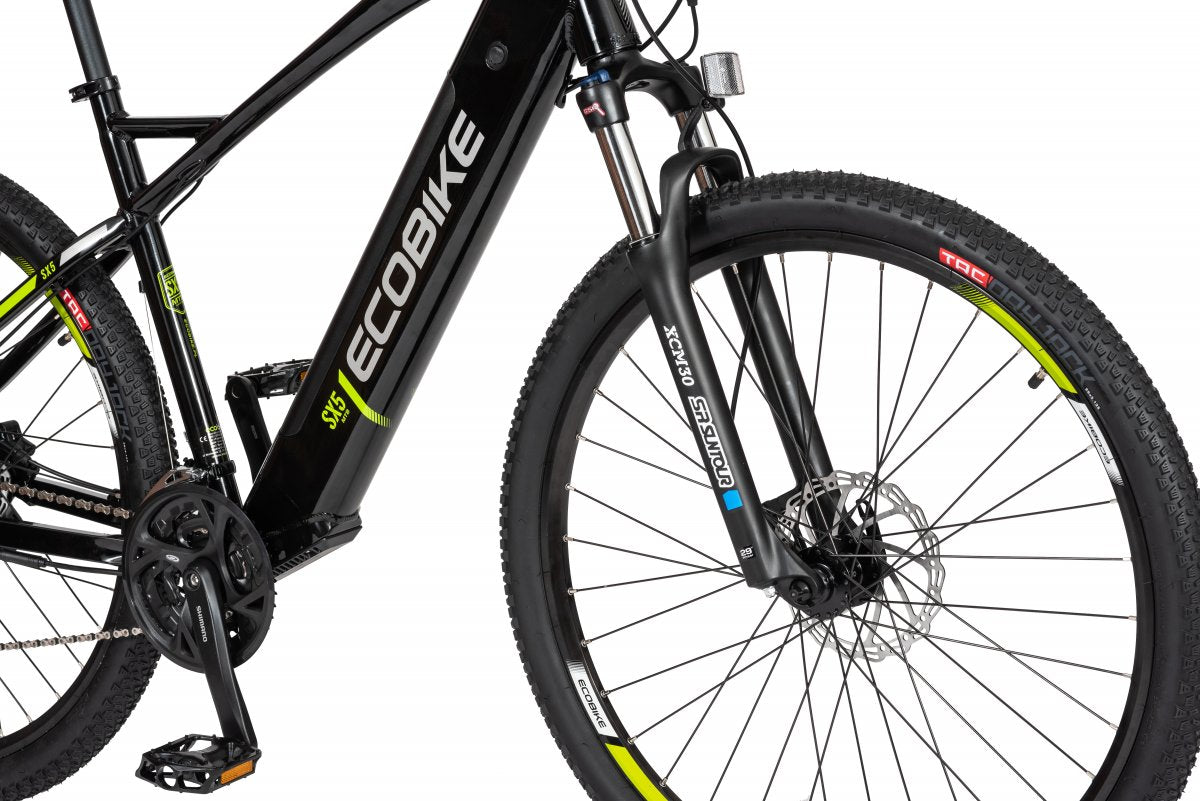

We used, among others high-quality Shimano Altus/Alivio derailleurs and hydraulic Alhonga brakes, excellent SunTour XCM fork and very strong tires TRC Dryjack.
We have created a new MTB model. Choose your favorite from among the three variants and go into unknown!
Geometry
A
Effective top tube length (mm)
610
B
Head tube (mm)
160
C
Seat tube length (mm)
508
D
Wheel base (mm)
1 124
E
Seat tube angle (degrees)
73
F
Headset angle (degrees)
70
Technical specification
Bicycle
Frame
20" hydroformed aluminum
Fork
SunTour XCM travel 100 mm
Wheel
29" reinforced three-chambered rims / Sapim spokes
Tires
29" x 2.1 TRC Dryjack
Front hub
KT-K68F
Rear Hub
not applicable
Handlebar
Zoom 720 mm 31.8
Handlebar stem
Promax 10° / 90 mm
Grip
Velo VLG-776
Brakes
Alhonga HJ-HT472 hydraulic
Front derailleur
Shimano Altus 3 speed
Rear derailleur
Shimano Alivio 9 speed
Grip
Shimano SL-M2000 Altus 3x9
Freewheel
SunRace 13-32T 9 speed
Bottom bracket
Feimin FP-B902W
Chain / Belt
KMC X9
Crank
Shimano FCM371 44 x 32 x 22
Pedals
Velo
Saddle
Velo VL-3363
Seat post
PROMAX SP-252 (27,2 mm x 350 mm)
Maximum load
125 kg
Weight
25,8 kg
Battery
Cells brand
LG / Greenway
Capacity Wh
522 - 630
Type
Li-ion
Voltage
36 V
Range
up to 140 km
Lifespan
700 charges
Charging time
7 - 9 hours
Capacity ah
14.5 - 17.5
E-bike system
Motor
BAFANG
Model
SWX02
Type
Rear hub motor
Voltage
36 V
Torque
45 N.m
Power
250 W
Speed
25 km/h in accordance with EU standard EN 15194
Display
Display model
C300U
Display brand
Ecobike
Display type
LCD monochromatic
